    Product Description
    Mark-10 TSA Manual Lever Operated Test Stand

    Force Gauge sold Separately
    750lb Capacity

    6.00" Maximum Travel

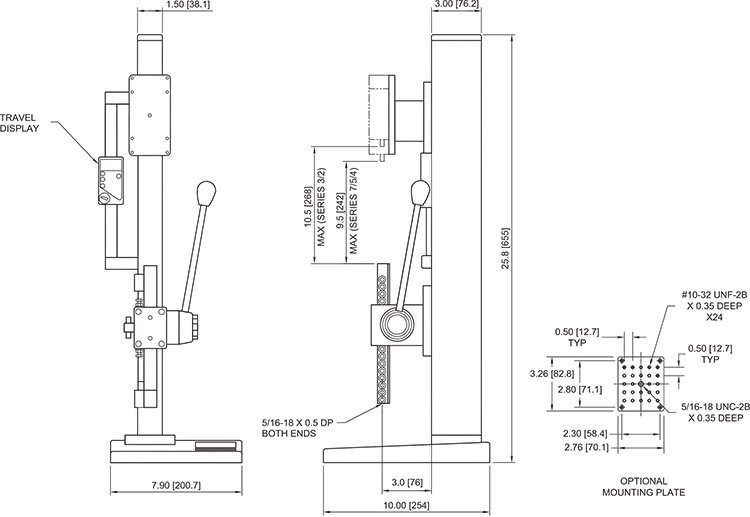

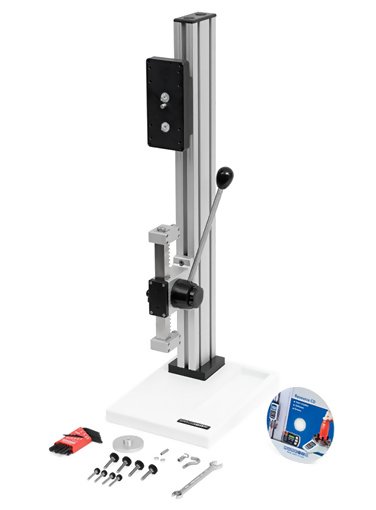

    Mar-10 TSA - Vertical

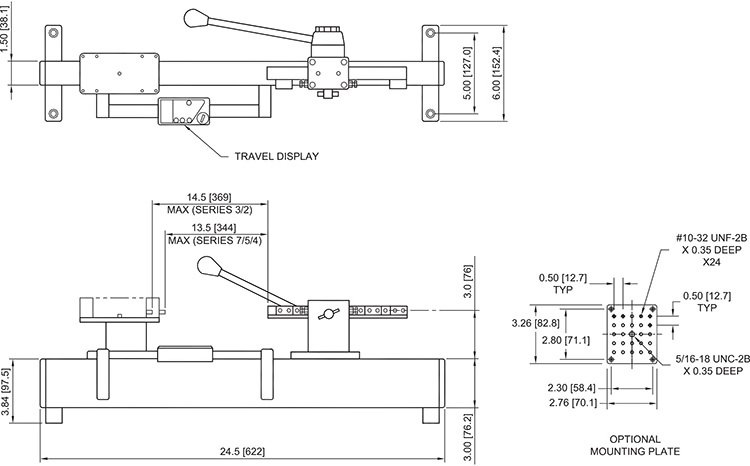

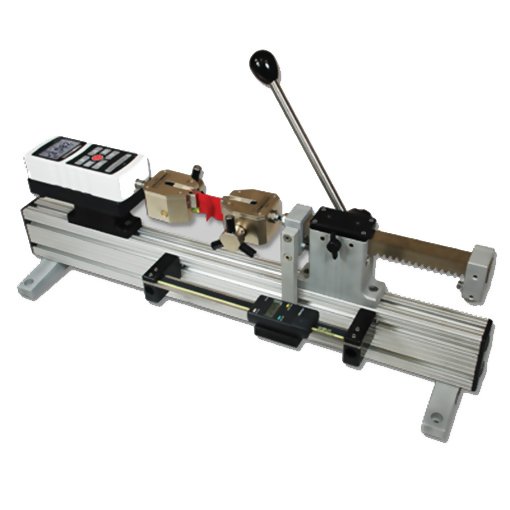

    Mark-10 TSAH - Horizontal

    The Mark-10 TSA Manual Lever Operated Test Stand is the perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The Mark-10 TSA Manual Lever Operated Test Stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

    *Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

    line
    Features
    line

    • Precision ground rack and pinion mechanism
    • Threaded holes for bench mounting

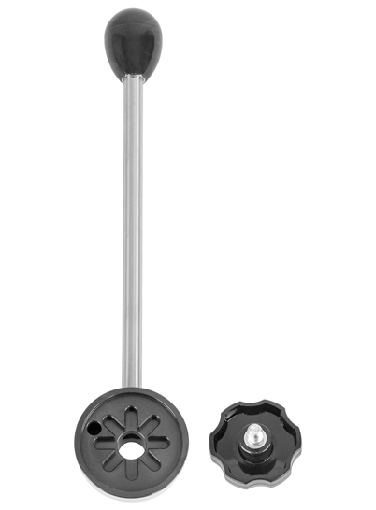

    • Loading lever can be positioned in 30° increments for ease of operation

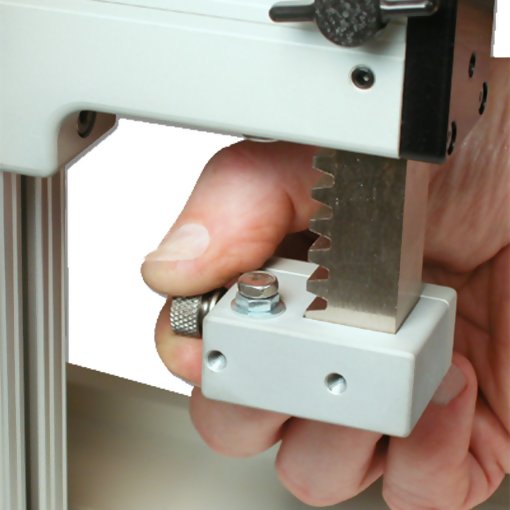

    • Adjustable travel stops
    • Adjustable wear plates for smooth, precise motion

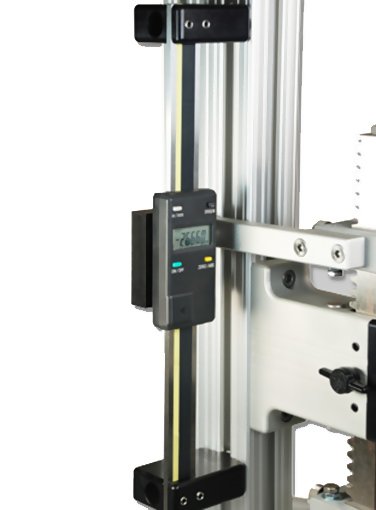

    • Optional digital travel display
    • Friction brake

    line
    Specifications
    line

    Maximum force750 lb
    Maximum travel, with stops3.75" [95 mm]
    Maximum travel, without stops6" [152 mm]
    Travel rate3" [76.2 mm]/lever revolution
    WeightTSA: 16 lb
    TSAH: 13 lb
    Warranty3 Years
