Mark-10 TSB100 Manual Lever-operated Test Stand, 100 Lb Capacity

See More Test Stands, Mechanical

Mark-10 TSB100 Manual Lever-operated Test Stand, 100 Lb Capacity

See More Test Stands, Mechanical
Price:
$945.00
    warrenty

    Product Description

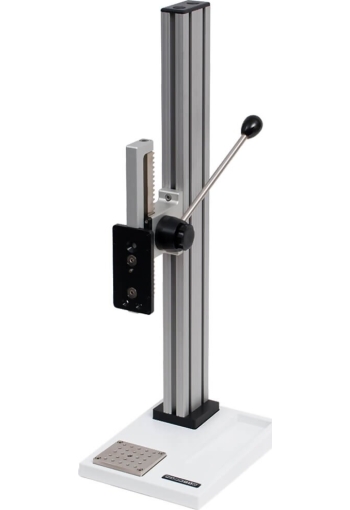

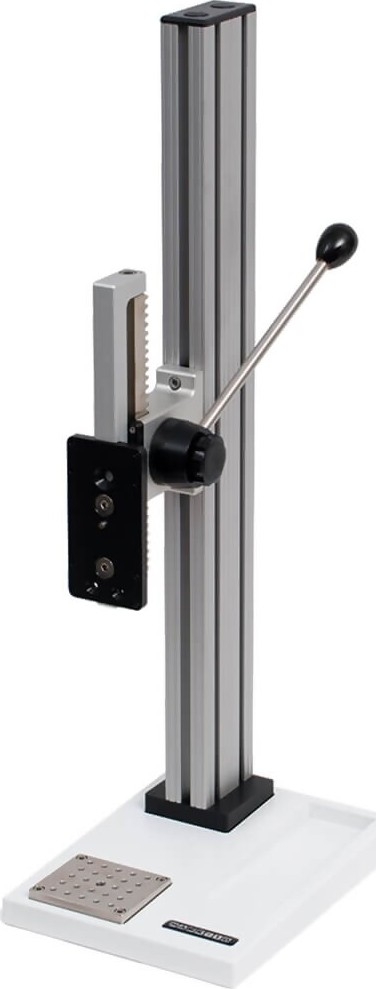

    Mark-10 TSB100 Manual Lever Operated Test Stand
    Force Gauge sold Separately
    100 lb Capacity
    6" (152 mm) Maximum Travel

    The Mark-10 TSB100 Manual Test Stand, Lever-operated is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.


    line
    Kit Contentsline

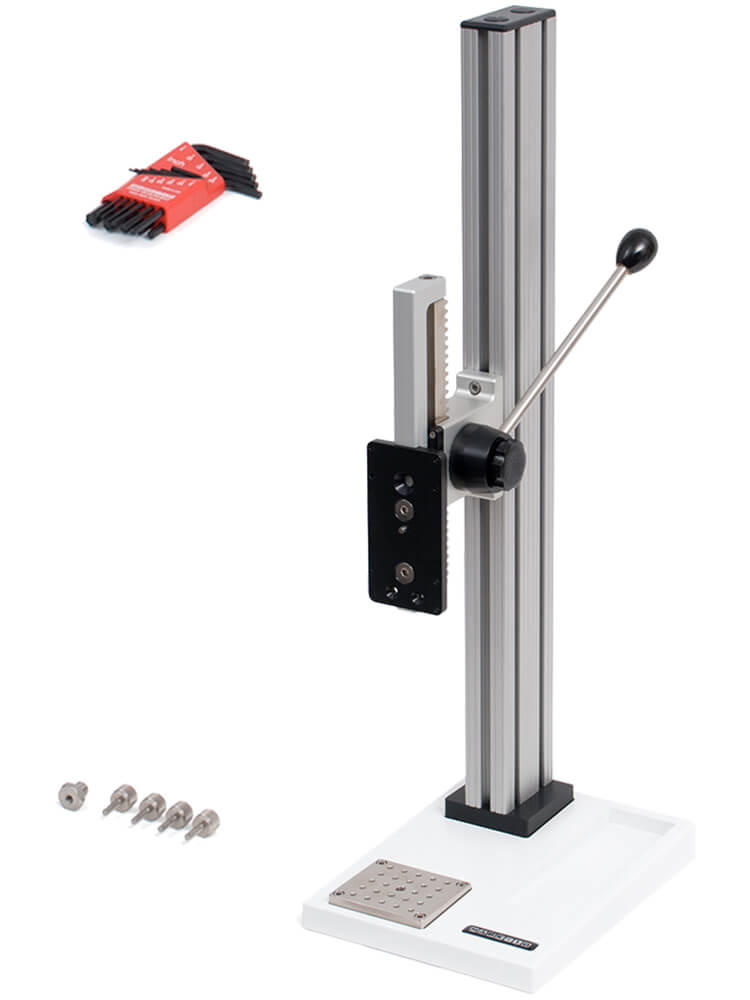

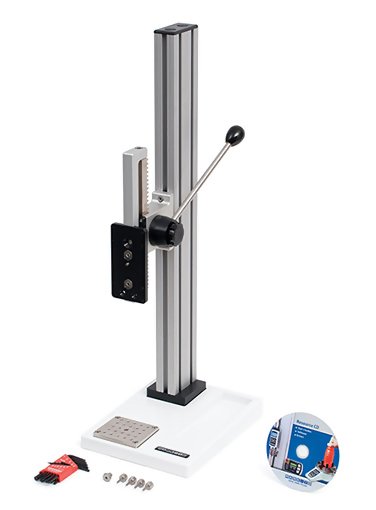

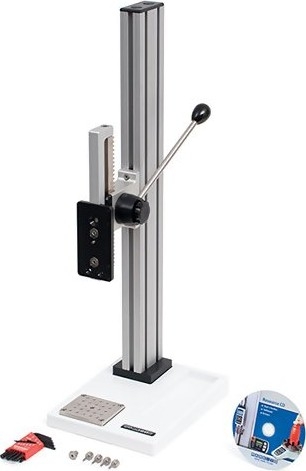

    • Mark-10 TSB100 Manual Test Stand
    • G1030 thread adapter, 5/16-18M to #10-32F
    • Allen wrench set
    • Thumb screw for force gauge (4 - four)


    line
    Features
    line

    • Compatible with all Mark-10 force gauges, accessories and grips

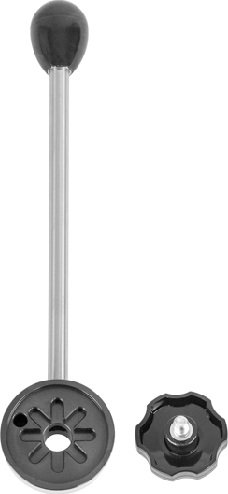

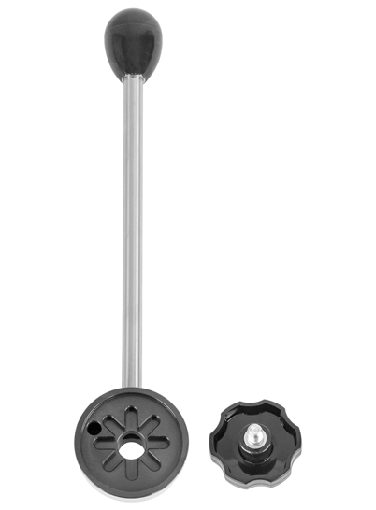

    • Loading lever can be positioned in 30° increments for ease of operation
    • Mounting holes for bench mounting

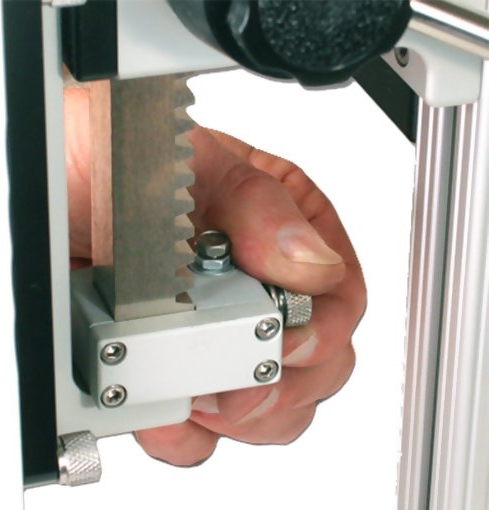

    • Optional adjustable travel stops

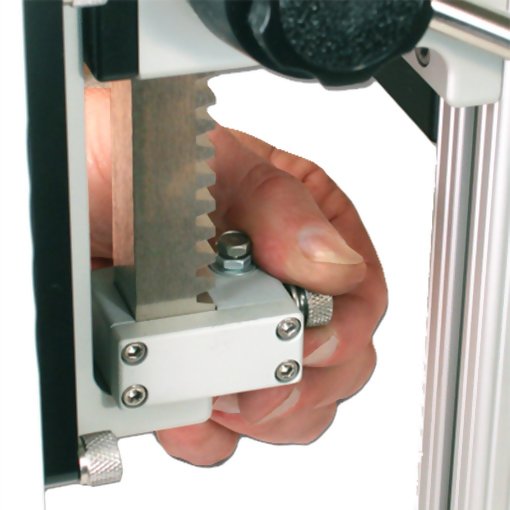

    • Precision ground rack for smooth precision motion

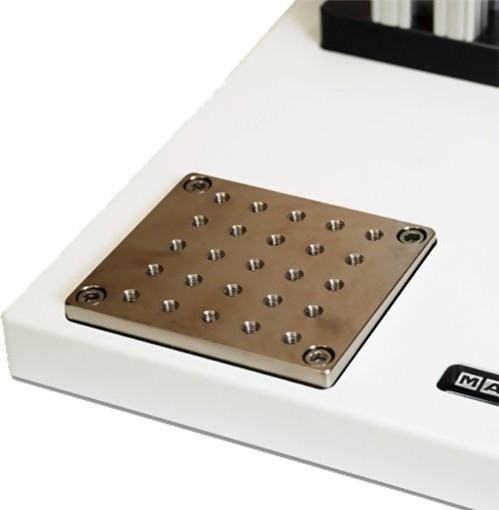

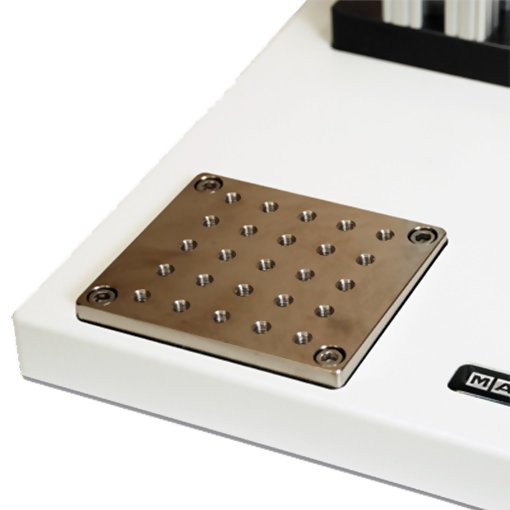

    • Removable base plate with 25 #10-32 UNF holes for fixture mounting
    • Low force friction brake


    line

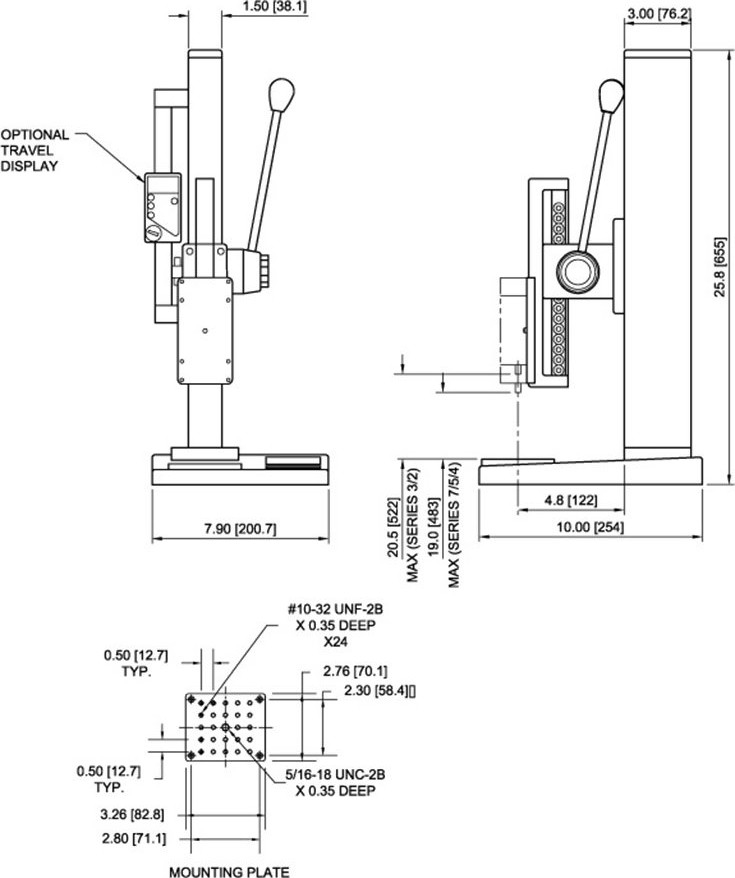

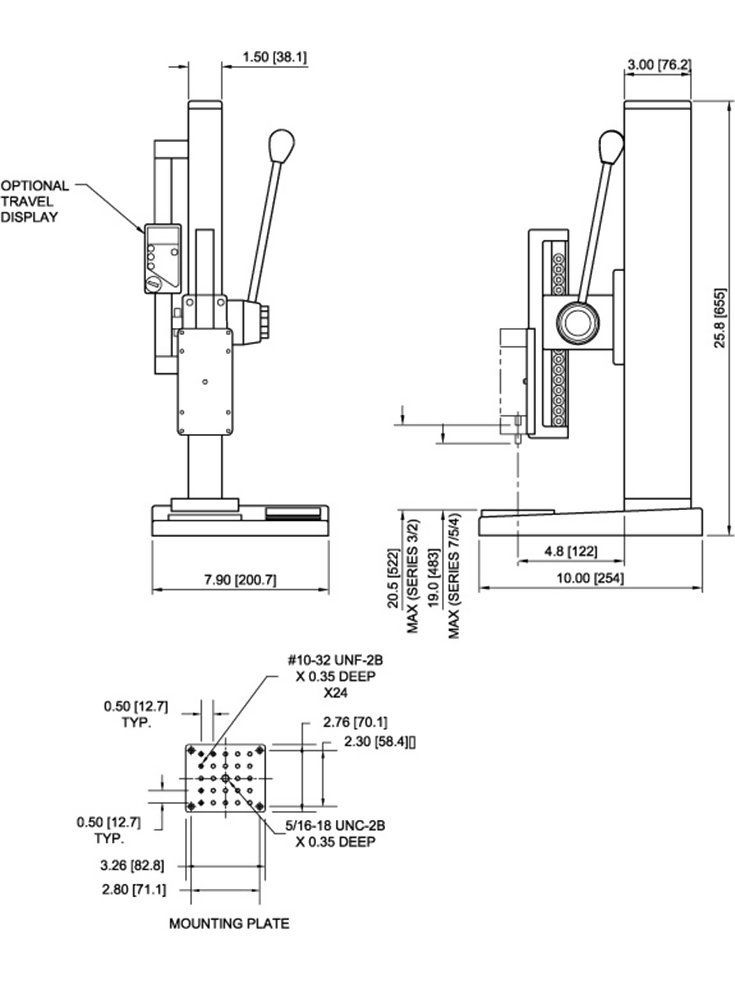

    Specifications
    line

    Maximum force
    100 lbF [500 N]
    Maximum travel, with stops (optional)
    3.75" [95 mm]
    Maximum travel, without stops 6" [150 mm]
    Travel rate 3" [76.2 mm]/lever revolution


    line
    PC Connection
    line

    Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC.

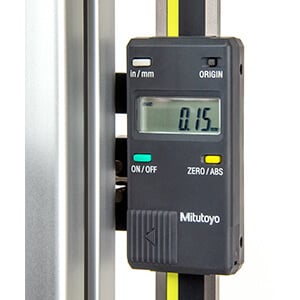

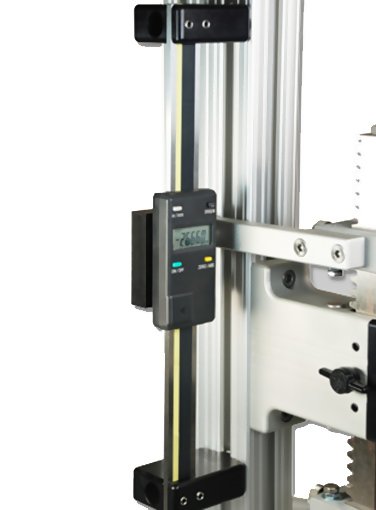

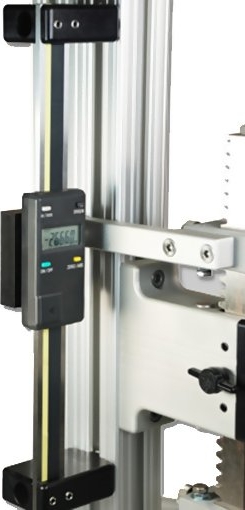

    If the digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:

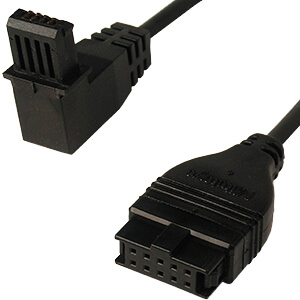

    • 09-1066 cable, Mitutoyo

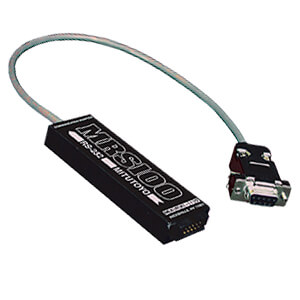

    • MRS100A converter, Mitutoyo to RS-232

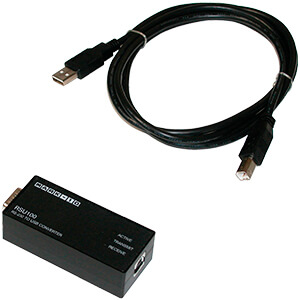

    • RSU100 converter, RS-232 to USB

    Travel display connection sequence:

    1. Travel Display, Mitutoyo
    1. 09-1066 cable, Mitutoyo
    1. MRS100A converter, Mitutoyo to RS-232
    1. RSU100 converter, RS-232 to USB
    1. YOUR PC


    line
    Downloads
    line

    Mark-10 TSB100 Manual Test Stand - Data Sheet
    Mark-10 TS Series Force Test Stands - Instruction Manual

    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    Models Price
    $945.00
    Recommended Accessories PRICE
    $942.00
    $216.00
    $132.00
    $264.00
    $462.00
    $336.00
