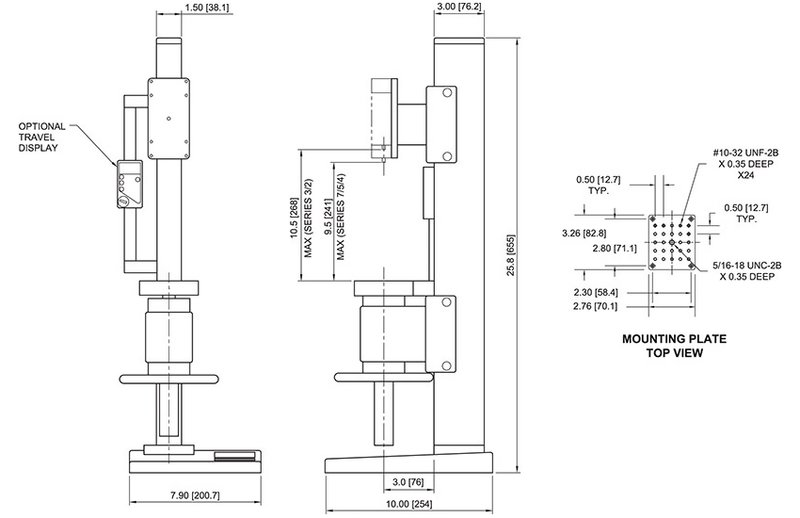

Mark-10 TSC - Vertical

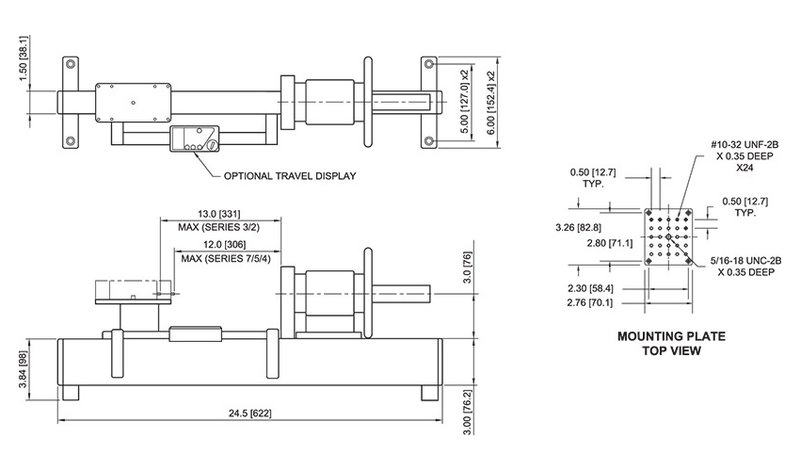

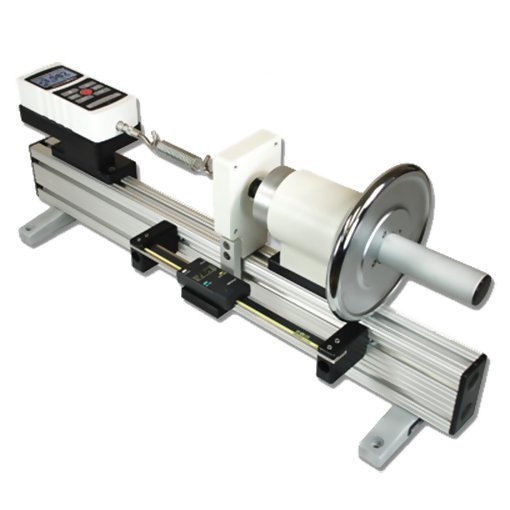

Mark-10 TSCH - Horizontal

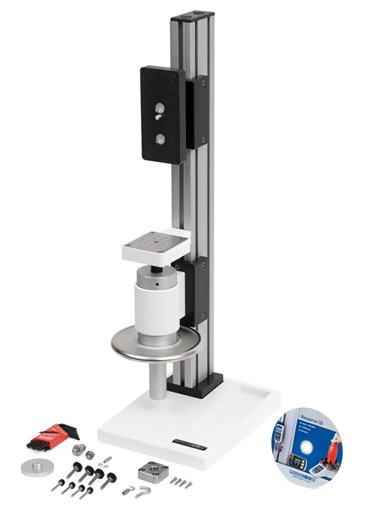

The Mark-10 TSC High Capacity Manual Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.

A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The Mark-10 TSC High Capacity Manual Test Stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

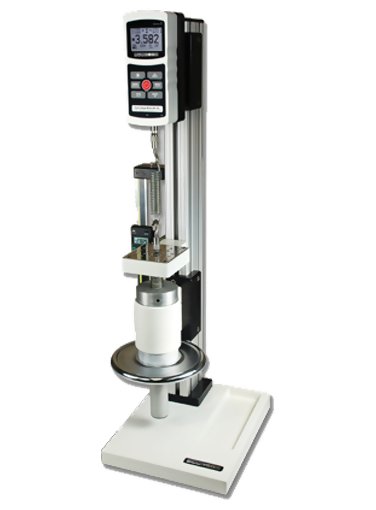

*Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

Features

• Mounting holes for bench mounting

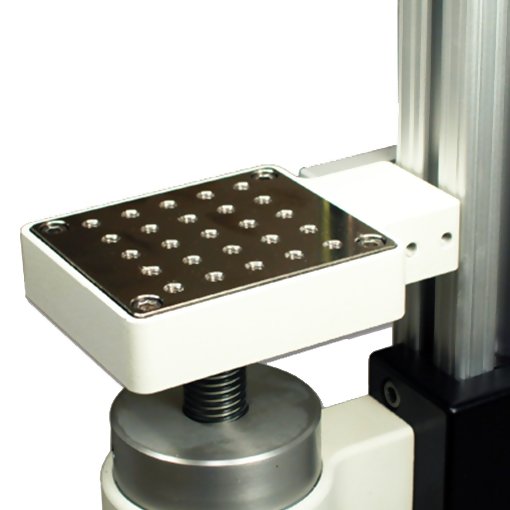

• Loading table with 25 #10-32 UNF holes for fixture mounting
• Precision Acme screw and nut

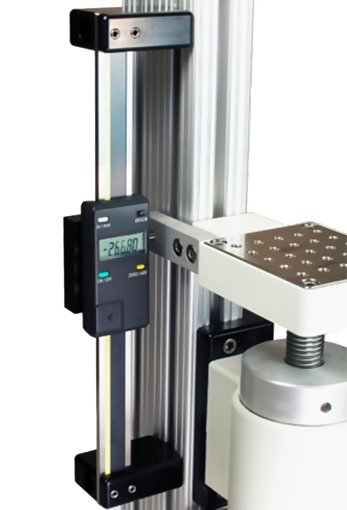

• Optional digital travel display

Specifications
