Mark-10 TSF High Capacity Manual Test Stand

See More Test Stands, Mechanical

Mark-10 TSF High Capacity Manual Test Stand

See More Test Stands, Mechanical
Price:
$2,500.00
    warrenty

    Product Description

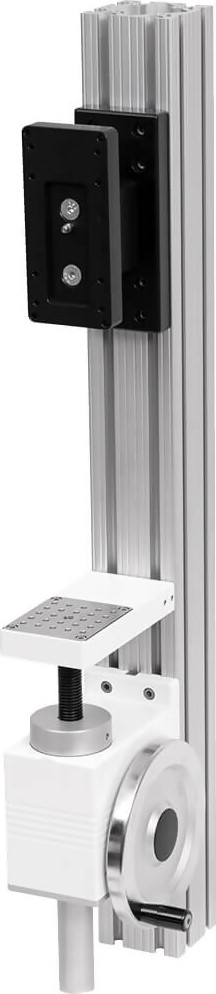

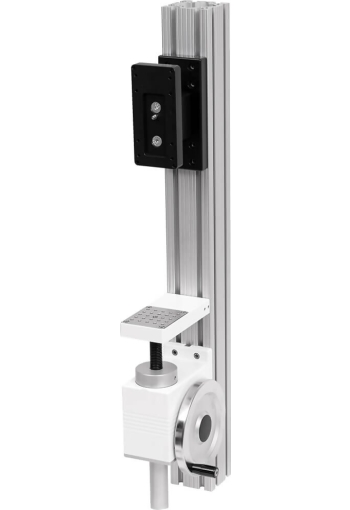

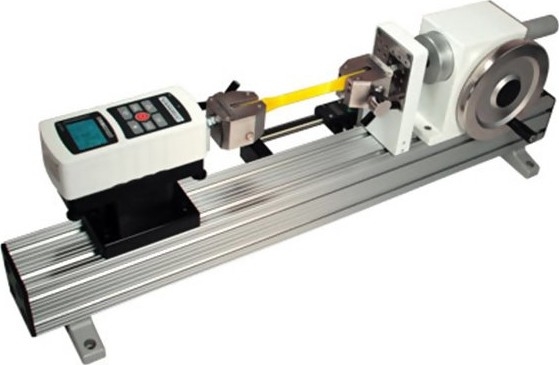

    Mark-10 TSF High Capacity Manual Test Stand
    Force Gauge sold Separately
    1,000lb Capacity

    4.00" (102 mm) Maximum Travel

    The Mark-10 TSF High Capacity Manual Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lb (5,000 N) of push or pull force.

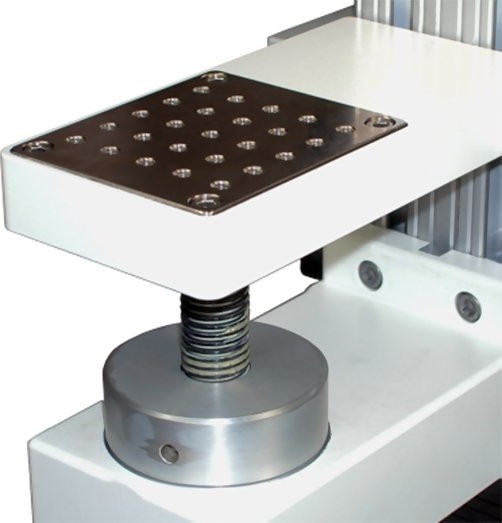

    The stand features a large side mounted hand wheel requiring minimal user effort and a rigid 3" x 3" column. A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting.

    *Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately


    line

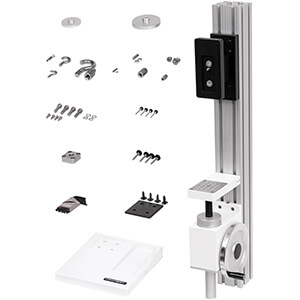

    Kit Contents
    line

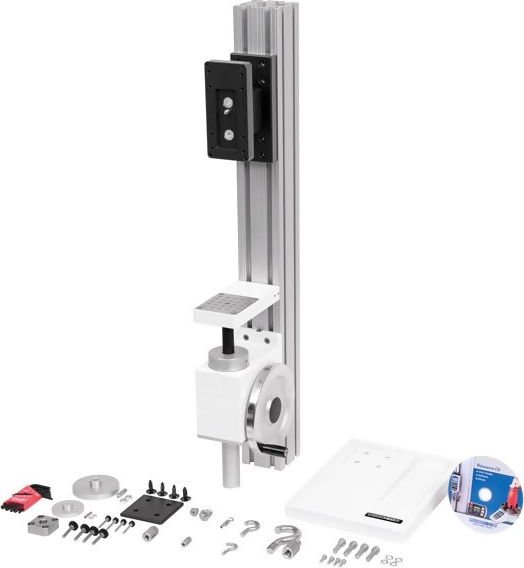

    • Mark-10 TSF High Capacity Manual Test Stand
    • G1028 small hook
    • G1038 medium hook
    • G1035 large hook
    • G1042 extra large hook
    • G1009 compression plate, 2" dia.
    • G1009-1 compression plate, 3" dia.
    • G1030 thread adapter, 5/16-18M to #10-32F
    • G1041 thread adapter, 5/16-18M to #1/2-20M
    • #10-32 stud with jam nuts
    • 1/2-20F adapter plate
    • Thumb screw for force gauges with 0.12 – 500 lbF capacities (4) Thumb screw for force gauges with 1,000 – 2,000 lbF capacities
    • Allen wrench set


    line
    Features
    line

    • Compatible with all Mark-10 force gauges, accessories and grips
    • Loading table with 25 #10-32 UNF holes for fixture mounting
    • Smooth hand wheel operation


    line
    Specifications
    line

    Capacity1,000lbs (4.5Kn)
    Stroke4.00" (102 mm)
    Travel Rate0.013" (0.34 mm)/wheel rev

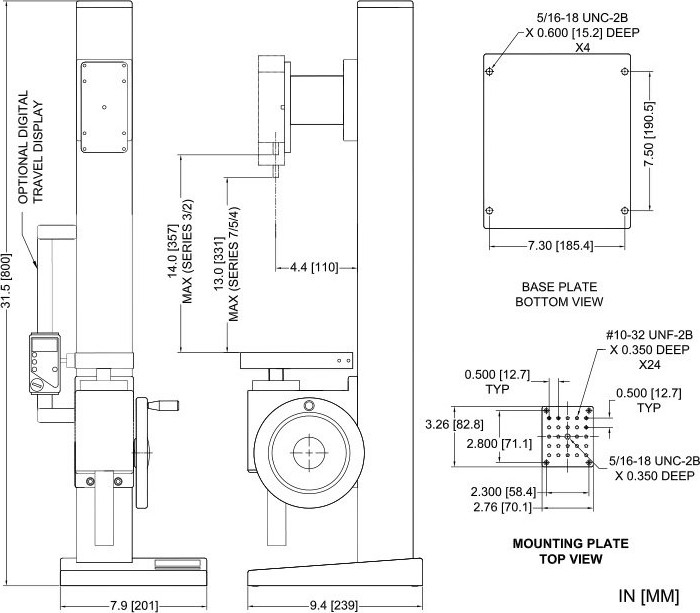

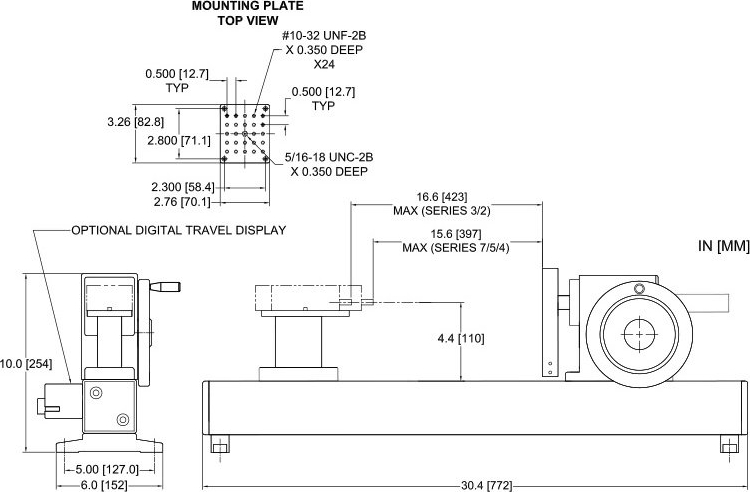

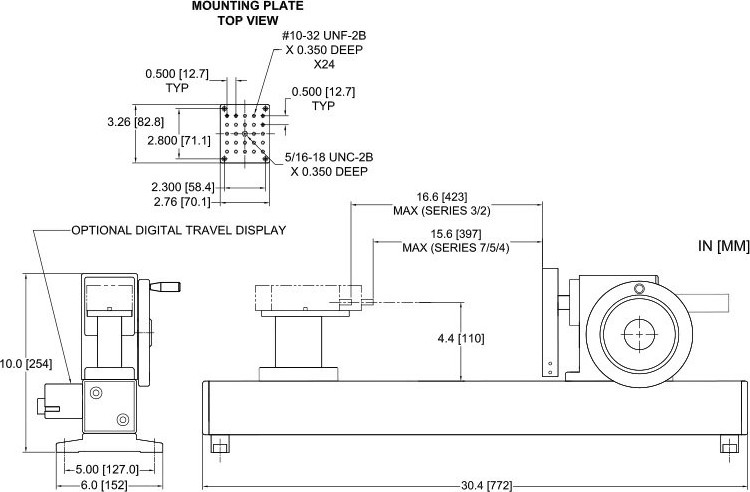

    DimensionsRefer to dimensions above


    line
    PC Connection
    line

    Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC.

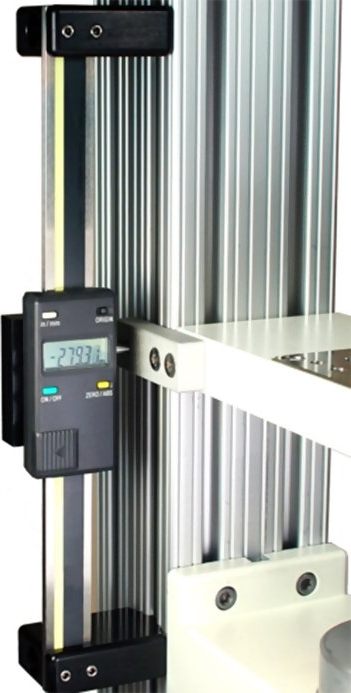

    If the digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:

    • 09-1066 cable, Mitutoyo
    • MRS100A converter, Mitutoyo to RS-232
    • RSU100 converter, RS-232 to USB

    Travel display connection sequence:

    1. Travel Display, Mitutoyo
    1. 09-1066 cable, Mitutoyo
    1. MRS100A converter, Mitutoyo to RS-232
    1. RSU100 converter, RS-232 to USB
    1. YOUR PC


    line
    Related Products
    line

    Series-7i
    Professional Force and Torque Indicator

    • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
    related

    line

    Series-5i
    Advanced Force/Torque Indicator

    • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
    related

    line

    Series-3i
    Force and Torque Indicator

    • Interchangeable force and torque sensors through Plug & Test™technology
    • USB data output
    related


    line
    Downloads
    line

    Series TSF Force Test Stands - Data Sheet
    Series TSF Force Test Stands - Instruction Manual

    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    Models Price
    $2,500.00
    $2,500.00
    Recommended Accessories PRICE
    $1,068.00
    $294.00
    $120.00
