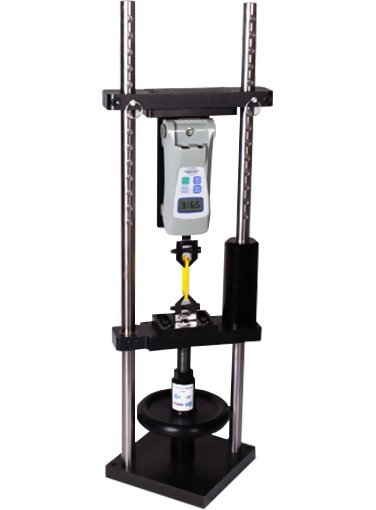

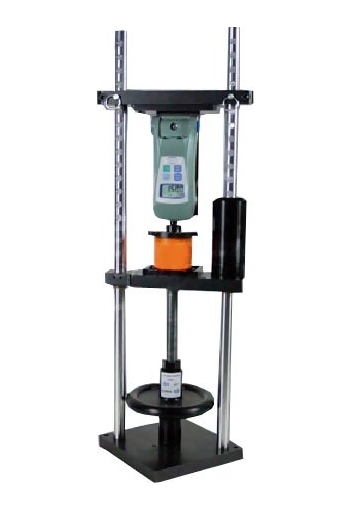

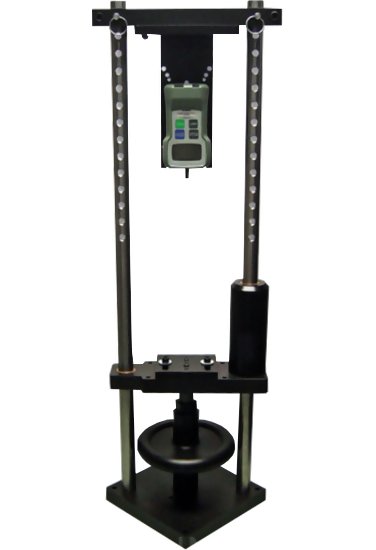

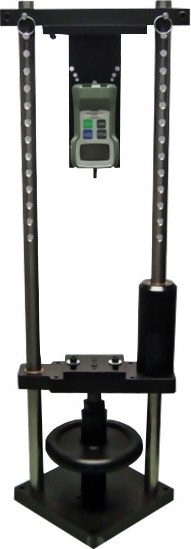

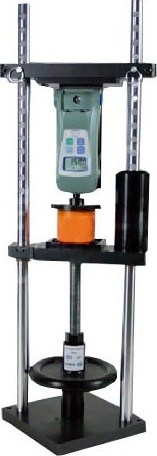

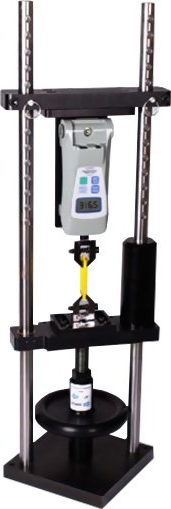

The Shimpo FGS-1000H is designed for convenient testing in both TENSION and COMPRESSION, the FGS-1000H is easy to set-up and use.

With its ability to mount the FGV-1000HXY (1000 lbs, 2500N, 500KG) capacity digital force gauge, and all FGE–X series force gauges, this system is a great fit for most force testing applications.

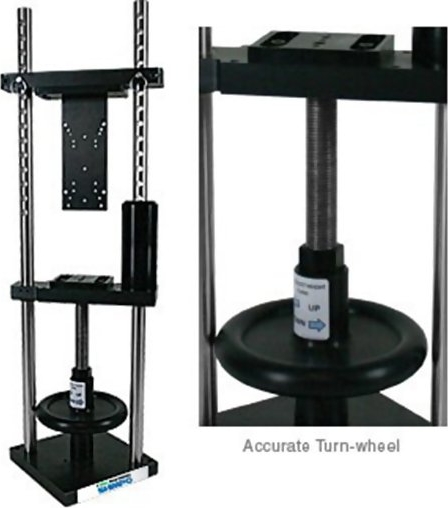

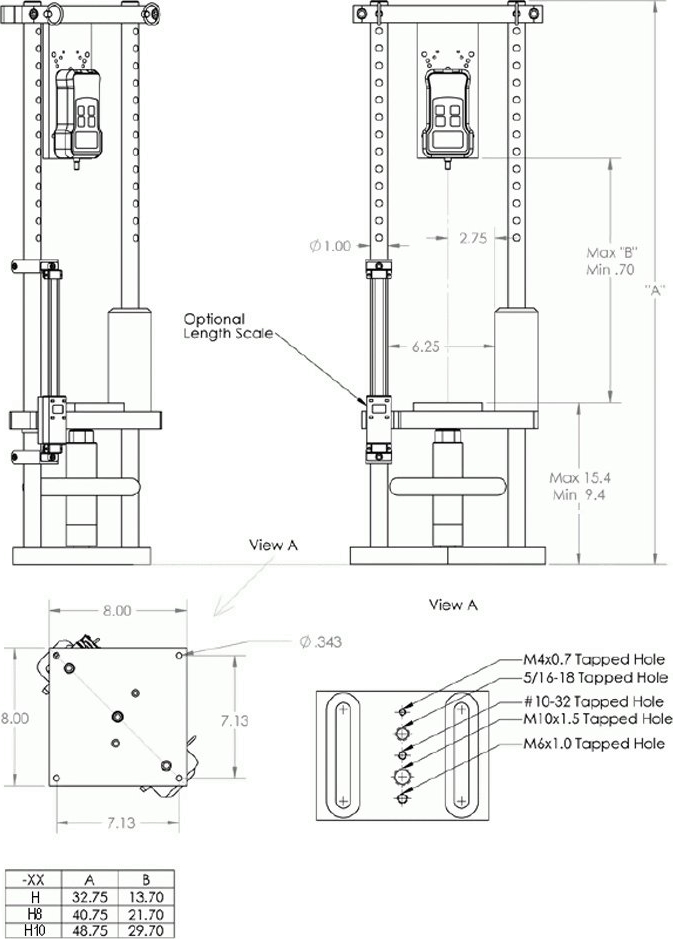

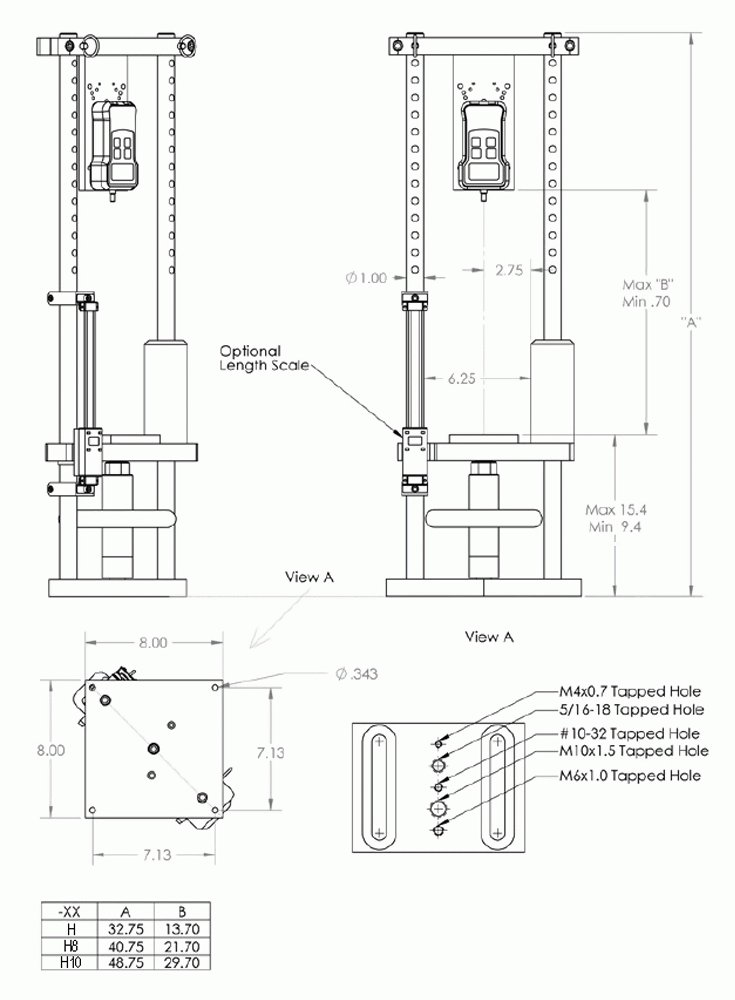

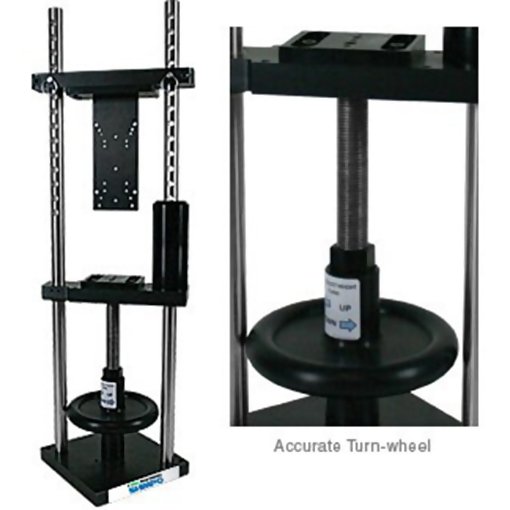

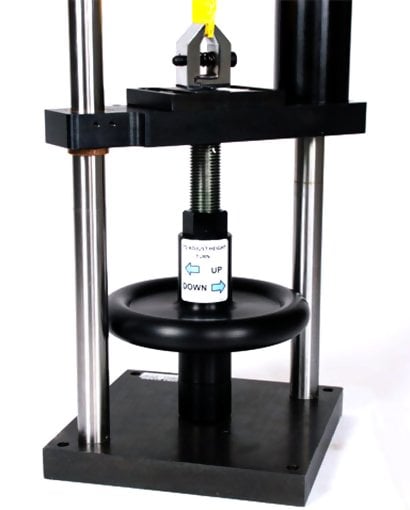

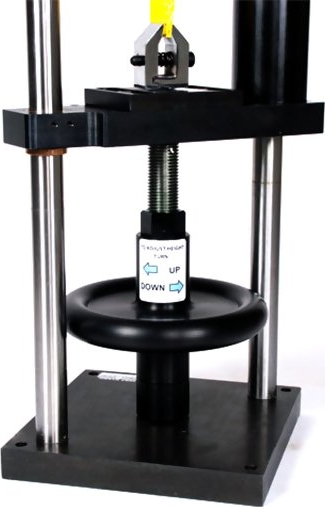

A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The Shimpo FGS-1000H heavy duty construction provides repeatable and reliable testing for many years. The FGS-1000H features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter.

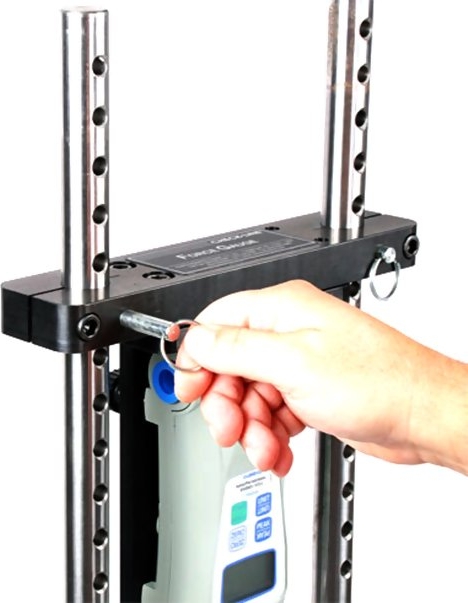

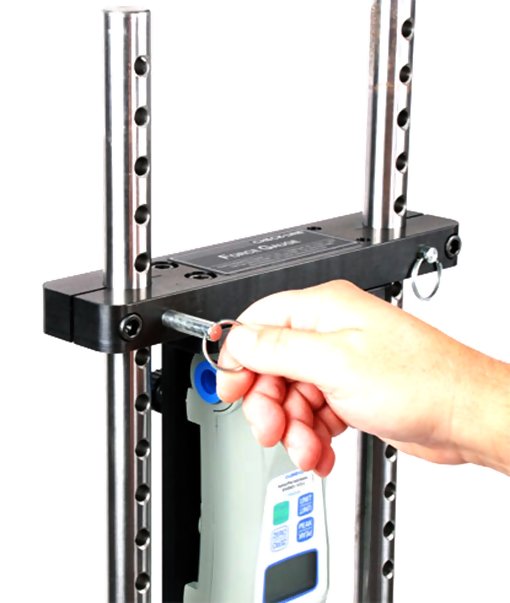

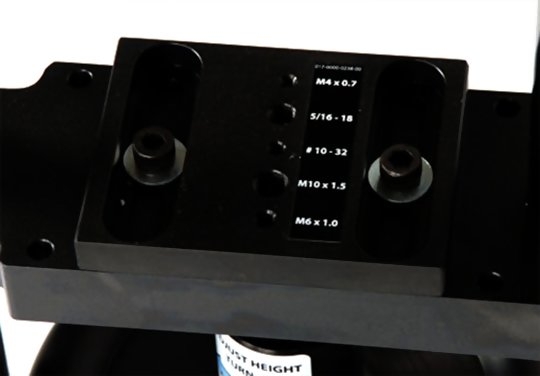

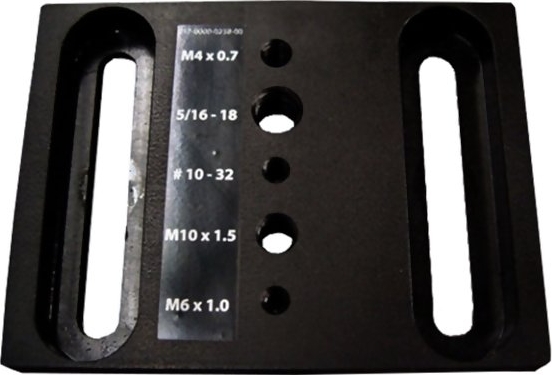

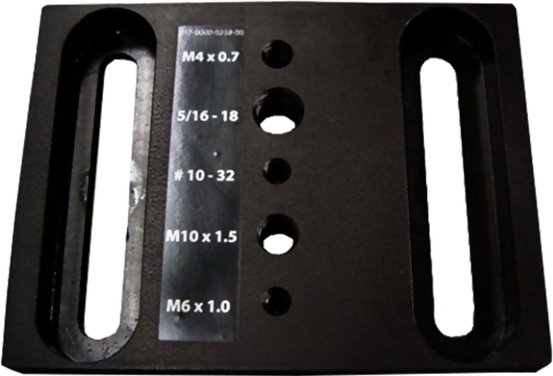

With counter sunk (force gauge) mounting holes, a self aligning, pre-tapped sliding base plate for securely attaching test parts, the FGS-1000H is a welcome alternative for utilizing existing and new force gauges, grips, attachments and accessories.

Specifications

Related Products

FGE-HX - FGV-HX High Capacity Digital Force Gauge Accuracy ± 0.2% Heavy-duty load sensor

FGE - FGV Hand-held Digital Force Gauge Includes Traceable Calibration Certificate Accuracy ± 0.2% User-selected units of Pounds, Kilograms or Newtons

Downloads

Shimpo FGS-1000H Manual Test Stand - Instruction Manual
