    Product Description

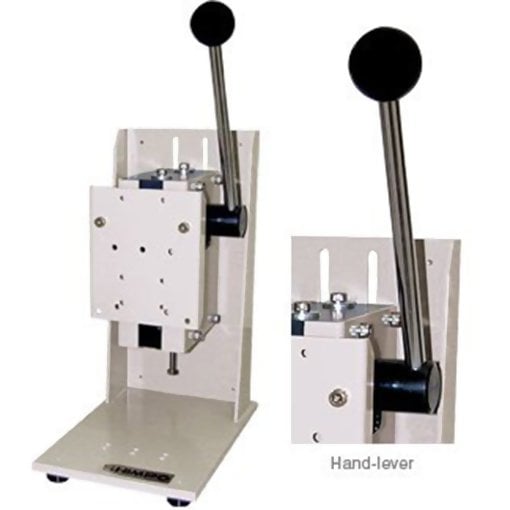

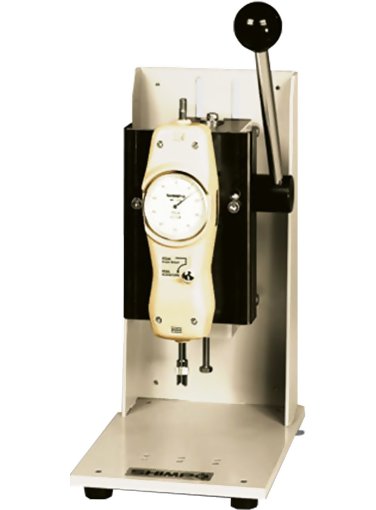

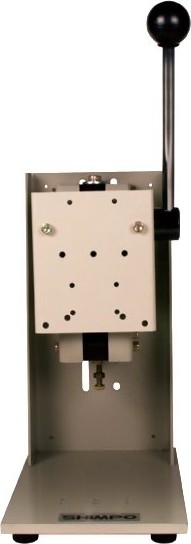

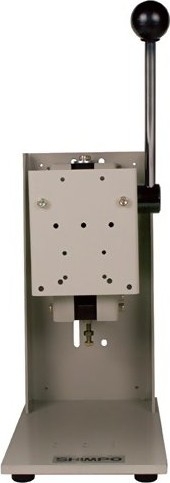

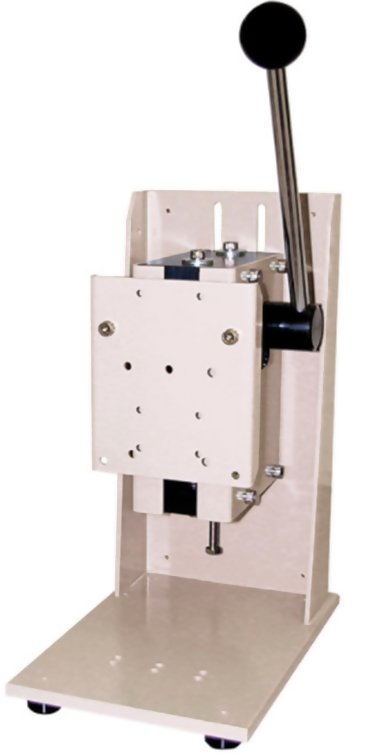

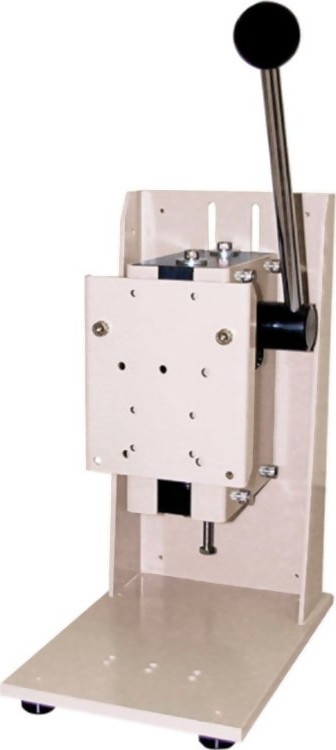

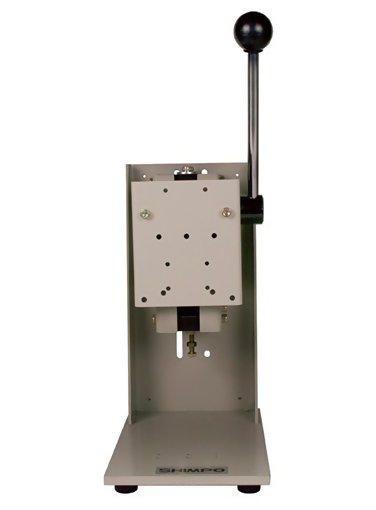

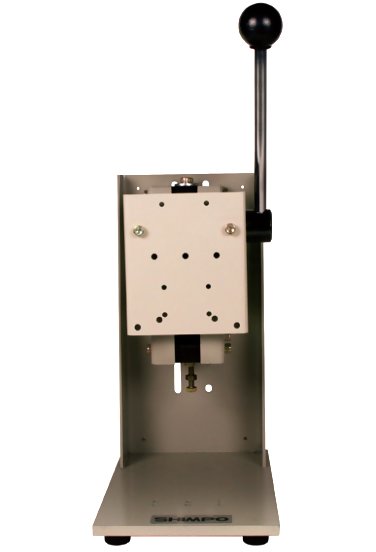

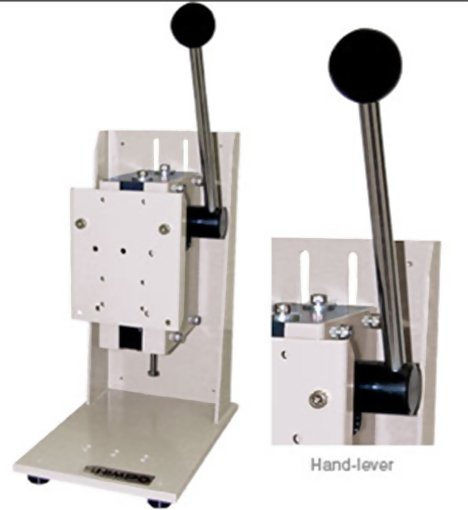

    Shimpo FGS-50S Manual Lever Test Stand
    Force Gauge sold Separately
    50lb Capacity
    2" Maximum Travel

    Capacity: 50 lbs (22 kg)

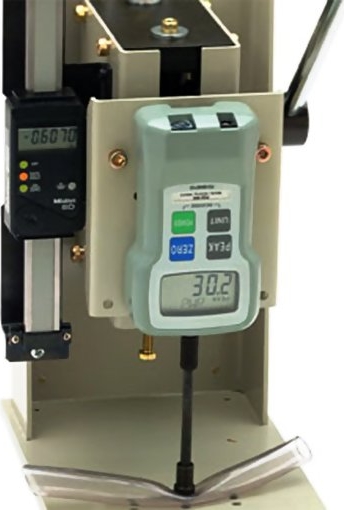

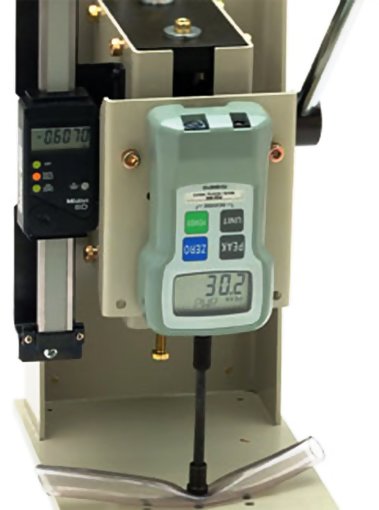

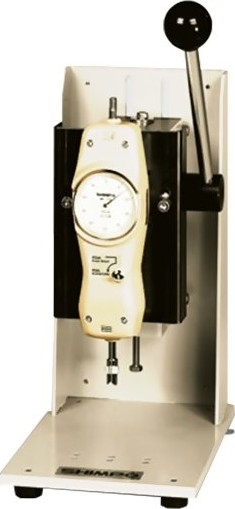

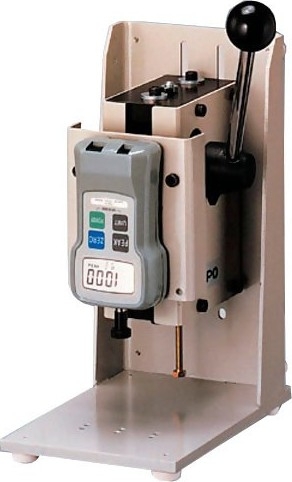

    Shown with FGE Series Force Gauge


    line
    Features
    line

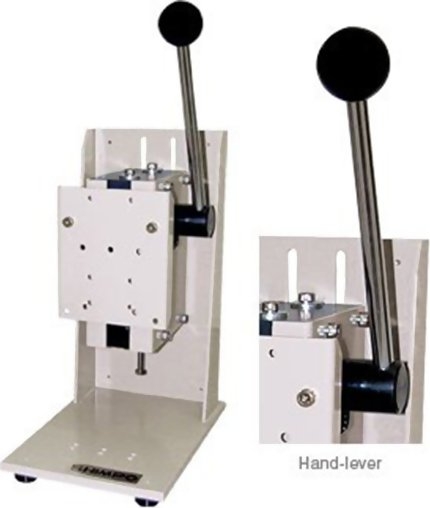

    • Manual lever operation for compression (push) measurements
    • Adjustable stroke with stop screws: max. 2" (50 mm)
    • Large platform base accepts special attachments
    • Max. capacity 50 lbs
    • Fixed position (clearance)in 3 steps: 40, 70, 100 mm

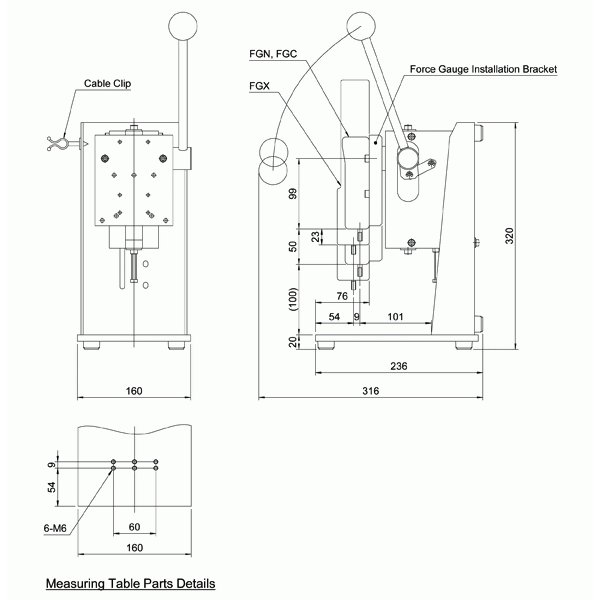

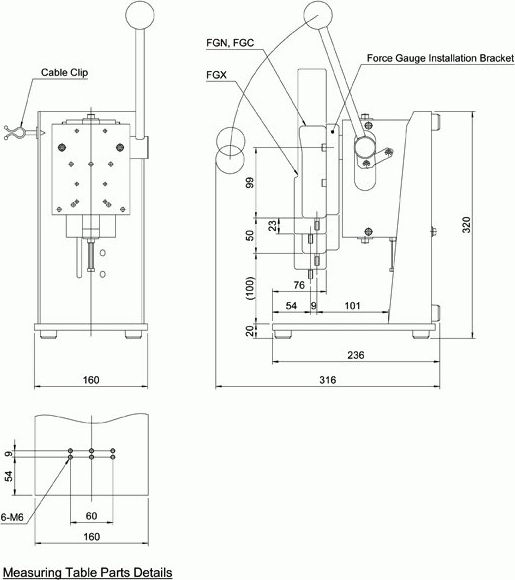

    • Dimensions 150 x 240 x 320 mm (L x W x H)


    line
    Specifications
    line

    Capacitymax. 200 N (20 kg)
    Stroke2" (50 mm)
    Dimensions150 x 240 x 320 mm (L x W x H)
    Weightapprox. 25 lbs
    Compatible GaugesFGE / FGV
    Warranty1 year
