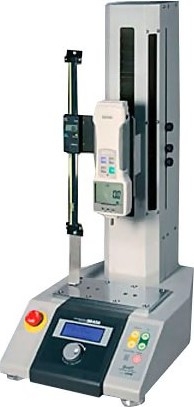

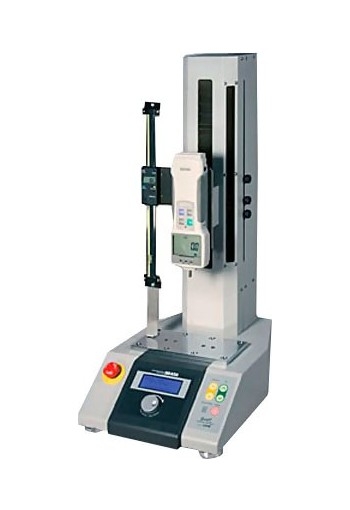

Imada EMX Ultra Precision, Force Control, Motorized Test Stand

---

Force Gauge sold Separately

---

Easy-to-use program dial and menu screens control distance, mode, speed, time and cycles

---

Force Control Testing with Imada ZTA Force Gauges

1. Break Detection (detects breakage automatically)
2. Stop at Preset Force Value
3. Stop at Desired Displacement from Contact Point
4. Stop at Desired Displacement from Start Position
5. Maintain Force between High/Low Setpoints

The Imada EMX Motorized Force Measurement Test Stand is for users requiring the utmost precision in their force testing. The Imada EMX uses a precision stepper motor that provides precise movement and smooth operation. Rigid construction assures minimum deflection to ensure consistent force and distance test results. The test stand incorporates an easy to read LCD screen onto the base. Use the intuitive program dial to set the mode, speed, test duration time, number of cycles and change other available test settings. The EMX allows users to save up to 5 test configurations into the stand.

Three Modes of Operation

The Imada EMX motorized test stand includes three modes of operation: Increment, Manual, Cycle Modes. The EMX features a unique jog movement control, for precise increment testing. In jog mode, each click of the program dial moves the cross head approximately .01mm. Manual mode allows the user to control the crosshead using the arrow buttons. In cycle mode, automated cycle tests are easy to setup. Control start, measuring and return speeds independently.

Force and Distance Control

Force controlled non-destructive tests are also easy to setup and program. Connect an Imada ZT Series force gauge to the Imada EMX test stand to enable the use of two force controlled modes and Conditional Overload Prevention. For more information, see the force control operation tab below.

The Imada EMX has been updated and now allows for Distance Control utilizing the new contact detection feature. This is ideal for for spring tests, elongation tests or any tests requiring a sample to be put under tension or compression to a specified distance.

Maintain Force Between High/Low Setpoints

Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the ZT series force gauge. The cross head maintains force between the low and high setpoint for the specified hold time,and then returns to the start position.

Increase Force to High Setpoint and Stop

Initial cross head speed is controlled by the start speed setting. When the applied force reaches the low set point of the ZT series force gauge, the test stand engages the measuring speed setting. The gauge stops when the applied force reaches the high set point on the ZT series force gauge. Ideal for non-destructive or creep testing. The cycle is repeated until the counter limit is reached.

Features

• Manual, Increment, Single Cycle, Continuous Cycle and Force Control (with ZTA force gauges) selectable
• Unique increment test mode. Each click of the program dial moves the cross head exactly 0.01mm (under no load)
• Programmable test distance (i.e. compress a certain distance)
• Up to five test configurations saved in memory
• Ultra rigid construction, 0.25mm deflection at max load
• Both compression and tension tests
• Programmable timer up to 99' 59.9, in 0.1 sec increments
• Easy-to-use program dial and menu screens control distance, mode, speed, time and cycles
• Wide speed range: 0.01 – 23.5 in/min (0.5 – 600mm/min)
• Force Controlled operation with Imada ZTA gauges
• Conditional Overload Prevention
• Stroke: EMX-110 11.6 (295mm) EMX-275 12.6" (320mm)
• Optional extender adds 5" of clearance
• Optional standard or high performance digital distance meter available

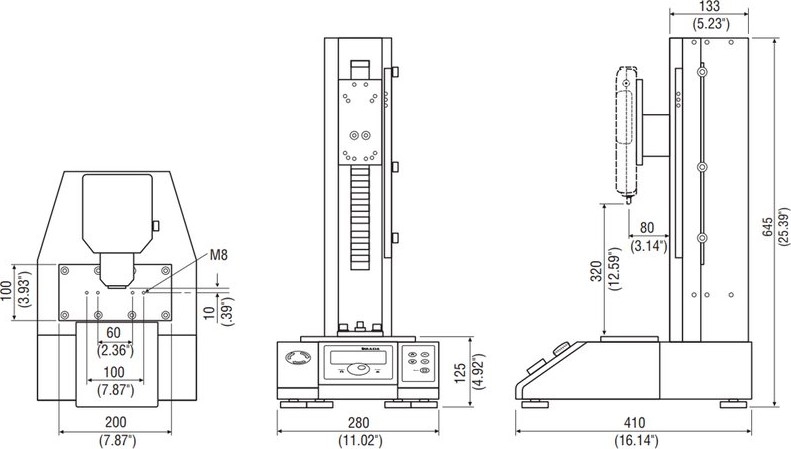

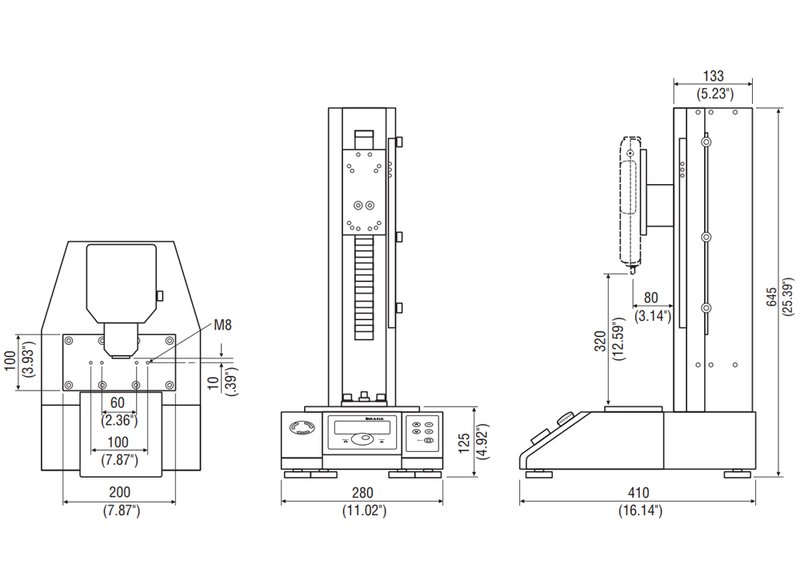

Specifications

Standard Distance Meter
Display	Push button for inch/mm, zero set and on/off
Resolution	0.0005"/0.01 mm
Accuracy	0.1% of reading or 0.005"/0.1 mm whichever is greater
High Speed Distance Meter
Range	280.00 mm - 11.00"
Resolution	0.01 mm - 0.0001"
Accuracy	0.1 mm - 0.004"

Ranges

Model	Capacity	Distance Meter	Stroke	Speed Range
EMX-110	110 lbf	None	295 mm (11.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
EMX-110-S	110 lbf	Standard	295 mm (11.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
EMX-110-FA	110 lbf	High Speed	295 mm (11.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
EMX-275	275 lbf	None	320 mm (12.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
EMX-275-S	275 lbf	Standard	320 mm (12.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
EMX-275-FA	275 lbf	High Speed	320 mm (12.6")	.5 - 600 mm/min (.01 - 23.5 in/min)
