Product Description

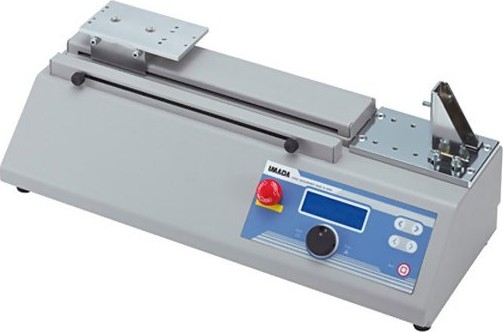

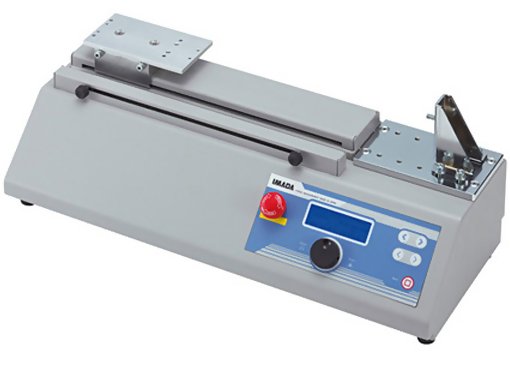

Imada MH2-110 Horizontal Motorized Test Stand
Force Gauge sold Separately
110 lb Capacity
Stroke: 9" (230mm)


The Imada MH2-110 Horizontal Motorized Test Stands use maintenance-free, brushless, DC motors that provide smooth and powerful operation to ensure consistent force testing results.

Precise Increment Mode

Imada MH2-110 features unique jog movement control, for precise increment testing. In jog mode, each click of the program dial moves the cross head approx. 0.01mm (standard speed, under no load).

Cycle Mode

In cycle mode, automated fatigue tests are easy to setup. Press the unique program dial and turn, to make selections from the menu screens and set mode, speed, test duration, units and cycles. Set start and return speeds independently.

Force Control

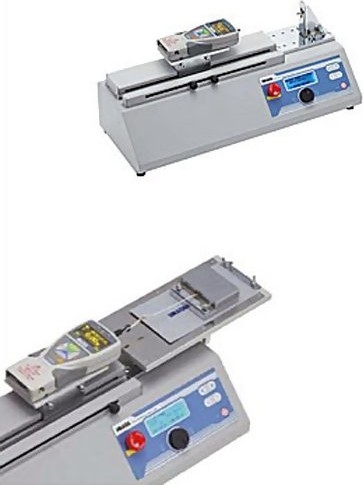

Force controlled non-destructive tests are also easy to setup and program. Connect a Z Series force gauge to the MH2 test stand to enable the following force controlled tests and Conditional Overload Prevention.

Maintain Force Between High/Low Setpoints

Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the Z Series force gauge. The cross head maintains that force for the programmed interval and then uses return speed to reset for the next cycle.

Increase Force to High Setpoint and Stop

Initial cross head speed is controlled by the start speed setting. When the applied force reaches the low set point on the Z Series force gauge, the test stand engages the measuring speed setting and stops when the applied force reaches the high set point on the Z series gauge. Ideal for non-destructive or creep testing. The cycle repeats until the counter limit is reached.


line
Features
line

  • Selectable Manual, Increment, Single Cycle, Continuous Cycle and Force Control (with Z Series gauges)
  • Ultra rigid, .5 mm deflection at maximum load
  • Conditional Overload Prevention
  • Stroke: 9" (230mm)
  • Easy-to-use program dial and menu screens control mode, speed, timer, cycles
  • Programmable timer up to 99' 59.9 sec in 0.1 sec increments
  • Up to 65,535 cycles


line
Speed Configurations
line

ModelSpeed (mm)Capacity (lbf)
MH2-110 (standard)10 ~ 300110
MH2-110-V90050 ~ 90033
MH2-110-V60020 ~ 60055
MH2-110-V903 ~ 90110
MH2-110-V451.5 ~ 45110


line
FA Option
line

MH2-110-FA test stands with incremental linear encoders record displacement in mm or inches on ZTA force gauges. Displacement can be reset to zero at a predetermined force. Optional Force Recorder software is available for force vs. displacement graphing.

FA Specifications

Range11.000" (280.00 mm)
Resolution0.0001" (0.01 mm)
Accuracy0.004" (0.1 mm)


line
Digital Distance Meter
line

Available with models MH2-110-S. Optional SW-1 data acquisition software is available

Distance Meter Specifications

DisplayPush button: inch/mm, zero, on/off)
Resolution0.0005" (0.01 mm)
Accuracy0.004" (0.1 mm)
