Imada MV-275 Motorized Vertical Test Stand

See More Test Stands, Motorized

Imada MV-275 Motorized Vertical Test Stand

See More Test Stands, Motorized
Call for price
    warrenty

    Product Description
    Call for Price
    Motorized Test Stand

    Force Gauge sold Separately
    275lb Capacity

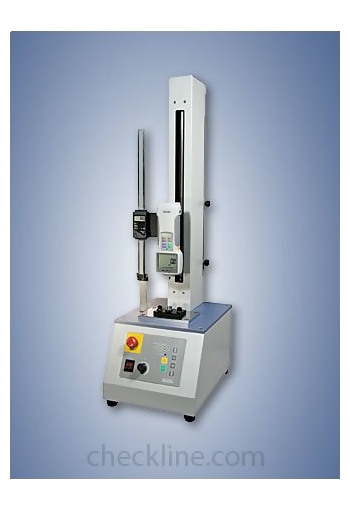

    MV-275 Motorized Vertical Test Stand

    Capacity: 275 lbs / 125 Kg / 1225 N

    The new MV-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

    Speed control, quick return and emergency stop are standard features. Optional digital distance meter available.


    line
    reddotFeatures
    line
    bluedotOne stand for both compression (push) and tension (pull) tests
    bluedotJog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
    bluedotClearance 16"
    bluedotCombination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
    bluedotWide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
    bluedotOptional timer and digital distance meter

    line

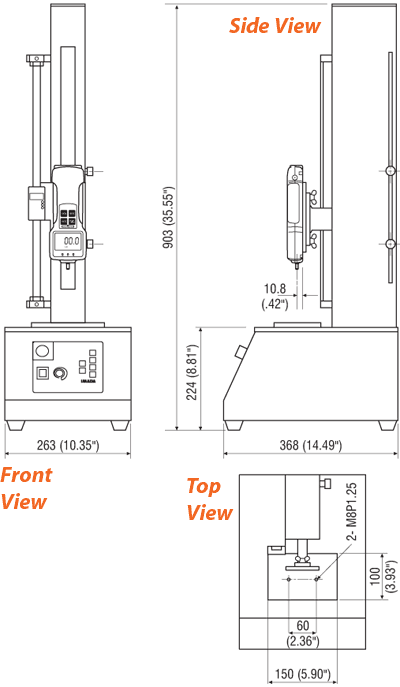

    reddotDimensions
    linedimensions

    line
    reddotRelated Products
    line

    LP-99
    Lexan Safety Shield
    related

    bluedotHelps protect personnel from injury by containing debris during testing

    ___________________________________________


    NIST CAL
    related


    line
    reddotSpeed Configuration
    line
    Standard Speed
    Optional High Speed
    Optional Low Speed
    0.4~9.4"/min
    0.7~23"/min
    0.15~4.2"/min

    line
    reddotSpecifications
    line
    Capacity275 lbs / 125 Kg
    Travel RateRefer to Speed Configuration above
    DimensionsSee Dimensions above
    Compatible GaugesDS2, Z2 and ZP
    Warranty2 years
