Product Description

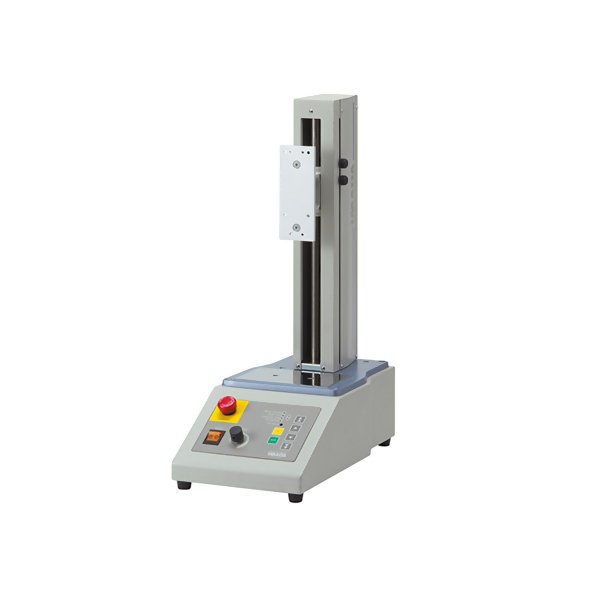

Imada MX-110 Motorized Test Stand with FORCE CONTROL
Force Gauge sold Separately
110lb Capacity

Capacity: 110lbs / 50Kg / 490N

The new Imada MX-110 test stand offers consistent and reliable testing. The combination of a screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

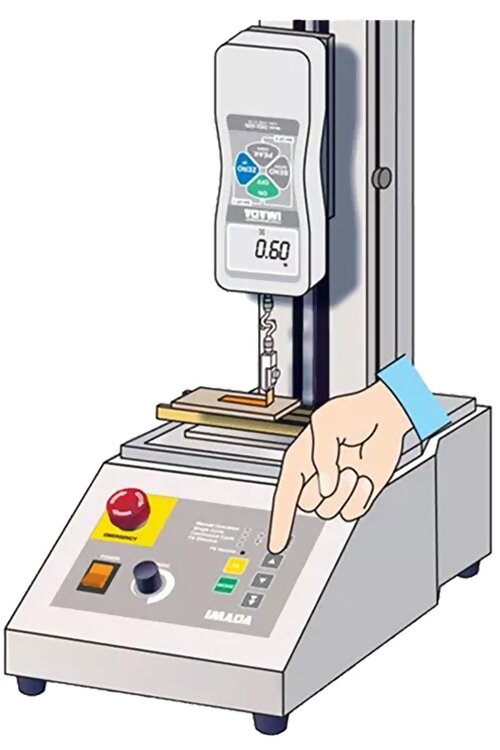

Connect the Imada MX-110 test stand with a Z Series force gauge and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z Series force gauge, or maintain the force between the Z Series High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.

The MX-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.


line
Features
line

  • One stand for both compression (push) and tension (pull) tests
  • Force Controlled operation with Z2 and ZP force gauges
  • 3 speed ranges:
    • 0.4 – 11.5 in/min
    • 0.7 - 23.0 in/min (MS)
    • 1.5 - 47.0 in/min (HS)
  • Jog, Single Cycle, Continuous Cycle, Force Control
  • Maximum clearance 9" (with extender 14")


line
Specifications
line

Capacity110lbs / 50Kg
Travel RateRefer to Ordering Guide above

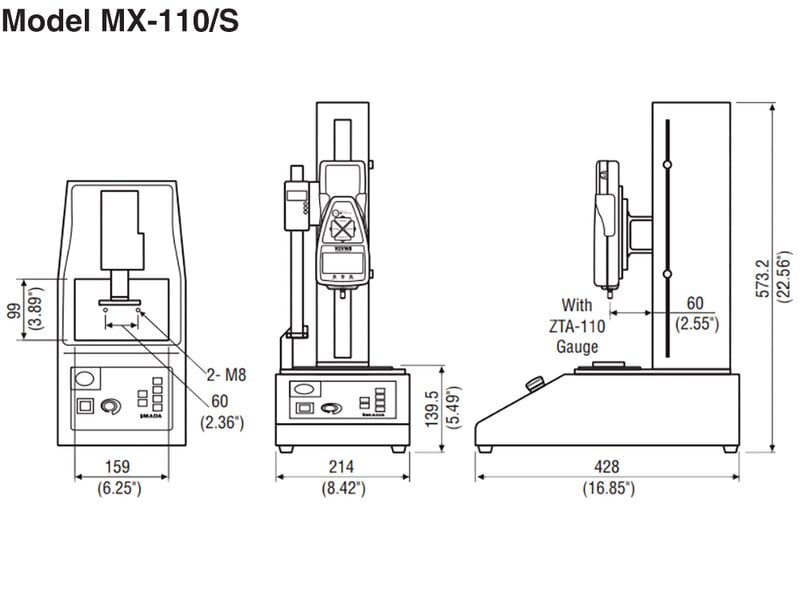

DimensionsRefer to Dimensions above
Compatible GaugesZ2, ZP and DS2
Warranty2 years


line
Ranges
line

ModelSpeed RangeDistance Meter
MX-1100.4 – 11.5 in/min (10 - 292 mm/min)No
MX-110-MS0.7 - 23.0 in/min (18 - 584 mm/min)No
MX-110-HS1.5 - 47.0 in/min (38 - 1194 mm/min)No
MX-110S0.4 – 11.5 in/min (10 - 292 mm/min)Yes
MX-110S-MS0.7 - 23.0 in/min (18 - 584 mm/min)Yes
MX-110S-HS1.5 - 47.0 in/min (38 - 1194 mm/min)Yes
