Product Description
This product has been replaced by the Mark-10 F755 - F1505

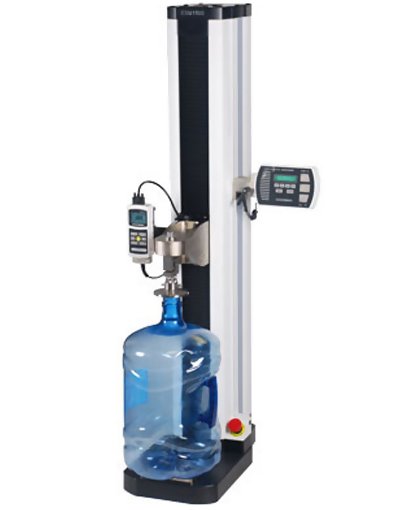

Mark-10 ESM750 / ESM1500 High Capacity Motorized Test Stand

Force Gauge sold Separately
PC control, stop / cycle at force, travel, or limit switch
32" of travel

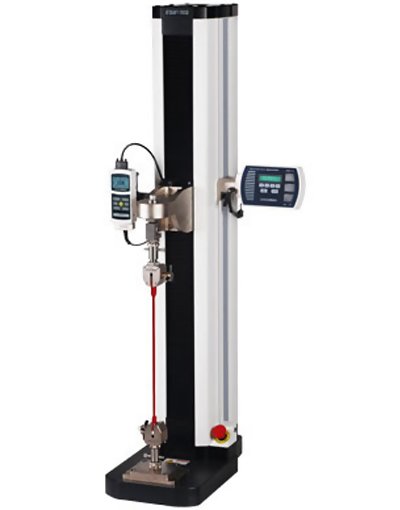

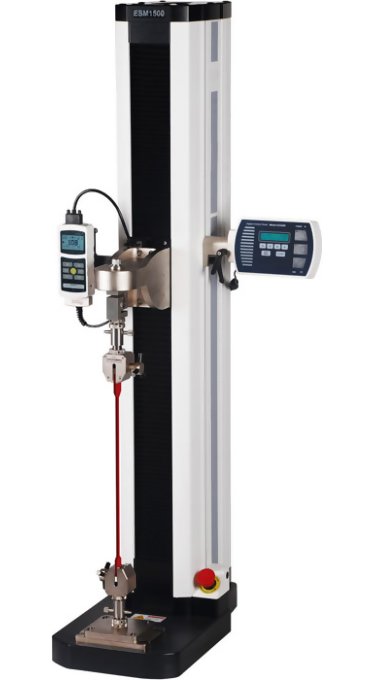

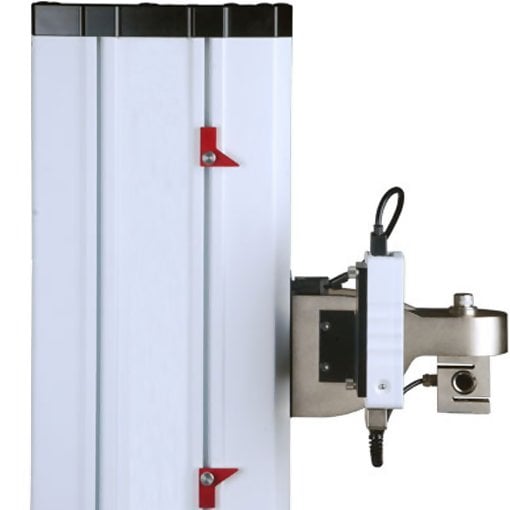

The Mark-10 ESM750 High Capacity Motorized Test Stand is a highly configurable single-column force tester for tension and compression measurement applications up to 750 lb (3.4 kN). The Mark-10 ESM1500 High Capacity Motorized Test Stand is a highly configurable single-column force tester for tension and compression measurement applications up to 1,500 lbF (6.7 kN). Suitable for laboratory and production environments, the Mark-10 ESM750 / ESM1500 may be used with an indicator-load cell combination or with a force gauge. Sample setup and fine positioning are a breeze with available FollowMeTM force-based positioning - using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead at a dynamically variable rate of speed.

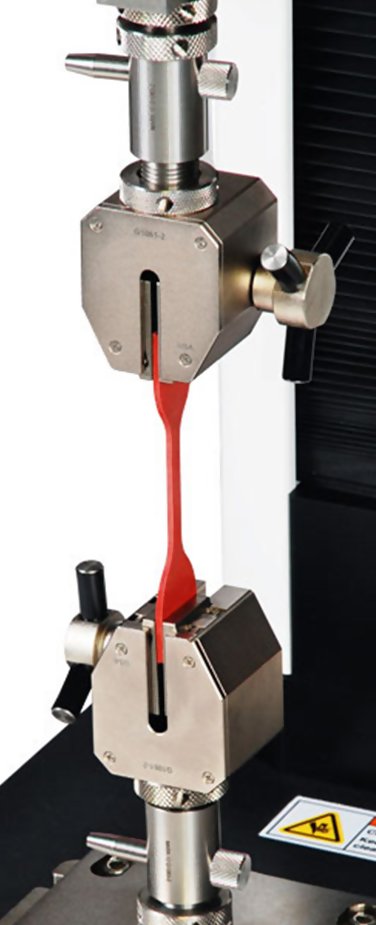

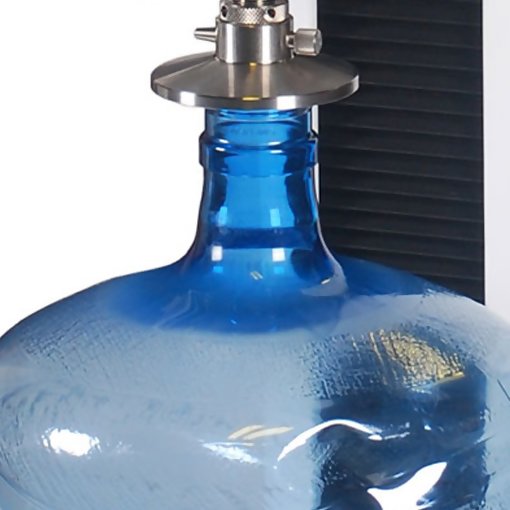

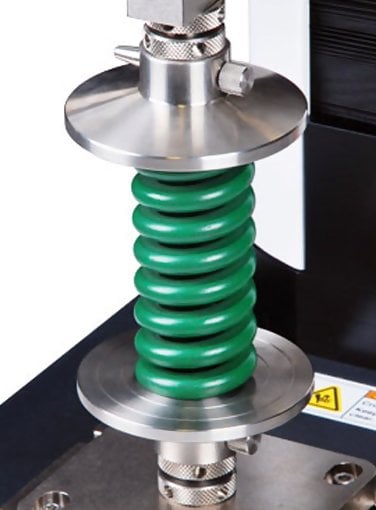

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password.

Controller functions are offered individually through a unique “build-your-own” configuration platform. Order any combination of functions to customize the test stand to specific requirements. Functions not ordered originally can be activated in the field.

Force and travel data can be output to a PC for graphing and analysis using MESURTMgauge software. Or, fully control the stand by a PC through a custom-written program in any language supporting ASCII communications.


line

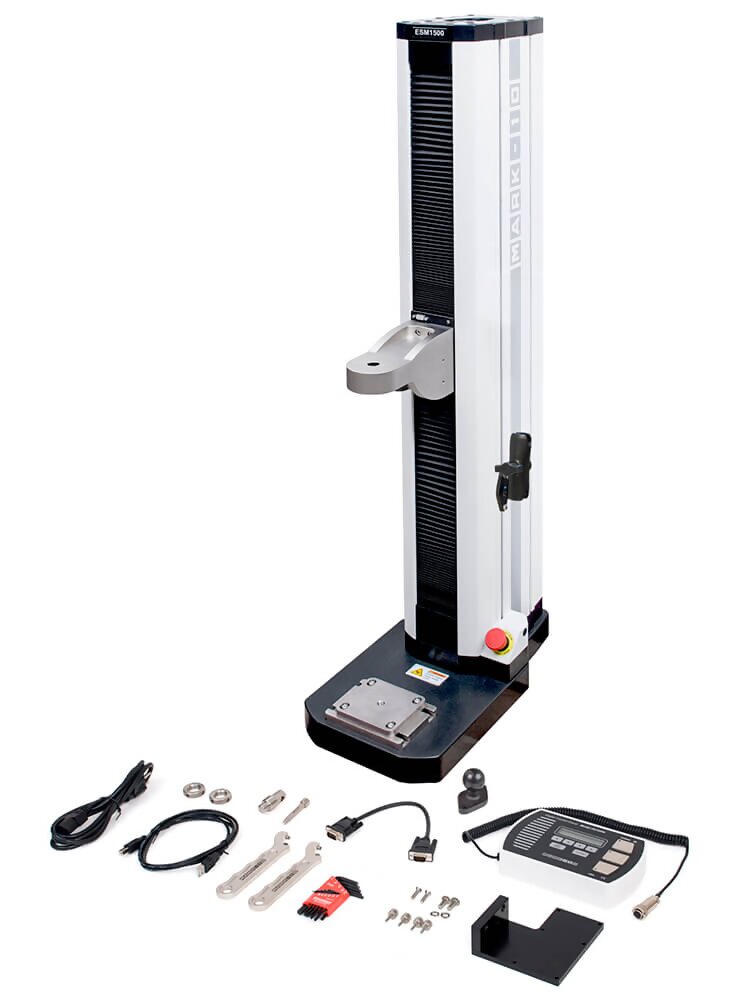

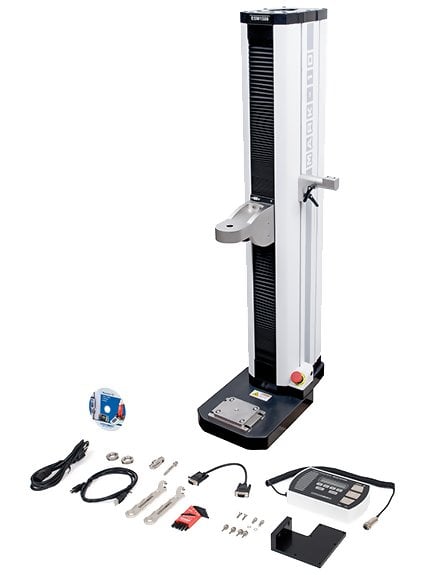

Kit Contents
line

  • Mark-10 ESM1500 / ESM750 Motorized Tension / Compression Test Stands
  • AC1047-2 eye end kit
  • G1088 spanner wrench
  • Load cell / indicator mounting kit (-LC models)

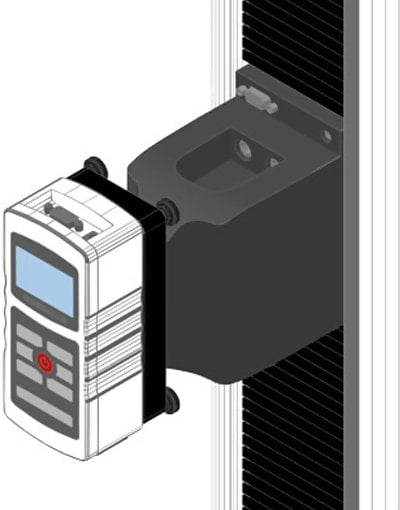

  • Force gauge mounting kit (-FG models)
  • USB cable
  • Interface cable, gauge/indicator to test stand
  • Thumb screw for indicator / force gauge
  • Allen wrench set
  • Control panel
  • Control panel mounting bracket with hardware
  • Power cord


line
Features
line

  • Broad force range and clearance dimensions
  • Compatible with load cells and force gauges
  • USB output of force vs. time or force vs. distance
  • Adjustable, removable control panel with intuitive menu navigation
  • Unique modular function platform – select functions as required for the application
  • Password protection of test parameters
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • Compact footprint, suitable for crowded workbenches

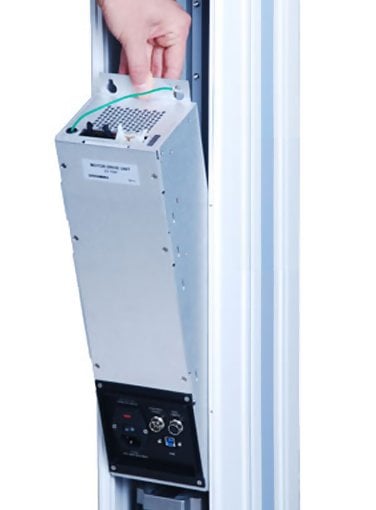

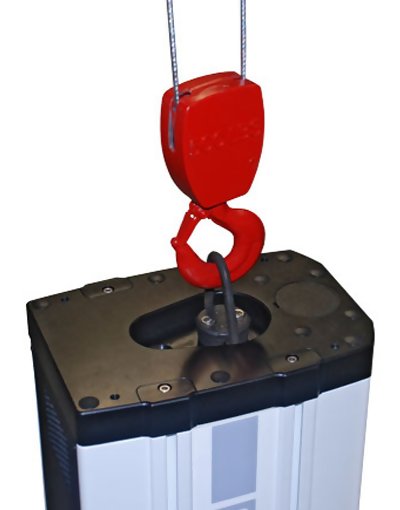

  • Most electronics are housed in an integrated removeable enclosure, easily accessed for service


line

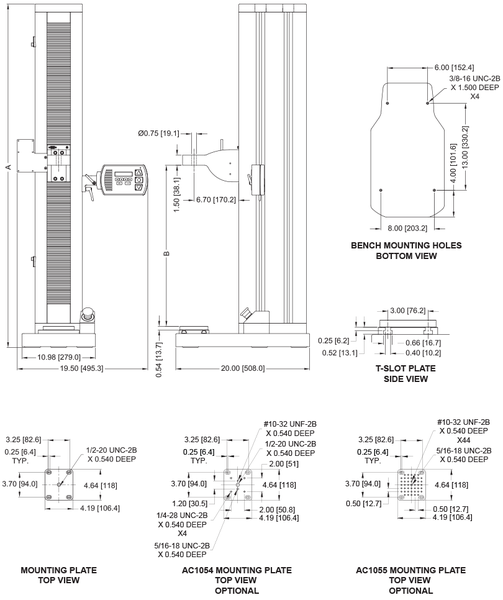

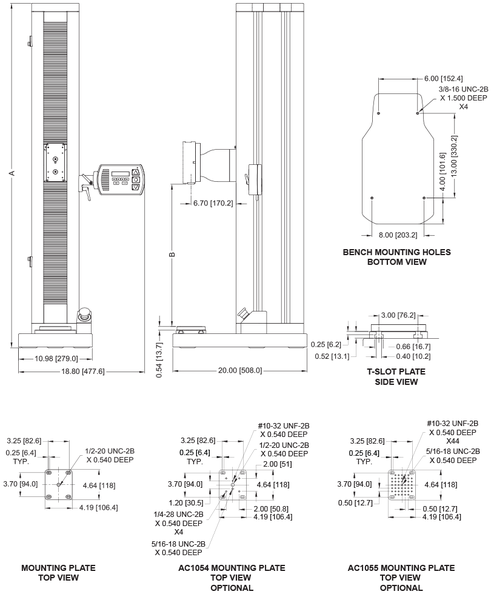

Specifications
line

ESM 1500ESM 1500SESM 750ESM 750S
Load capacity1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min
1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min		750 lbF [3.4 kN] at < 35 in [900 mm]/min
500 lbF [2.3 kN] at > 35 in [900 mm]/min
Maximum travel distance32.0 in [813 mm]14.2 in [360 mm]32.0 in [813 mm]14.2 in [360 mm]
Standard speed range0.5 – 24 in/min [10 – 600 mm/min]
Available speed range0.001 – 90 in/min [0.02 – 2,300 mm/min]0.001 – 60 in/min [0.02 – 1,525 mm/min]
Speed setting accuracy±0.2% of setting
Speed variation with load±0% [stepper motor driven]
Travel accuracy*±0.002 in. per 10 in. [±0.05 mm per 250 mm]
Travel resolution0.001 in [0.02 mm]
Limit switch repeatability±0.001 in [0.03 mm]
PowerUniversal input 80-240 VAC,
50/60 Hz, 450W		Universal input 80-240 VAC,
50/60 Hz, 120 W
Weight198 lb [90 kg]160 lb [72 kg]185 lb [84 kg]150 lb [68 kg]
Shipping weight248 lb [113 kg]206 lb [93 kg]236 lb [107 kg]196 lb [88 kg]
Warranty3 years [see individual statement for further details]
ConformanceCE mark
  • Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance.


line
Optional Functions
line

Feature Description Requirements

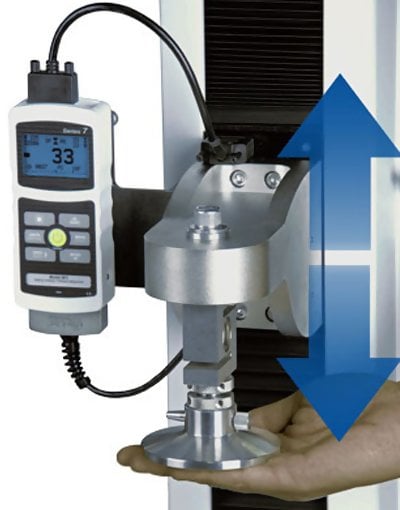

FollowMe®
force-based positioning
SF008		 Position the crosshead by manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning. Series 7 or 5 gauge or indicator
Travel indication
SF009
(ESM1500 / ESM750)
SF009-1
(ESM1500S / ESM750S)		 Position is indicated on the control unit display, with output via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-based designs. Backlash and nonlinearity are virtually eliminated. For data output to a PC, a Series 7 or 5 gauge or indicator is required.
Computer control
SF010		 Fully control the stand and force gauge / indicator via custom-written application in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Mark-10). This option is not required for MESUR®gauge Plus software. Series 7 or 5 gauge or indicator SF009 travel indication For full speed range, consider SF017 and SF018 speed range extensions
Programmable travel limits
SF011		 The stand stops at or cycles between programmable upper and lower travel distances. SF009 travel indication option
Overload protection
SF012		 Protects a force gauge or force sensor against overload. Also compatible with many competitors’ gauges. Series 7 or 5 gauge or indicator
Auto return
SF013		 The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the opposite limit. Reversing at force set point: Series 7 or 5 gauge or indicator Reversing at travel limit: SF011 programmable travel limits option Reversing at break: SF019 break detection option
Cycling / dwell time
SF014		 Same as auto-return, but programmable up to 99,999 cycles.
Programmable dwell time at upper and lower limits up to 9,999 seconds.		 Same as auto-return, at the same speed in each direction. Add SF016 for independent up and down speeds.
Independent Up and Down speeds
SF016		 Individually specify speeds for the up and down directions. –
Low speed extension
SF017		 Extends the standard speed range down to 0.001 in/min (0.02 mm/min). –
High speed extension
SF018
SF018-1		 ESM1500 / ESM1500S: Extends max speed to 90 in/min (2,300 mm/min).
ESM750 / ESM750S: Extends max speed to 60 in/min (1,525 mm/min).		 –
Break detection
SF019		 Crosshead stops at a programmable drop in force. Series 7 or 5 gauge or indicator
Loadholding
SF020		 Dynamically adjusts the crosshead position to maintain a specified load for an indefinite or specified period of time. Series 7 or 5 gauge or indicator If a specified time is required, order SF014 cycling / dwell time option
Preload / sample touch
SF021		 Stops the crosshead and/or zeroes the travel display at an initial preload – useful in tensile, spring, elongation, and other applications. SF009 travel indication Series 7 or 5 gauge or indicator
Profiles
SF022		 Save and recall sets of test parameters, such as speeds, travel limits, preload, etc. Maximum of 50 profiles may be stored. –
Complete options package
SFCOMP (ESM1500 / ESM750)
SFCOMP-1 (ESM1500S / ESM750S)		 Includes all functions listed above.
Requires a Series 7 or 5 gauge or indicator.


line
Hardware and Software Options
line

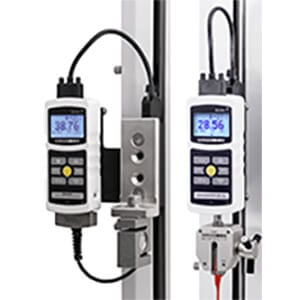

Indicators and Force Gauges

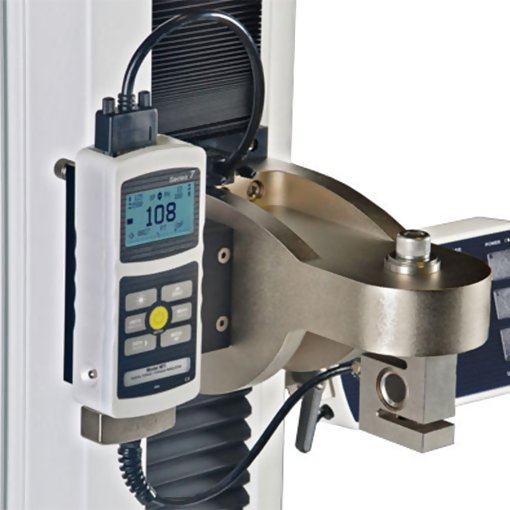

  • Select from Model M7I or M5I indicators for -LC test stands, or Series 7 or Series 5 force gauges for -FG test stands.
  • Note: At 500 lbF (2,500 N) or more, force gauges are not recommended for applications involving sudden, sharp breaks. Examples include compression of brittle materials, pull testing of welds, etc. Consider an -LC test stand with indicator and load cell.

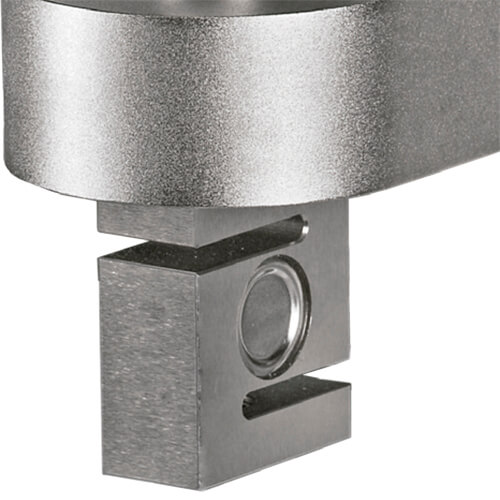

Series R01 force sensors

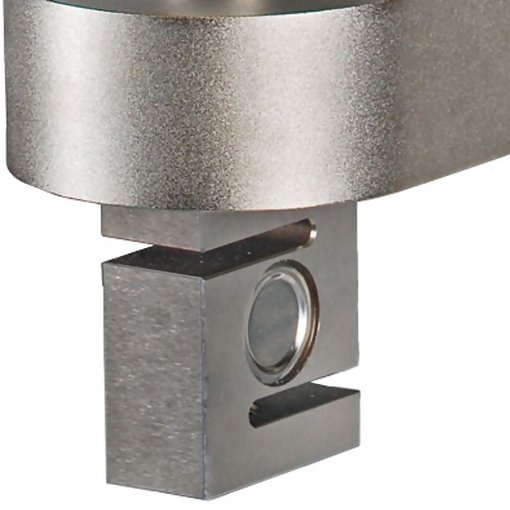

  • S-beam load cells for use with any Mark-10 indicator. Capacities from 50 to 2,000 lbF (250 N to 10 kN).

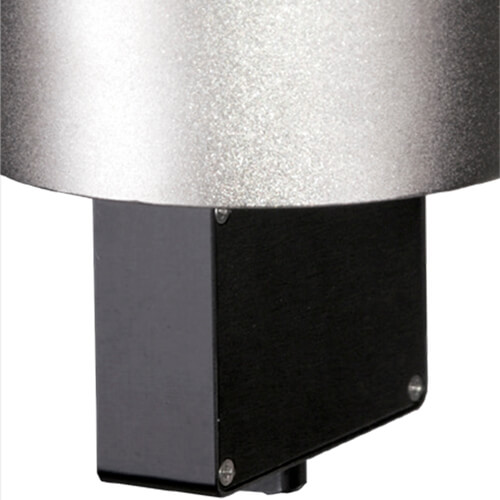

Series R03 force sensors

  • Inline force sensors for use with any Mark-10 indicator. Capacities available from 0.25 to 100 lbF (1 to 500 N).

Data collection & motion control software

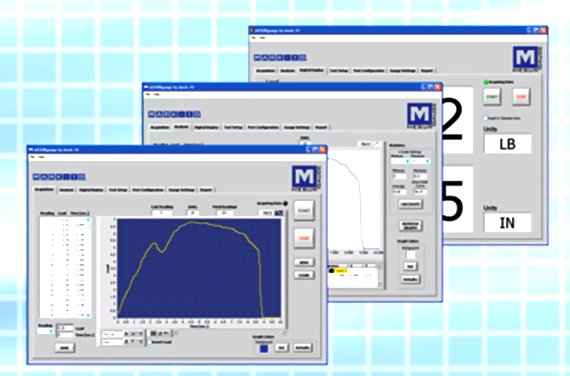

  • Consider MESUR®gauge Plus for force vs. travel or force vs. time data acquisition, plotting, analysis, reporting, as well as motion control. The software coordinates motor start / stop and data acquisition with one click.
  • Note: MESUR®gauge Plus does not require any optional test stand functions, such as PC Control. If force vs. travel vs. time output is required, order the Travel Indication option. See below section for details.

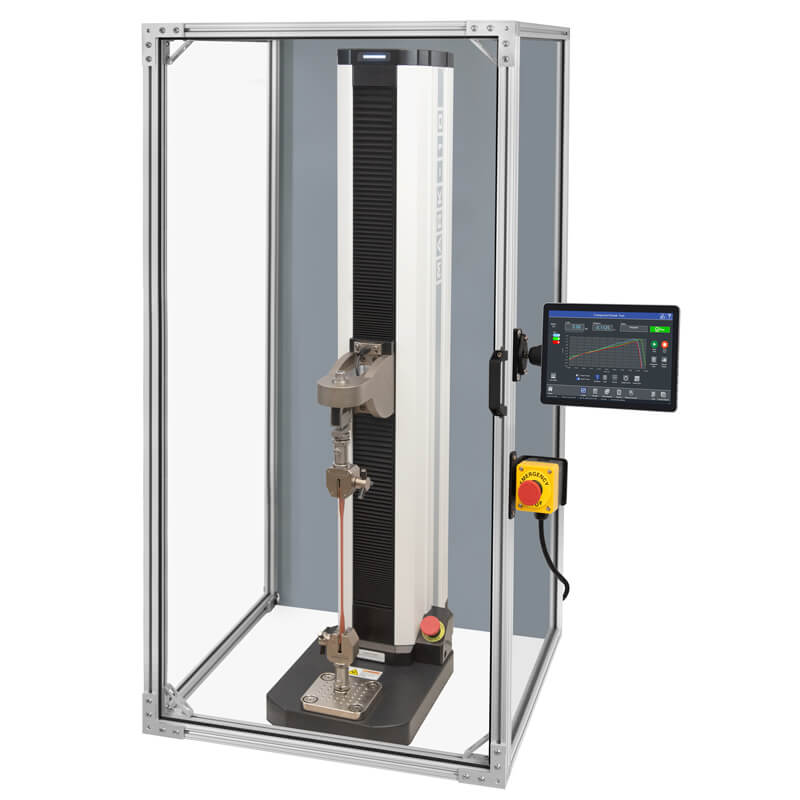

Safety Shield (AC1092-1, AC1092-2)

  • Provides pinch and sample debris protection for the operator. Includes an electrical interlock, preventing test stand operation while the door is open.

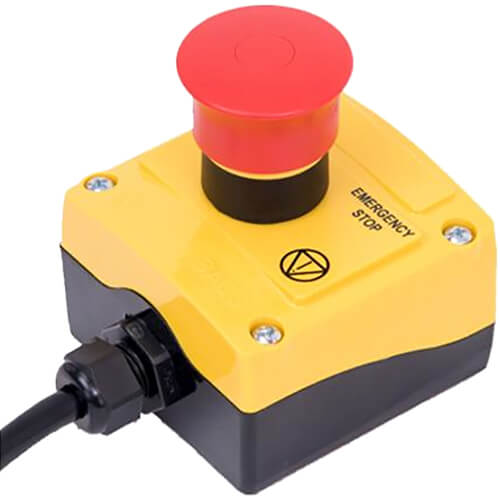

Remote emergency switch (AC1074)

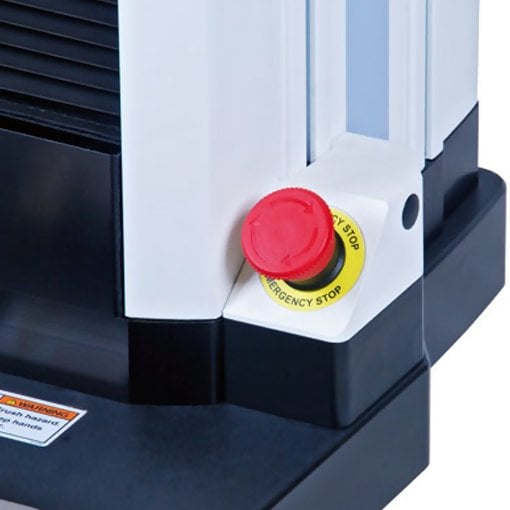

  • Convenient for when the standard emergency switch is inaccessible, for example if a safety shield is used. Includes an 8’ (2.4 m) cable, and plugs directly into the rear of the test stand. The standard, attached emergency switch remains operational while the remote switch is plugged in.

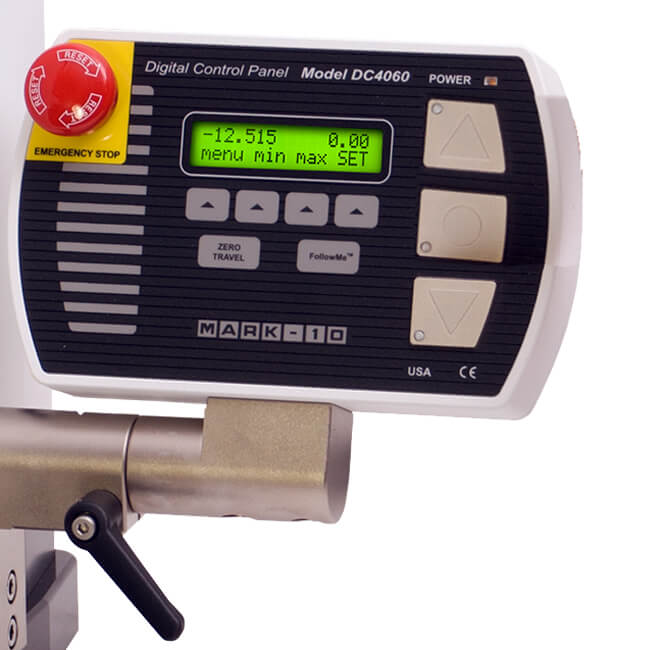

Control panel tabletop mounting kit (AC1085, ESM303-004)

  • For applications requiring remote use of the control panel. Features an adjustable viewing angle and a base with thru holes for bench mounting. Use AC1085 for test stands produced in November 2020 or later, or ESM303-004 for test stands produced earlier.

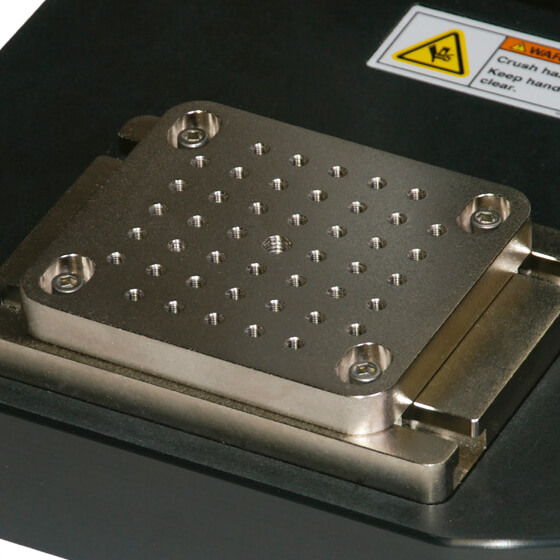

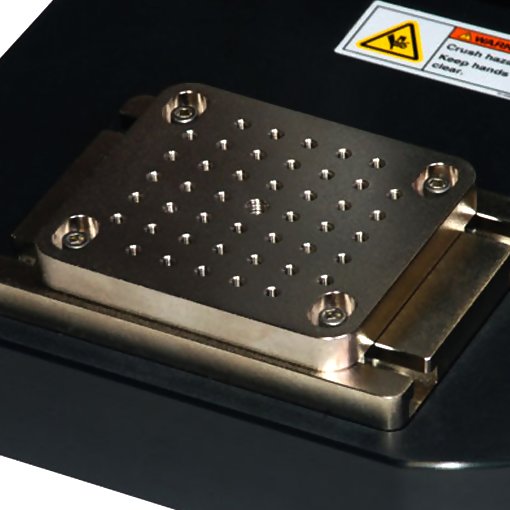

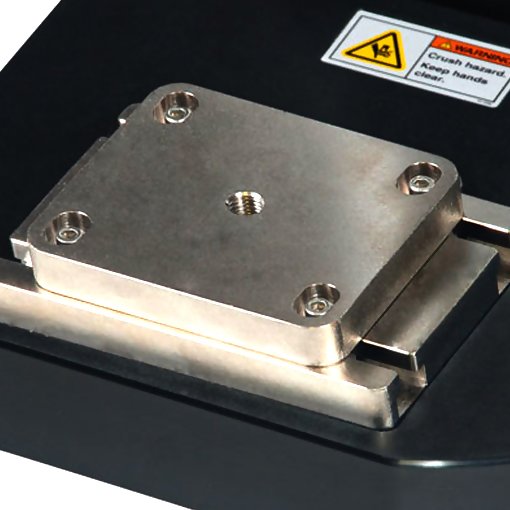

Base plate, matrix of holes (AC1055)

  • Features a matrix of #10-32 threaded holes and a 1/2-20 center hole, ideal for custom fixture mounting.

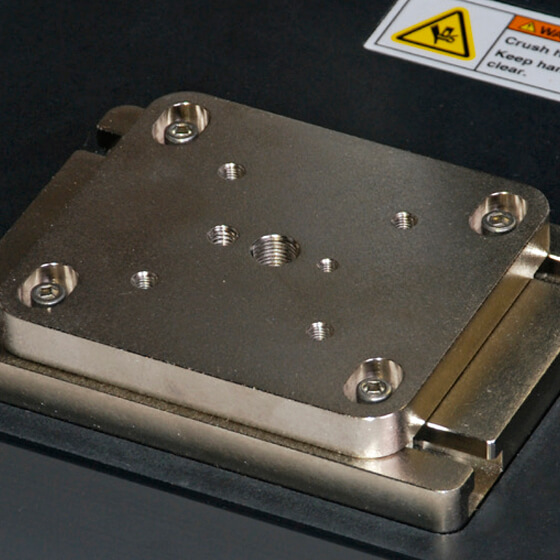

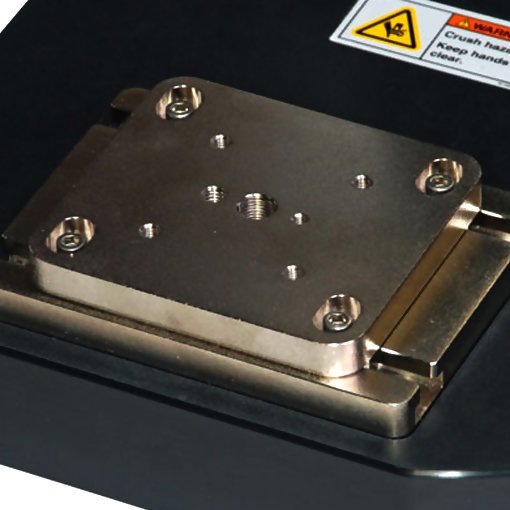

Base plate, three hole sizes (AC1054)

  • #10-32, 5/16-18, and 1/2-20 holes are provided, along with an array of four 1/4-28 holes.

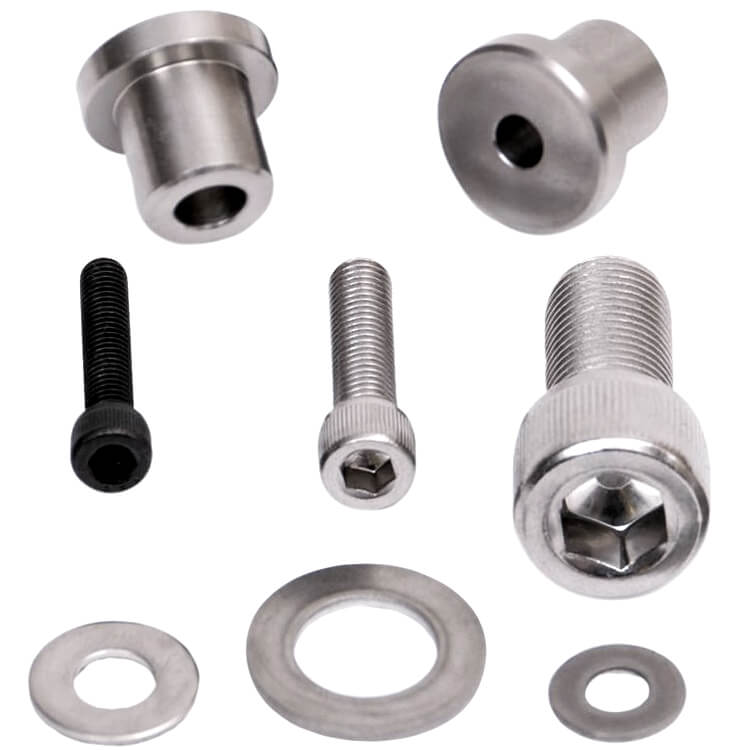

Load cell hardware kit (AC1064)

  • Set of mounting hardware for other manufacturers’ load cells with #10-32, 1/4-28, and 1/2-20 mounting threads. Note that Series R01 and R03 load cell part numbers ending in -1 (ex: MR01-500-1) include mounting hardware for -LC test stand models, ex. ESM750LC.

Eye end adapters

  • Allow for quick grip installation and removal, and prevent grip rotation.
  • Mount to common test frames, load cells, and force gauges.


line
Downloads
line

Mark-10 ESM1500 / ESM750 Motorized Tension / Compression Test Stands - Data Sheet
Mark-10 ESM1500 / ESM750 Motorized Tension / Compression Test Stands - Instruction Manual
