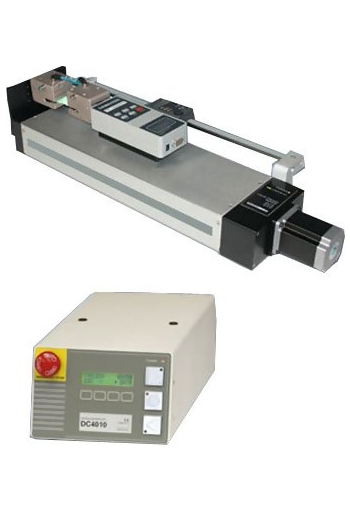

The ESMH-DC Advanced Motorized Force Measurement Test Stand offers all the mechanical specifications of the ESM motorized test stand, including 50 lb (250 N) force capacity, smooth top surface for coefficient of friction testing, integrated limit switches, stepper motor design that prevents speed variation with load, and more.

The ESMH-DC offers expanded capabilities, including PC control, programmable cycling, auto return, and other features.

Features

• Computer Control
• An RS-232 port is provided to interface with a PC. The ESMH-DC accepts a number of commands pertaining to test stand motion and force gauge functions*. The following additional items are required for PC control:
  • Series BG force gauge (more info)
  • 09-1056 serial cable (see Optional Equipment)
  • 09-1143 multi-function cable (see Optional Equipment)
• Overload Protection
• Protects a force gauge against overload (requires a Series BG force gauge and 09-1143 multi-function cable). The user programs the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the test stand to interface with virtually any force gauge with analog output.
• Auto-return
• The crosshead moves to a limit switch or force set point (requires a Series BG force gauge), stops, and reverses direction at maximum speed to the other limit switch or set point.
• Cycling / Dwell Time
• The crosshead moves up and down between limit switches or force set points (requires a Series BG force gauge). Configurable up to 99,999 cycles. Dwell time allows the operator to program the amount of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the crosshead pauses at limits.
• Programmable LEFT / RIGHT Button Functions
• LEFT and RIGHT button operation can be configured in three user-configurable modes: Maintained: a short push produces continuous motion until STOP is pressed, Momentary: crosshead moves only while the button is pressed, and Auto: short push produces maintained motion, while holding down the button will produce momentary motion.
• Independent Left and Right Speeds
• Programmable independent speeds for left and right directions
• Selectable speed units of measurement (in/min & mm/min)
• Password protection Prevents unauthorized changes to test parameters

Contains no integrated travel measurement. Travel information available only through the external ESMH001 digital travel display, requiring an additional serial port on the PC. For an integrated solution with full PC control, including travel distance, see test stand model ESM301.

Specifications

Dimensions

Related Products

BG Digital Force Gauge RS-232, Mitutoyo and analog outputs Selectable units of measurement

MG Economical Digital Force Gauge - Push Pull Gauge User-selected units of Pounds, Kilograms or Newtons 3 Year Warranty

Downloads

ESMH-DC Advanced Motorized Test Stand - Data Sheet
