Name: Mark-10 Series FS05 Tension and Compression Force Sensors
Brand: Mark-10
SKU: 1992

Mark-10 Series FS05 Tension and Compression Force Sensors

See More Test Stands, Motorized

Mark-10 Series FS05 Tension and Compression Force Sensors

Force Sensors for use with Series F Test Frames

Capacities up to 500 lb / 2.5 kN

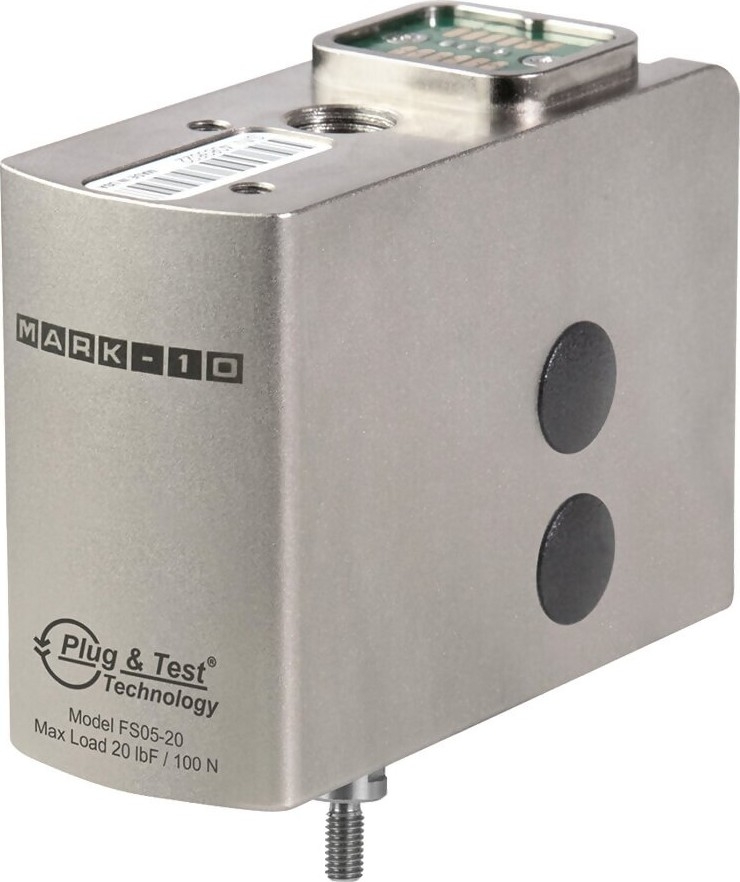

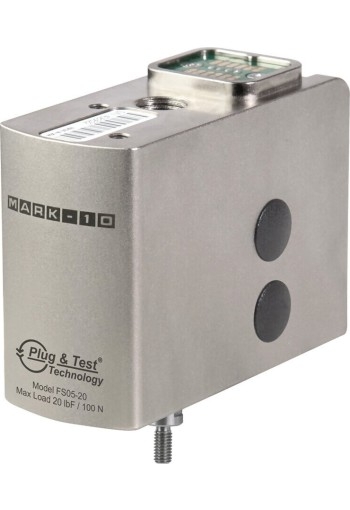

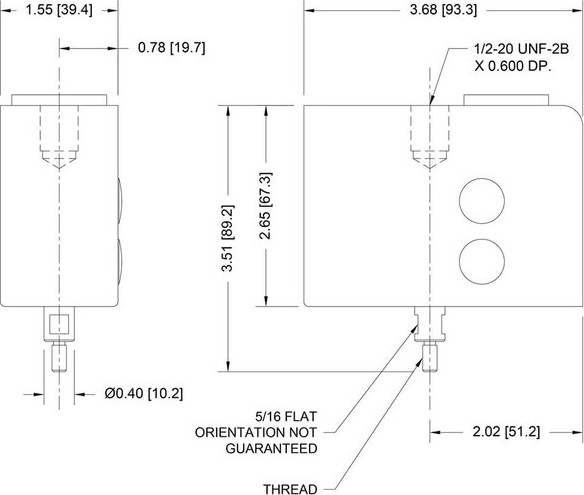

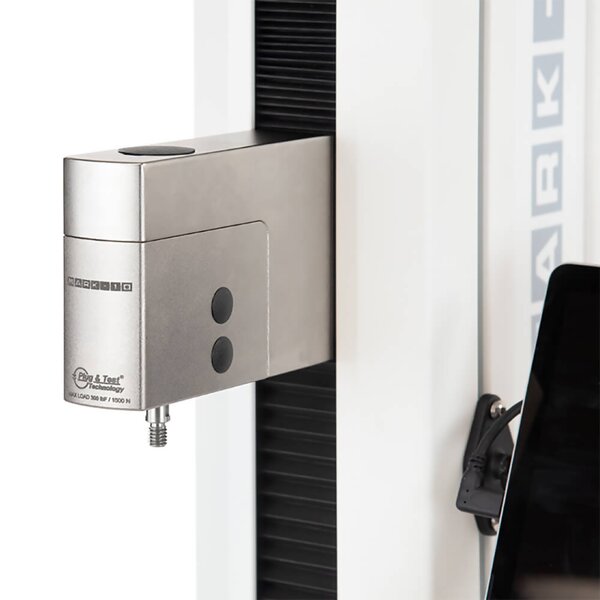

The Mark-10 Series FS05 Tension and Compression Force SensorsSeries FS05 force sensors measure tension and compression forces is mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.

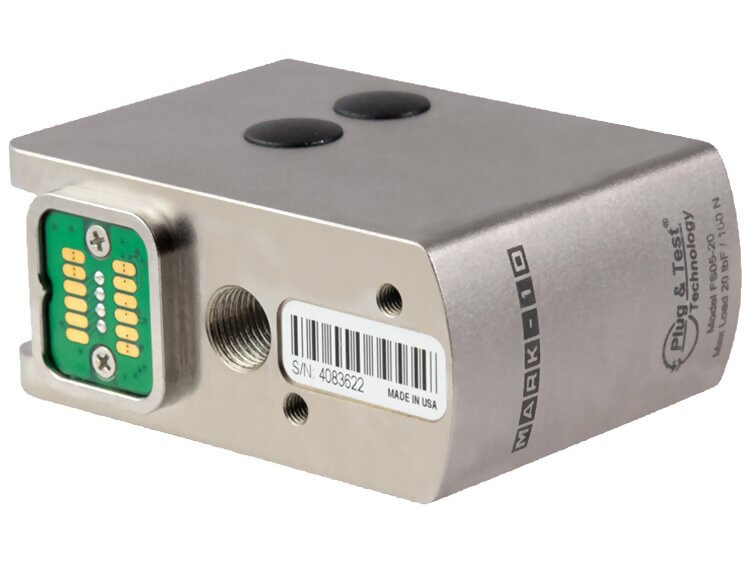

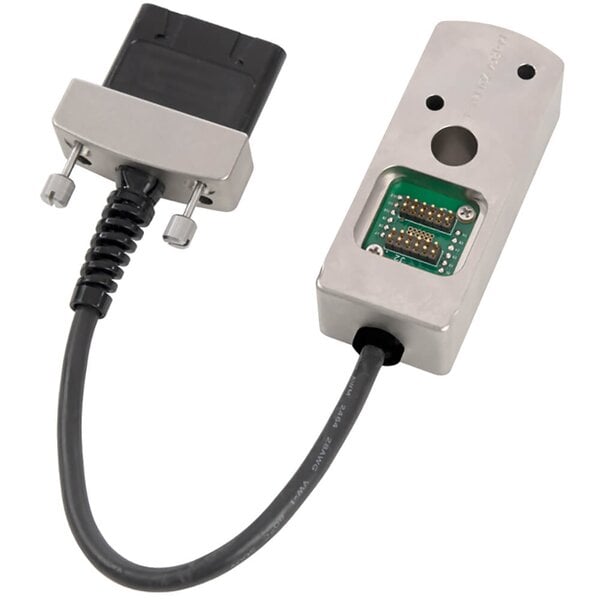

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].

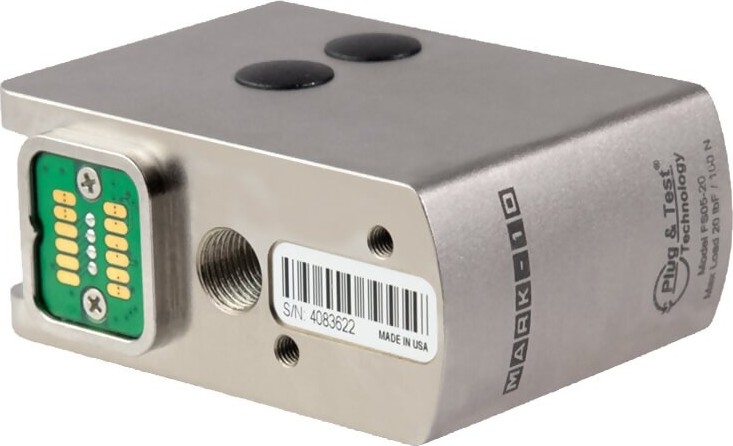

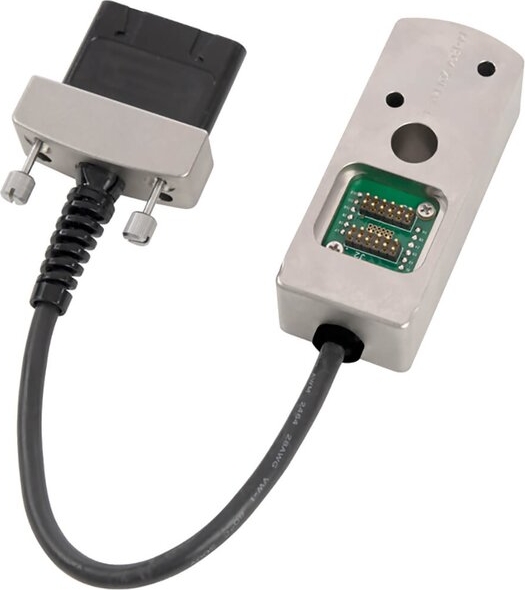

Note: An AC1083 adapter is required to use FS05 force sensors with the following test frames: F755, F755S, F1505, and F1505S.

line
Features
line

NIST-traceable certificate of calibration with data is included

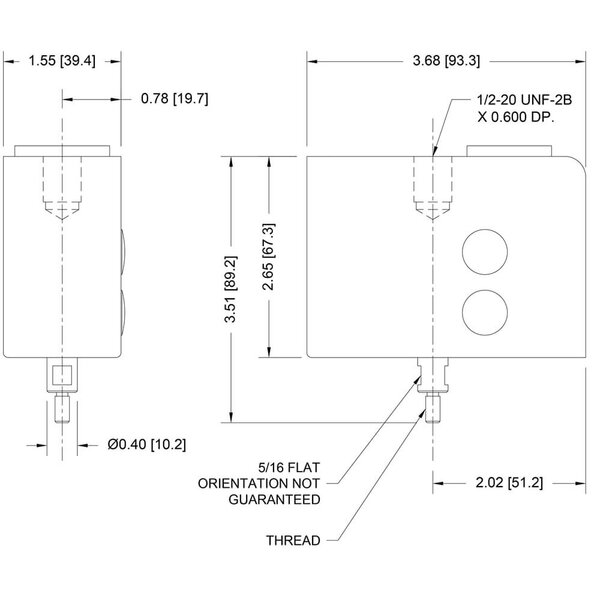

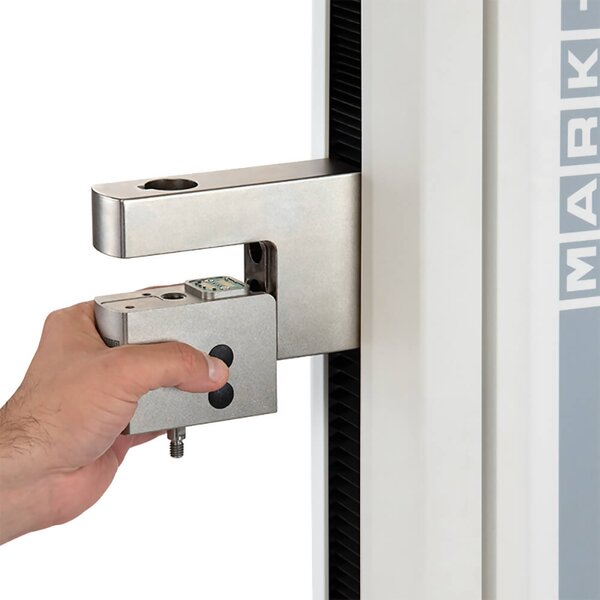

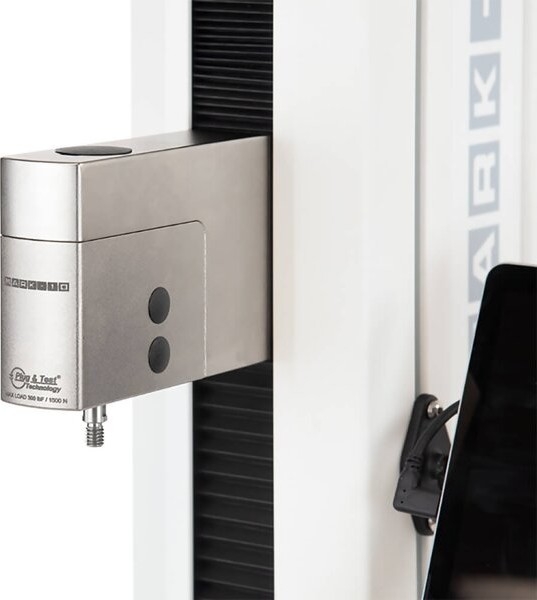

Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
Measure tension and compression force
Warranty: 3 years

line
Specifications
line

Accuracy	± 0.1% of full scale + indicator or test frame
Safe Overload	150% of full scale
Weight	From 1.9 to 3 lb (0.9 to 1.4 kg)

line
Capacity x Resolution
line

Model	lbF	ozF	gF	kgF	N	kN	mN
FS05-012	0.12 x 0.00002	2 x 0.0005	50 x 0.01	–	0.5 x 0.0001	–	500 x 0.1
FS05-025	0.25 x 0.0001	4 x 0.002	100 x 0.05	–	1 x 0.0005	–	1000 x 0.5
FS05-05	0.5 x 0.0002	8 x 0.005	250 x 0.1	–	2.5 x 0.001	–	2500 x 1
FS05-2	2 x 0.001	32 x 0.02	1000 x 0.5	1 x 0.0005	10 x 0.005	–	–
FS05-5	5 x 0.002	80 x 0.05	2500 x 1	2.5 x 0.001	25 x 0.01	–	–
FS05-10	10 x 0.005	160 x 0.1	5000 x 2	5 x 0.002	50 x 0.02	–	–
FS05-20	20 x 0.01	320 x 0.2	10000 x 5	10 x 0.005	100 x 0.05	–	–
FS05-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	–	–
FS05-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	–	–
FS05-200	200 x 0.1	3200 x 2	–	100 x 0.05	1000 x 0.5	1 x 0.0005	–
FS05-300	300 x 0.1	4800 x 2	–	150 x 0.05	1500 x 0.5	1.5 x 0.0005	–
FS05-500	500 x 0.2	8000 x 5	–	250 x 0.1	2500 x 1	2.5 x 0.001	–

line
Accessories
line

	F05-012 - FS05-20	FS05-50 – FS05-100	FS05-200 – FS05-500
Extension Rods	G1024	G1024	G1031
Cone	G1026	G1026	G1033
Chisel	G1025	G1025	G1032
V-Groove	G1027	G1027	G1034
Flat	G1029	G1029	G1036
Hook	G1028	G1038	G1035
Coupling	-	G1039	G1037
