Shimpo FGS-100PXH Horizontal Motorized Test Stand, 100 lb Capacity

See More Test Stands, Motorized

Shimpo FGS-100PXH Horizontal Motorized Test Stand, 100 lb Capacity

See More Test Stands, Motorized
This product has been discontinued

Product Description
This product has been replaced by the Shimpo FGS-250W
This product has been discontinued

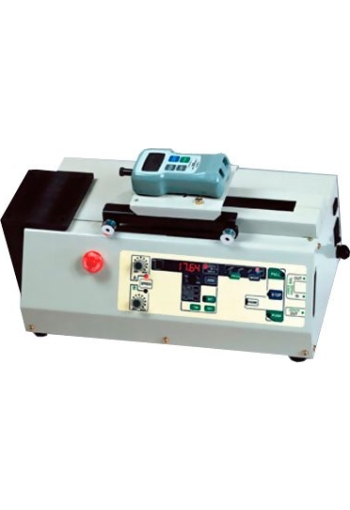

Shimpo FGS-100PXH Motorized Horizontal Test Stand


Force Gauge sold Separately
100lb Capacity

2 Models Available
FGS-100PXH
: 1.6" - 16" inches/min (Standard Speed)
FGS-100PXL: .4" - 4" inches/min (Low Speed)

Motorized horizontal test stand for single cycle or continuous cycling capabilities. For use with FGE / FGV force gauges.

*FORCE GAUGE NOT INCLUDED

Designed to work with the FGE & FGV force gauges.

line
Features
line

  • User programmable set points: speed, distance, stop time
  • Single cycle and continuous cycling capabilities
  • High and low force set points user selectable through RS232C interface
  • Compatibility with nearly all manufacturers’ gauges
  • All gauge functions can be communicated through stand via RS232 interface
  • Analog distance outputs
  • Manually adjustable upper and lower limits
  • All steel construction

line
Specifications
line

Capacity 110 lbs / 50 kg / 500 N
Stroke 5.5" / 140 mm
Fixed position (clearance) 5 steps from 2.4" - 7.1" 1.2"/step
(61 to 181 mm, 30 mm/step)
Travel rate FGS-50PXH: 1.6" - 16" inches/min
FGS-50PXL: .4" - 4" inches/min
Travel distance displayed with a resolution of 0.1 mm; output 10 mV/mm
Power supply 115 AC, 60Hz (standard)
230 V AC, 50 Hz(optional)
Dimensions 17.6" x 9.2" x 8.1" (L x W x H)
Weight 42 lbs
Compatible Gauges FGE / FGV
Warranty 1 year


line

line


ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Models Price
Discontinued
