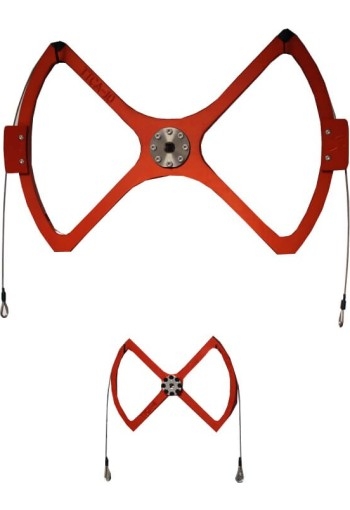

AWS TTCA Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
$1,195.00 - $4,145.00
Features
- Constructed from high quality anodized aluminum
- Supplied with NIST Traceable Calibration Certificate
- Metric models available, inquire
- Custom sizes available, inquire
- Can be used for a wide range of applications
Specifications
| Dimensional Accuracy | TTCA-1: +/- 0.125% All Other Models: +/-0.0625% |
Dimensions + Tolerance
| Model | Length | Standard Tolerance +/- |
| TTCA-1 | 1.000 | 0.0011 |
| TTCA-2 | 2.000 | 0.0023 |
| TTCA-4 | 4.000 | 0.0046 |
| TTCA-10 | 10.000 | 0.0114 |
| TTCA-12 | 12.000 | 0.0137 |
| TTCA-24 | 24.000 | 0.0274 |
| TTCA-48 | 48.000 | 0.0547 |
Weight Pans
Torque arms include single weight pans. Standard operating procedure is to install the arm, attach the weight pan then zero out the weight pan. Arms also include a wire with a loop on each side so you can supply your own certified hanger with slotted weights.
