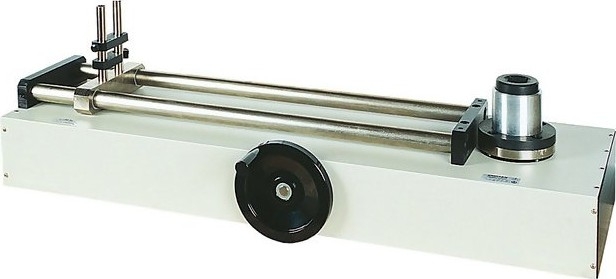

Name: Mountz LB2000F 2000 lb-ft / 2700 Nm Mechanical Torque Loading Bench, # 063300
Brand: Mountz
SKU: 1458
Price: 30800.00 USD
Availability: InStock

Mountz LB2000F 2000 lb-ft / 2700 Nm Mechanical Torque Loading Bench, # 063300

See More Torque Calibration Equipment

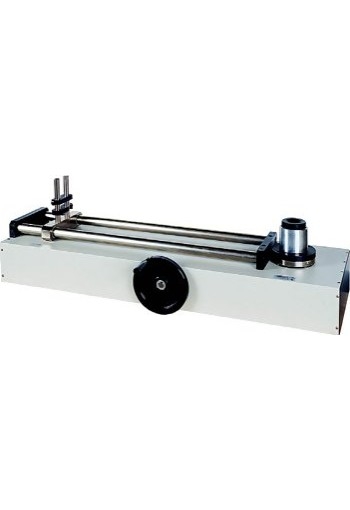

The Mountz LB Series torque calibration system is designed to ensure accurate calibration of torque wrenches.

Torque Sensor Sold Separately

Three models with ranges up to 2000 lbf.ft.

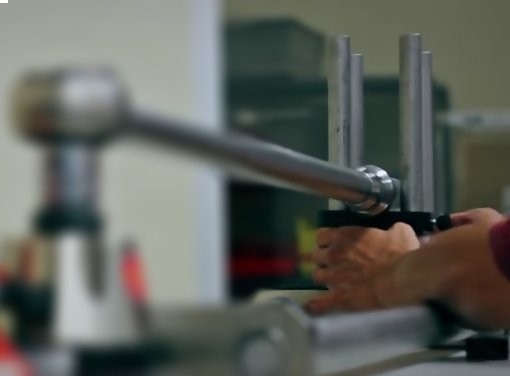

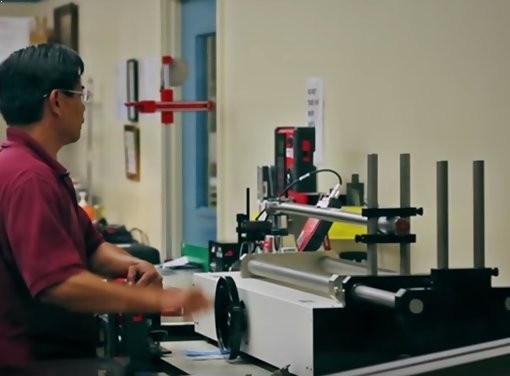

The Mountz LB Series torque loading bench is designed to ensure accurate calibration of torque wrenches. Laboratory grade construction assures accurate torque calibration and pre-setting, independent of human influence or transducer side and end load factors. The drive system assures the load application, eliminating the operator induced test error.Built for durable use, the Loading Bench reduces the operator effort required to attain and sustain torque during the calibration process. Large wheel for smooth manual loading. Operates in both clockwise and counterclockwise directions.

Features

Three models with ranges up to 2000 lbf.ft.
Designed for use with a Mountz BMX torque sensor and torque analyzer
Mountable for bench or a cabinet
Adjustable to fit the size of wrench being tested
Load applied easily and slowly for accurate calibration

Ranges

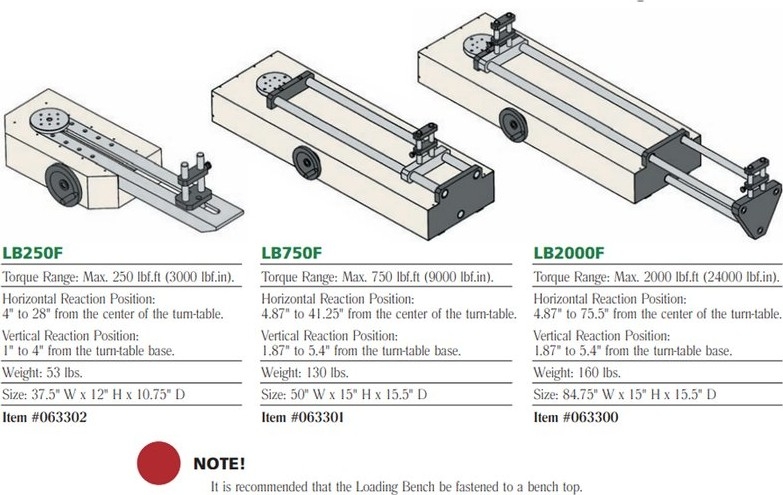

Model	LB250F	LB750F	LB2000F
Torque Capacity	250 lb-ft / 340 Nm	750 lb-ft / 1000 Nm	2000 lb-ft / 2700 Nm
Reaction Position	4" to 28" from center of turn-table	4.87" to 41.25" from center of turn-table	4.87" to 75.5" from center of turn-table
Weight	53 lbs.	130 lbs.	160 lbs.
Dimensions	37.5" W x 12" H x 10.75" D	50" W x 15" H x 15.5" D	84.75" W x 15" H x 15.5" D
