Checkline CTS Adjustable Slipping Torque Screwdriver

See More Torque Screwdrivers

Checkline CTS Adjustable Slipping Torque Screwdriver

3 Ranges up to 50 lb-in

3 Models Ranges Available

CTS-12: 2-12 lb-in (22 - 135 Ncm)
CTS-25: 5-25 lb-in (56 - 280 Ncm)
CTS-50: 10-50 lb-in (113 - 565 Ncm)

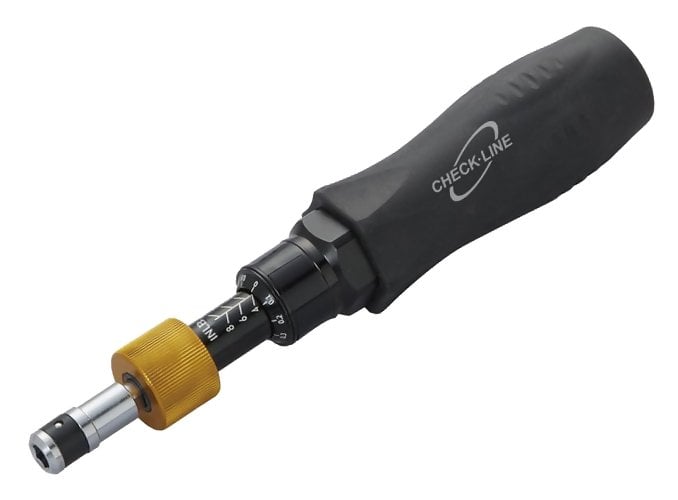

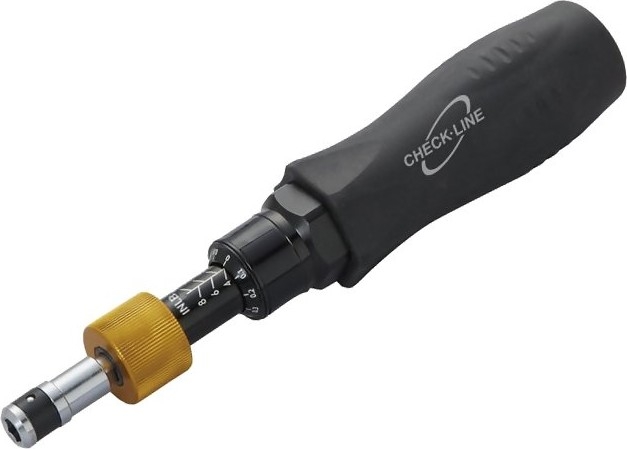

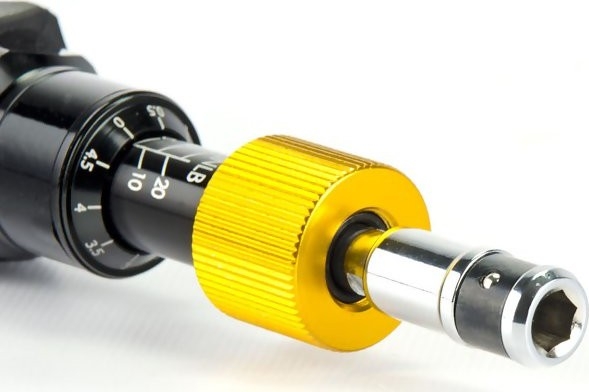

The Checkline CTS is an adjustable torque screwdriver designed for precision assembly applications. A bi-directional cam slips once the set torque is reached making over-tightening impossible.

line
Kit Contents
line

The Checkline CTS Adjustable Slipping Torque Screwdriver includes everything needed for testing:

CTS Adjustable Torque Screwdriver

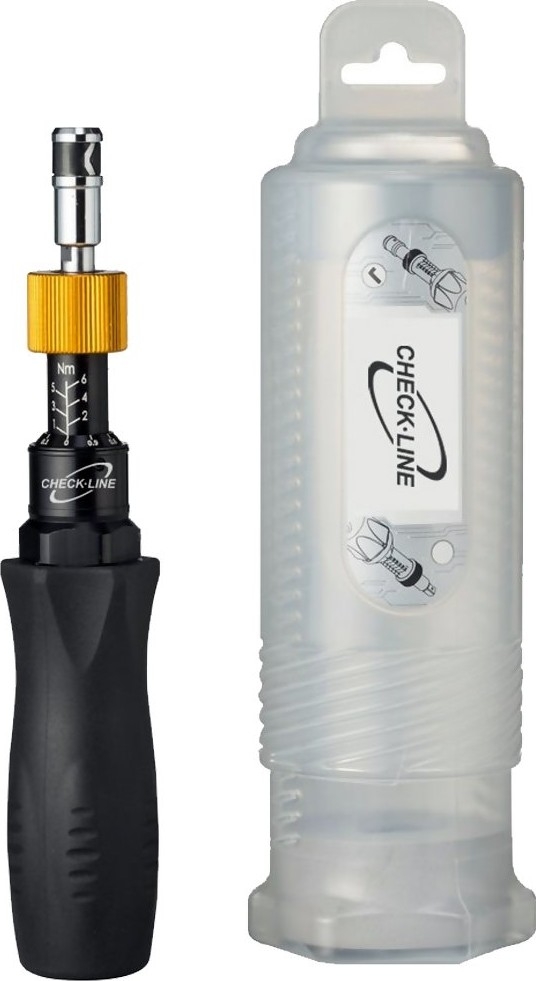

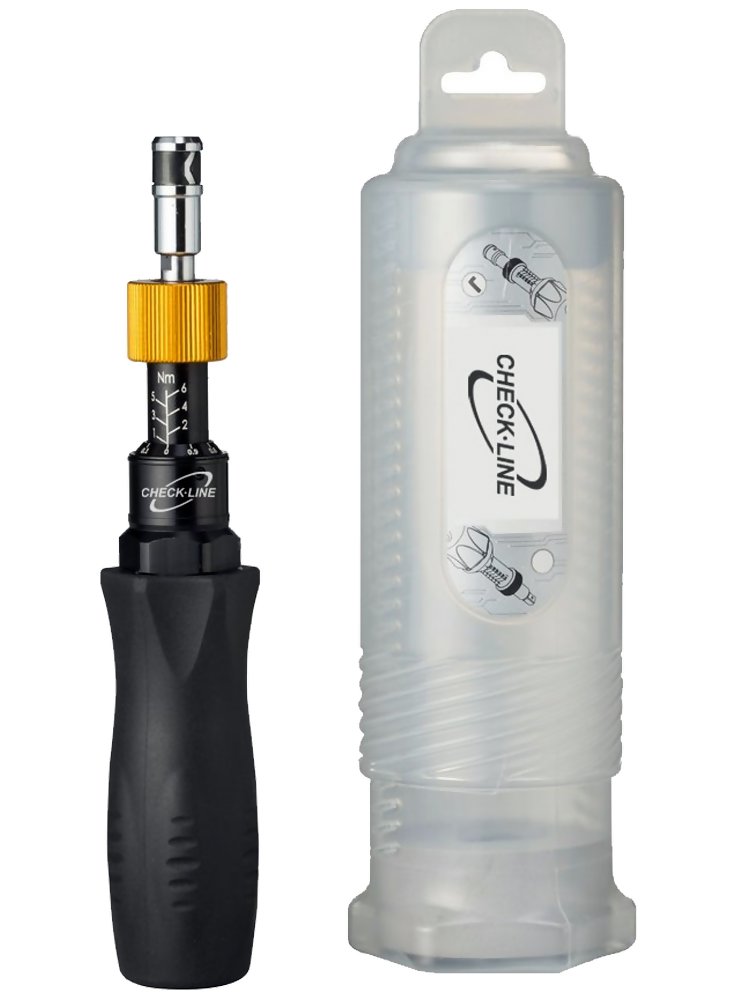

Supplied in a plastic tube
Instruction manual
Calibration certificate

line
Features
line

Includes Calibration Certificate According to DIN ISO 6789

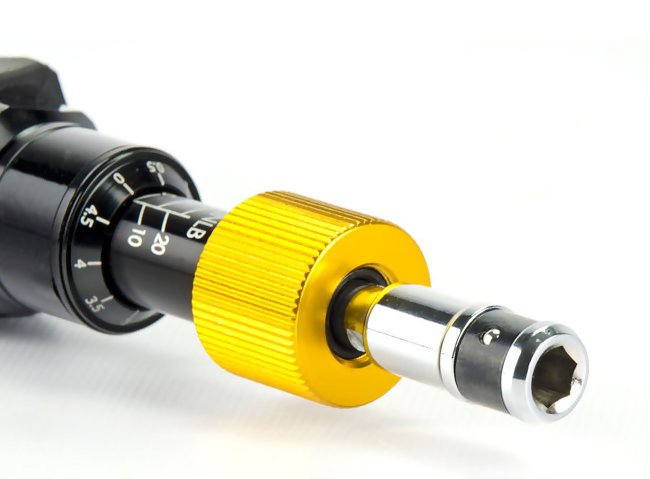

DS Models are Marked in both lb-in and Ncm

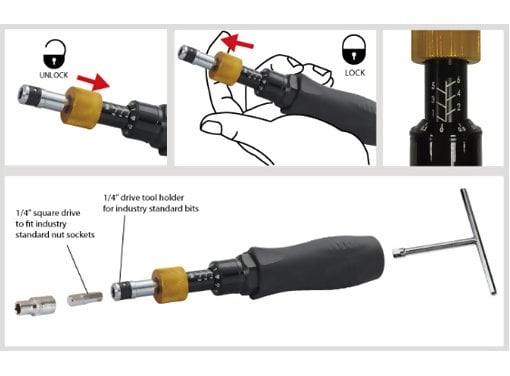

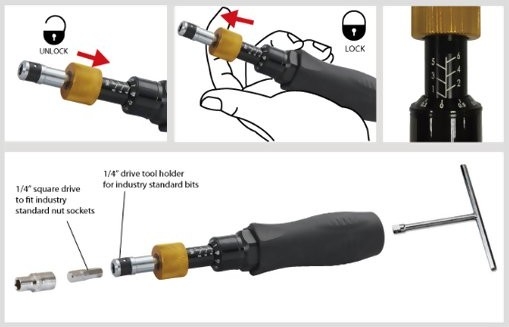

Uses standard 1/4" (6.3mm) hex bits
Clockwise & Counter Clockwise
Ergonomic rubber grip
Precision radial ball clutch and cam
Dial Marked in Lb-in. Nm models available, inquire

line Specifications line

Accuracy	+/-6% in accordance with ISO 6789:2003
Warranty	1 Year
Weight	CTS-12: 8.2 oz / 233 g CTS-25 & CTS-50: 11.9 oz / 338 g
Length	CTS-12: 7.16 in / 182 mm CTS-25 & CTS-50: 7.87 in / 200 mm
Handle Diameter	1.41 in / 36 mm

line
Torque Ranges
line

Model	Ranges	Graduation
CTS-12	2-12 lb-in \| 22 - 135 Ncm	0.1 lb-in
CTS-25	5-25 lb-in \| 56 - 280 Ncm	0.5 lb-in
CTS-50	10-50 lb-in \| 113 - 565 Ncm	1 lb-in
