Digital Torque Screw Driver

2 Ranges up to 90lb-in

Units of measure: lb-in, kg-cm and N-cm (selectable)

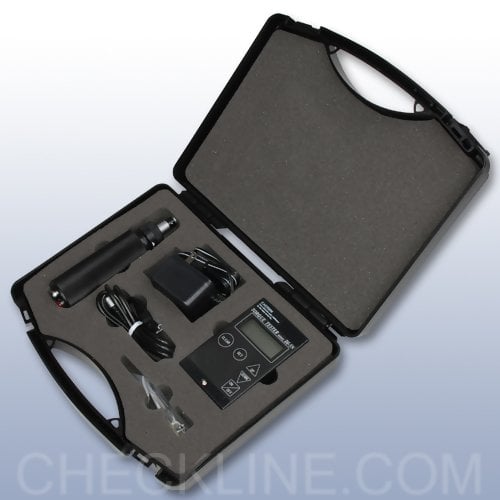

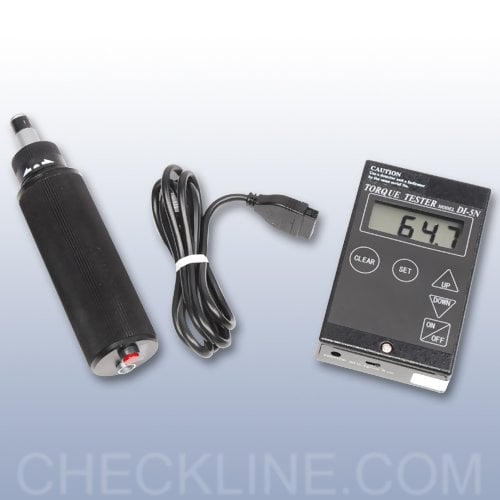

Digital Torque Screwdriver Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens screws up to 90 lbf-in., yet can be used in difficult to reach places. The torque Screwdriver can also be evaluated by comparative tests on a given fastener. Breakaway tests can be performed. This torque screwdriver tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the RS232 port. DI-5N-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. The Torque Screwdriver is sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case

line
Photo Gallery
line

line
Features
line

Ergonomic, light weight, rugged metal construction

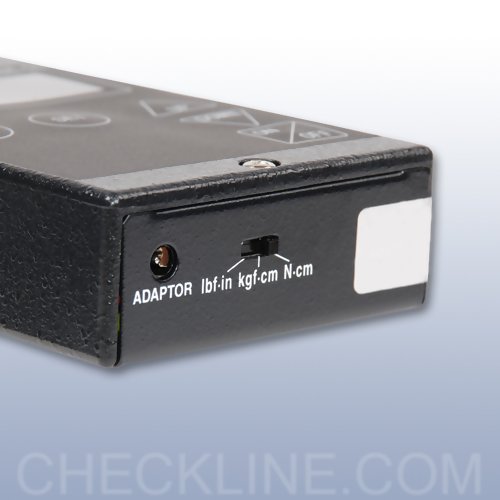

lbf-in, Kgf-cm and N-cm (selectable)
Peak, Real Time and Peak Down measuring mode (selectable)
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
400 peak data memory for recall or for SPC download
Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
Zero reset button on the driver for easy operation
Both clockwise and counterclockwise operation
RS-232 output for SPC capability (peak data only)
Runs on internal NiCad batteries (8 hour use)
Includes NIST-Traceable Calibration Certificate
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty
