Product Description

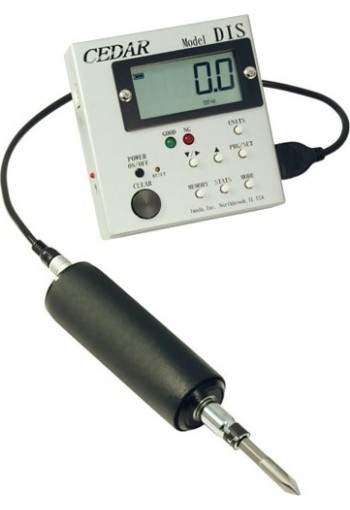

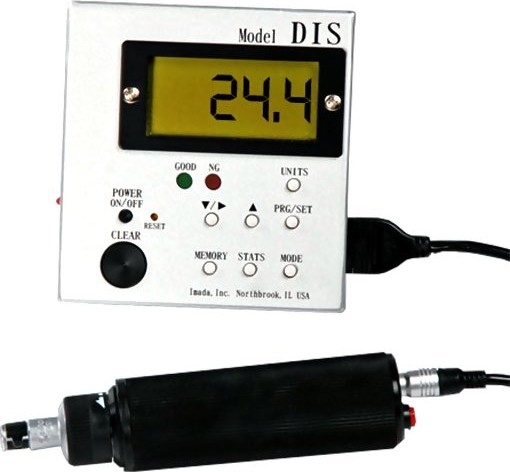

Imada Cedar DIS-RL Digital Torque Screwdriver
3 Ranges up to 90lb-in

Units of measure: lb-in, kg-cm and N-cm (selectable)


The Imada Cedar DIS-RL Digital Torque Screwdriver is an ergonomically designed easy-to-use inspection device or production tool. It measures application or removal torque up to 90 lb-in. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

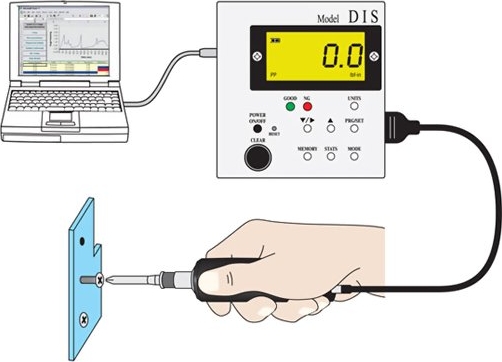

The Imada Cedar DIS-RL has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.

The Imada Cedar DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.


line

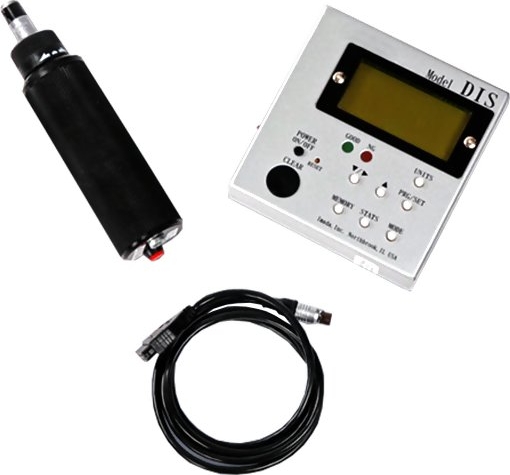

Kit Contents
line

  • Imada Cedar DIS-RL Digital Torque Screwdriver
  • Cable
  • AC adapter / charger
  • Carrying case not included


line
Features
line

  • Ergonomic, light weight, rugged metal construction
  • lbf-in, Kgf-cm and N-cm (selectable)
  • Peak, Real Time and Peak Down measuring mode (selectable)
  • Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
  • 800 peak data memory for recall or for SPC download
  • Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
  • Zero reset button on the driver for easy operation
  • Both clockwise and counterclockwise operation

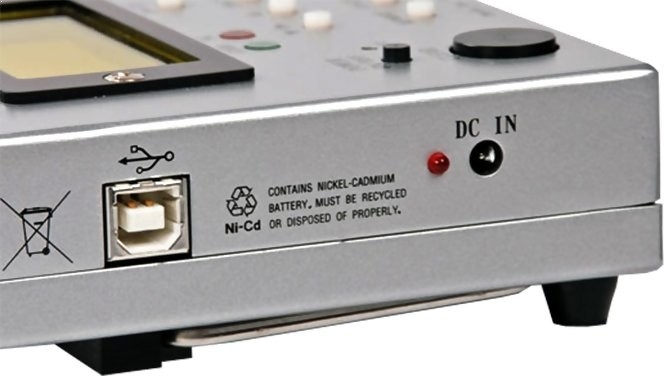

  • USB output for SPC capability
  • Runs on internal NiCad batteries (8 hour use)
  • Includes NIST-Traceable Calibration Certificate
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty
  • Statistics: number of data, Max, Min, Avg
  • CW, CCW ratchet and fixed operation


line
Optional Controller
line

ModelCapacity
DIS-RL050.020 - 4.500 lbf-in | 0.020 - 5.000 kg-cm | 0.20 - 50.00 N-cm
DIS-RL20.10 - 18.00 lbf-in | 0.10 - 20.00 kg-cm | 1.0 - 200.0 N-cm
DIS-RL1010 - 90.00 lbf-in | 1.0 - 100.0 kg-cm | 10 - 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)


line
Related Products
line

G1045
90° Peel Tester

  • Maintains 90° angle between the table and the direction of pull
  • Maximum table travel: 8.2 in (210 mm)
related


line
Downloads
line

Cedar DIS-RL Digital Torque Screwdriver - Instruction Manual

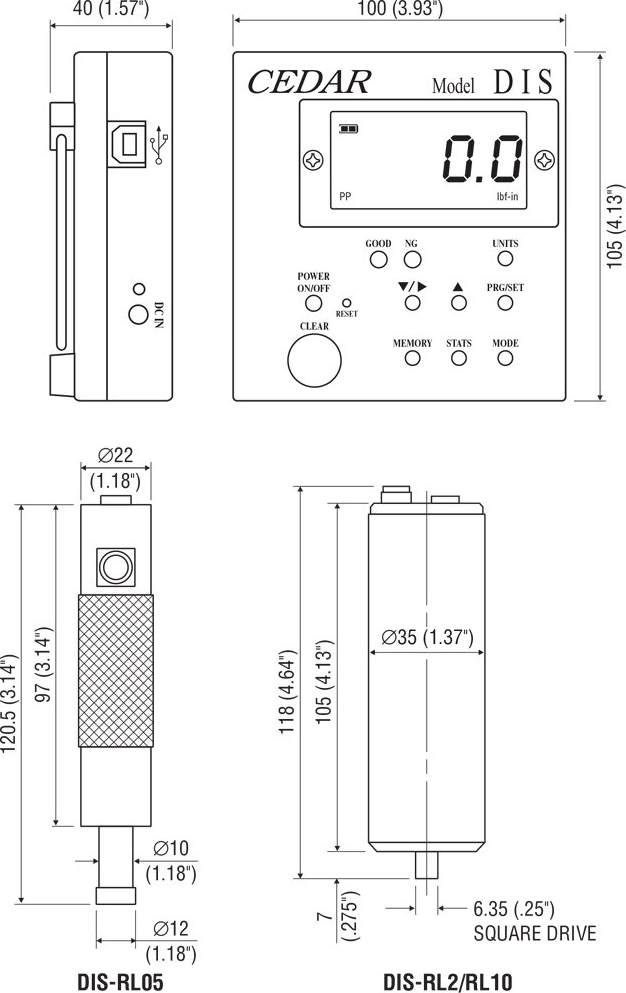

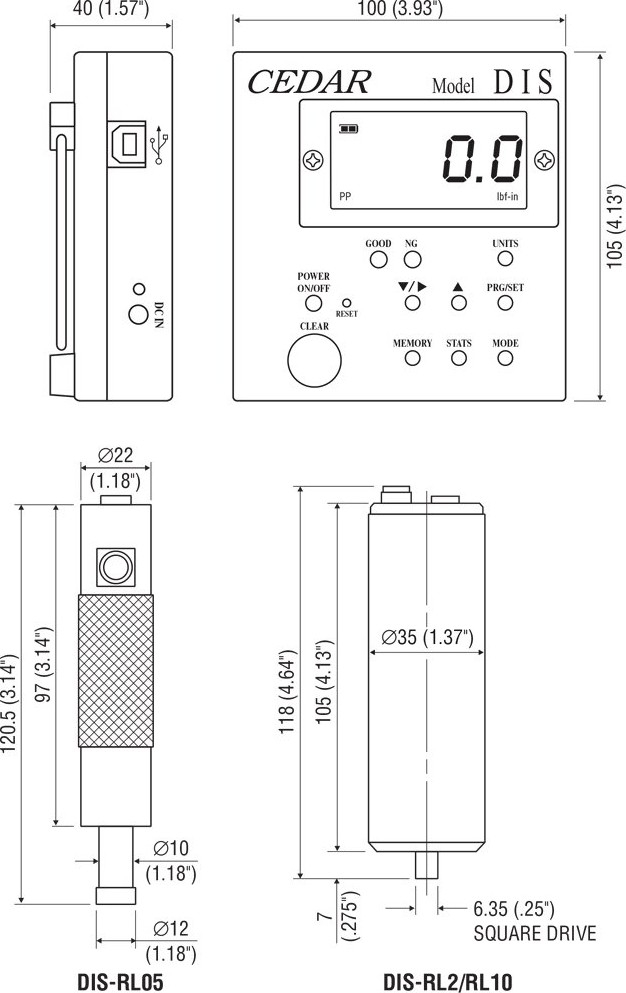

Cedar DIS-RL Digital Torque Screwdriver - Dimension
