Imada Cedar DIS-RL Digital Torque Screwdriver

---

3 Ranges up to 90lb-in

---

Units of measure: lb-in, kg-cm and N-cm (selectable)

---

The Imada Cedar DIS-RL Digital Torque Screwdriver is an ergonomically designed easy-to-use inspection device or production tool. It measures application or removal torque up to 90 lb-in. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

The Imada Cedar DIS-RL has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.

The Imada Cedar DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.

Kit Contents

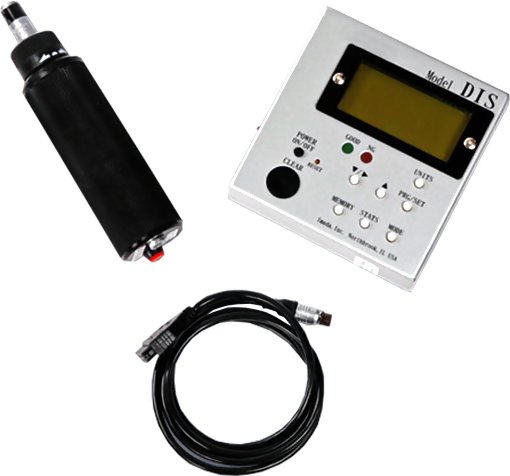

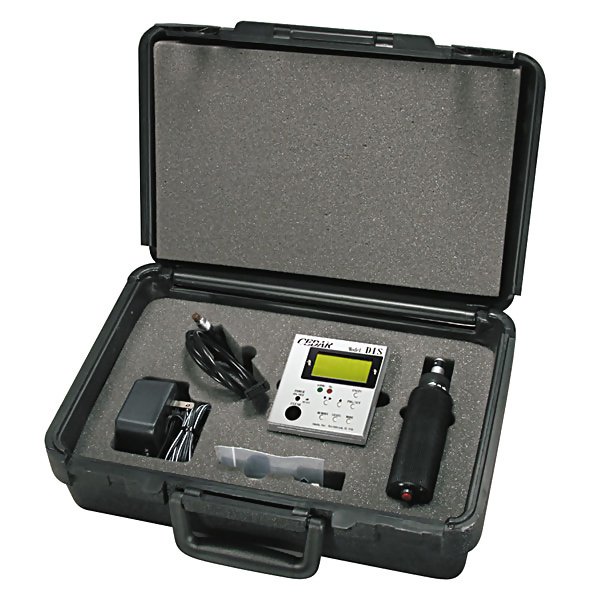

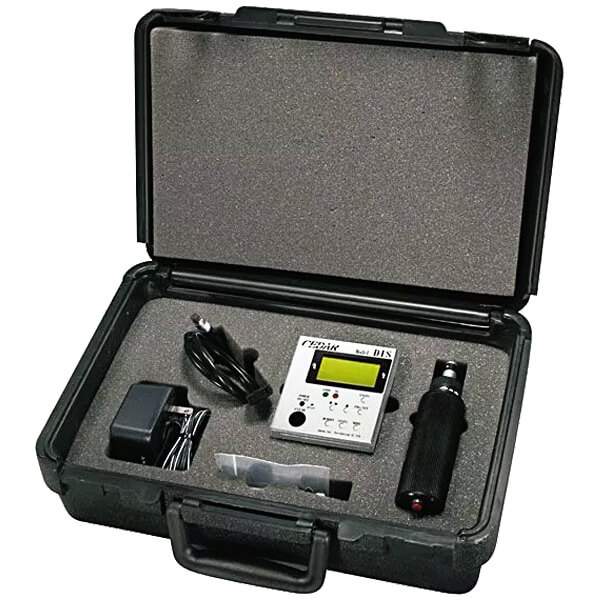

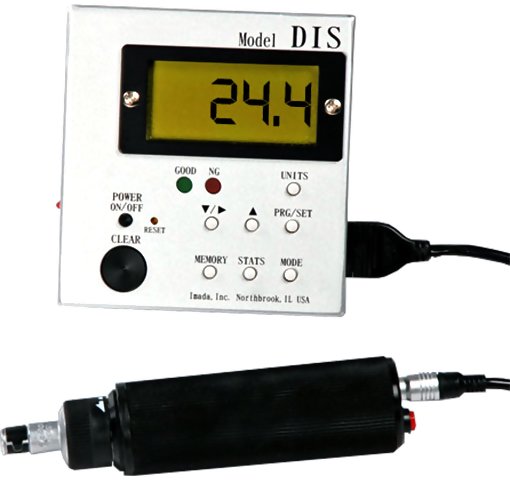

Imada Cedar DIS-RL Digital Torque Screwdriver Cable AC adapter / charger Carrying case not included

Features

• Ergonomic, light weight, rugged metal construction
• lbf-in, Kgf-cm and N-cm (selectable)
• Peak, Real Time and Peak Down measuring mode (selectable)
• Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
• 800 peak data memory for recall or for SPC download
• Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
• Zero reset button on the driver for easy operation
• Both clockwise and counterclockwise operation

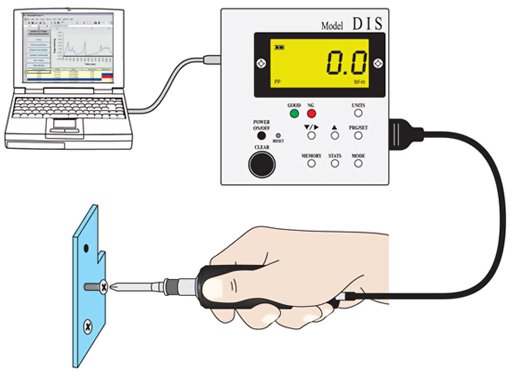

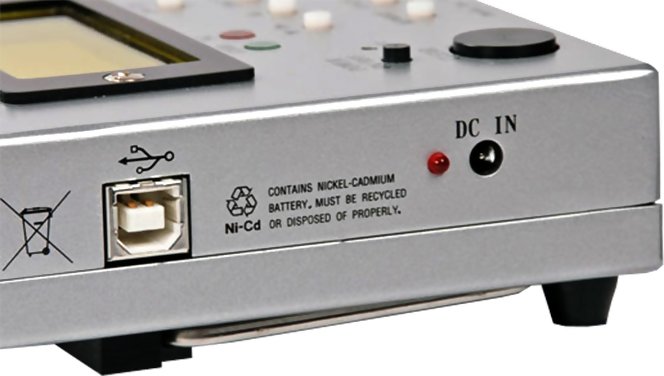

• USB output for SPC capability
• Runs on internal NiCad batteries (8 hour use)
• Includes NIST-Traceable Calibration Certificate
• ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
• 2 Year Warranty
• Statistics: number of data, Max, Min, Avg
• CW, CCW ratchet and fixed operation

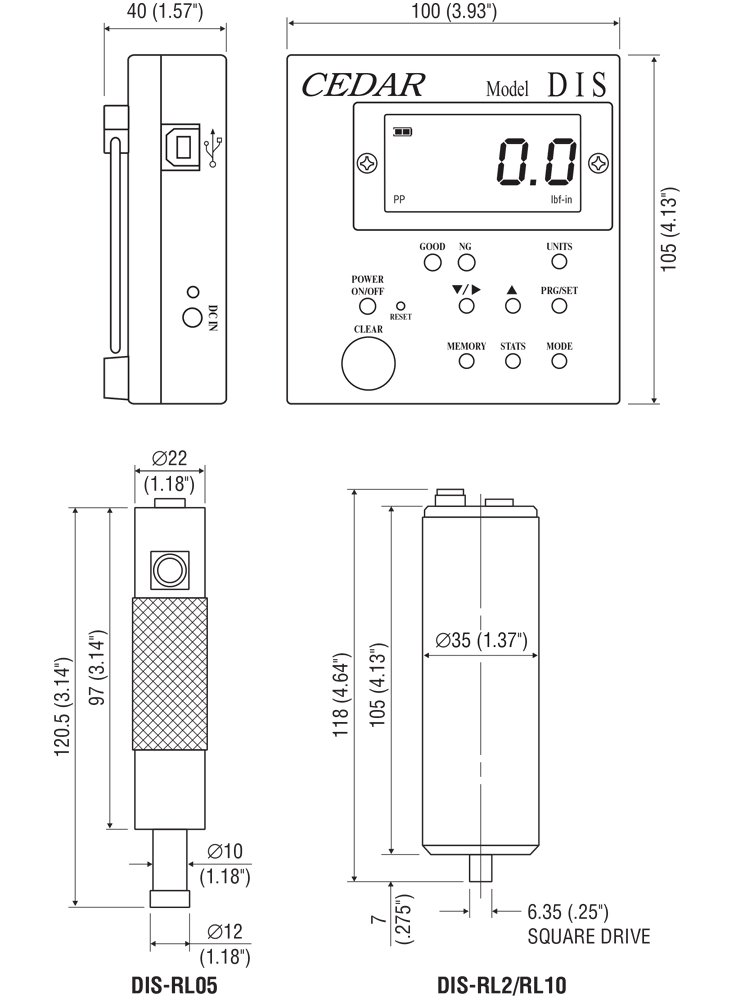

Optional Controller

Model	Capacity
DIS-RL05	0.020 - 4.500 lbf-in | 0.020 - 5.000 kg-cm | 0.20 - 50.00 N-cm
DIS-RL2	0.10 - 18.00 lbf-in | 0.10 - 20.00 kg-cm | 1.0 - 200.0 N-cm
DIS-RL10	10 - 90.00 lbf-in | 1.0 - 100.0 kg-cm | 10 - 1000 N-cm

Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
