Selectable units: ozf-in, lbf-in, kgf-cm, N-m and cN-m

---

400 data internal memory for torque data can be recalled and managed

---

Accuracy: ±1% F.S. ±1 LSD

---

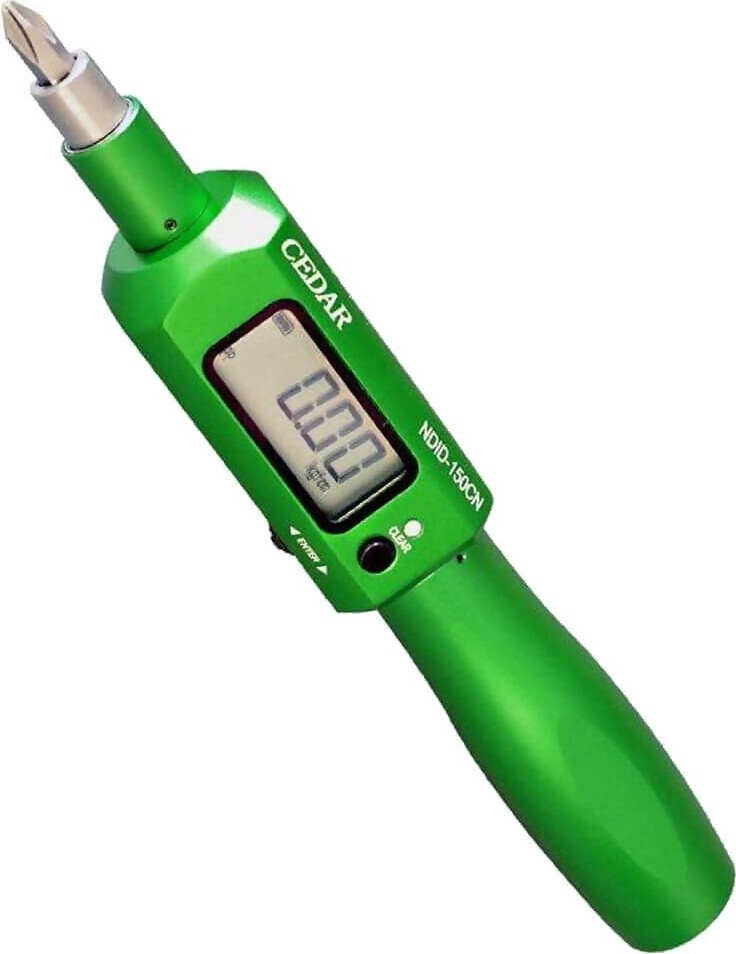

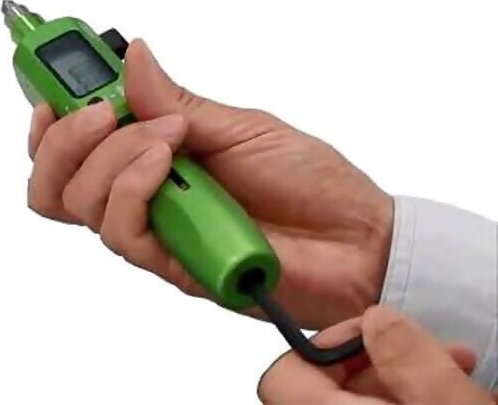

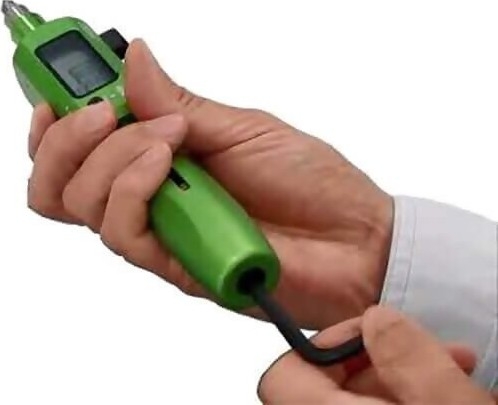

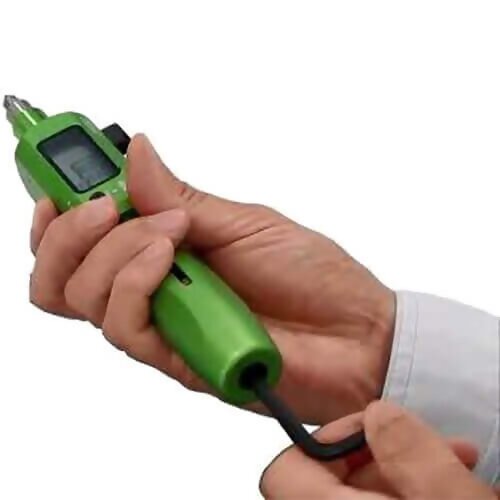

The Imada Cedar NDID-150CN Adjustable Torque Screwdriver features the simplicity of a click-type torque tool combined with easy visual confirmation and data collection. The torque limiting clutch slips (clicks) at the preset torque point and unlike typical click-type tools, more torque cannot be applied. The torque point is set on an analog scale using the included hex wrench and marks on the driver handle. Confirm the preset torque point by applying torque until the clutch slips, and checking the peak torque on the LCD display.

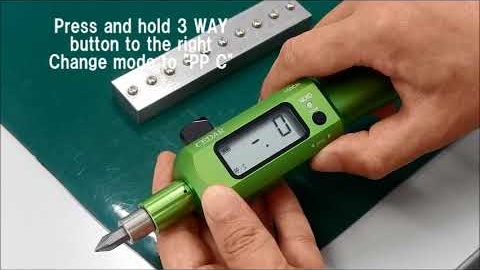

Use the three way program dial to select peak or real time mode, units, Go/No Go High and Low, Auto Zero, etc. Capture and recall up to 400 torque data in internal memory and save them to USB memory for transfer to a PC. When Go/No Go High and Low are set the LED indicator lights green for between the High and Low and red for under or over. Accuracy is ± 1% F.S., ±1 LSD. The torque driver is powered by an NiMH rechargeable battery.

Kit Contents

Calibration Certificate Inspection Sheet Traceability Chart A/C Adaptor USB Flash Memory 2 Bits Hex wrench Convenient rechargeable battery

Features

• When the torque limiting clutch slips at the preset torque point, the torque sensor captures the actual slip torque on the LCD display.
• The torque point is set on an analog scale not digital. The digital display shows the actual slip torque at the torque point.

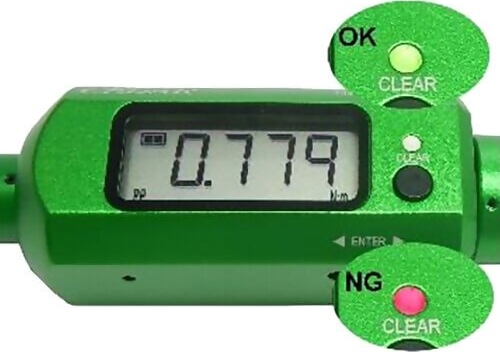

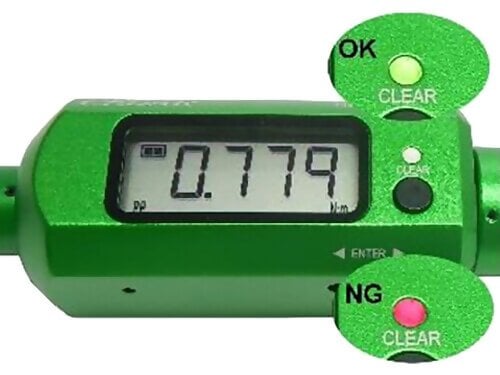

• Go/No Go LED indicator and audible alert
• Selectable units: ozf-in, lbf-in, kgf-cm, N-m and cN-m
• Peak and Real Time modes (selectable)
• Rechargeable NiMH batteries (3 hour use)
• 400 data internal memory for torque data can be recalled and managed
• Save stored tightening torque data to USB memory for transfer to PC
• Ergonomic, light weight, rugged metal construction
• Accuracy: ±1% F.S. ±1 LSD

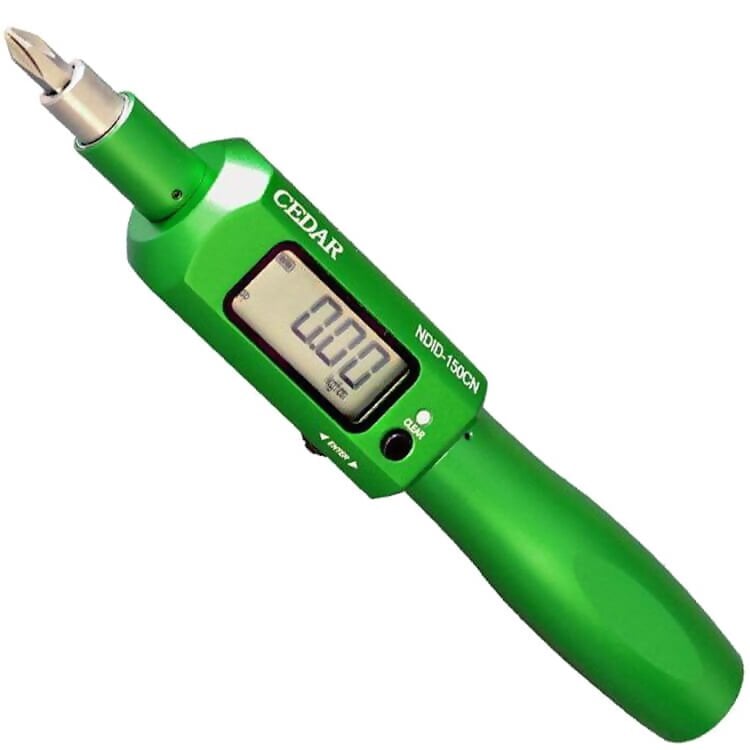

• NDID-150cN includes 2 Phillips tips, hex wrench, AC adapter/charger, USB memory stick, calibration cert traceable to NIST and carrying case

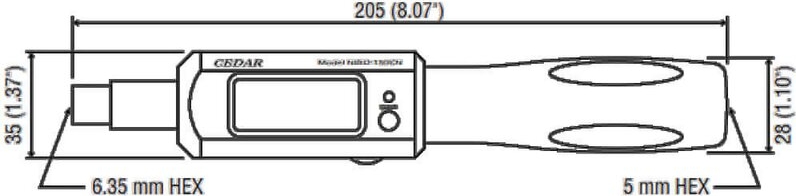

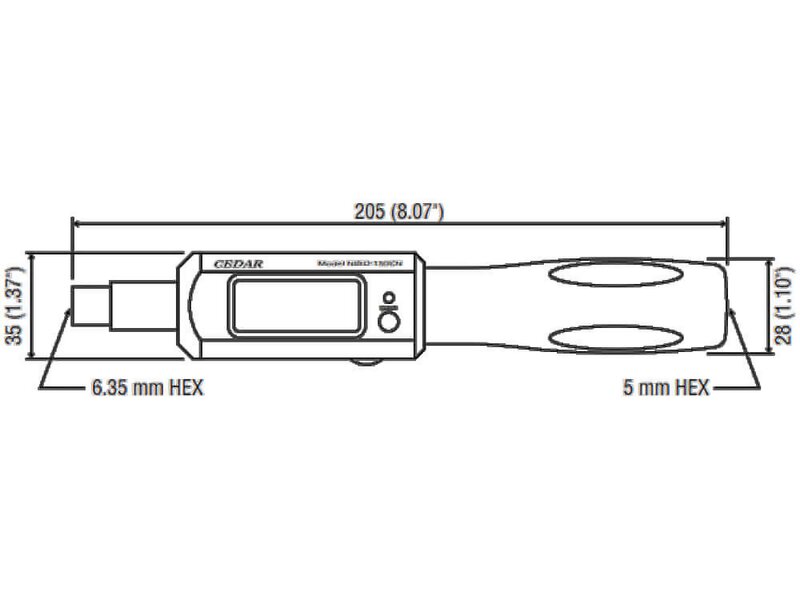

Specifications

Ranges

Downloads

Imada Cedar NDID Adjustable Torque Screwdriver - Data Sheet
