Name: Mountz TT500FH Dial Measuring Torque Screwdriver, Range 8 - 40 in.lbs, Drive 1/4" F/Hex - Gedore 017700
Rating: 5.0 (3 reviews)

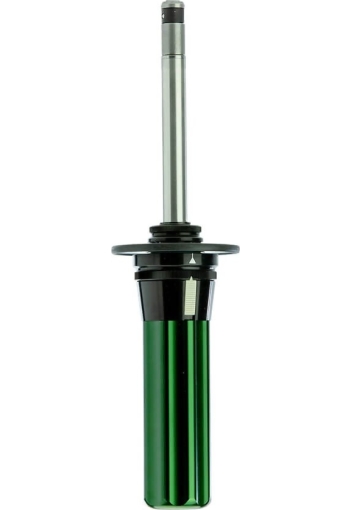

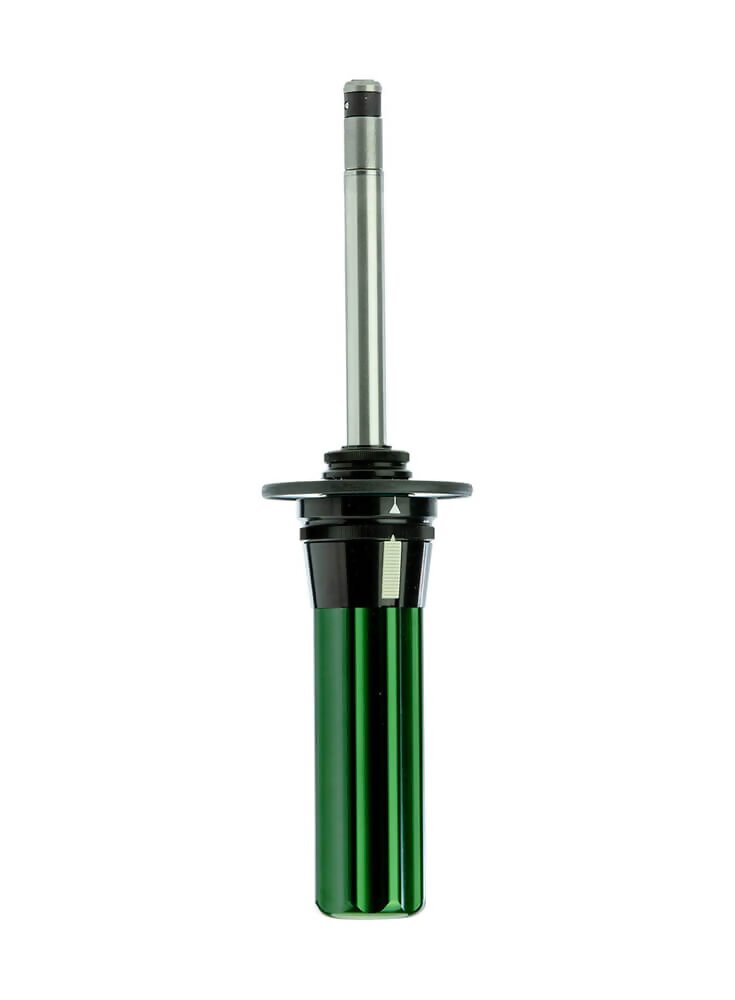

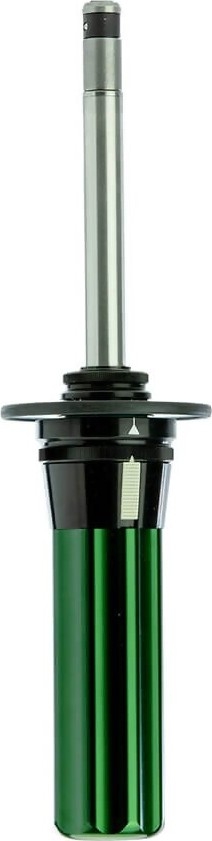

Mountz TT500FH Dial Measuring Torque Screwdriver, Range 8 - 40 in.lbs, Drive 1/4" F/Hex - Gedore 017700

See More Torque Screwdrivers

Mountz Gedore TT Dial Torque Screwdriver

4 Models up to 40 lbs-in

Mountz Gedore TT Dial Torque Screwdriver measuring torque screwdrivers can be used to monitor torque as it increases or decreases or to display peak torque applied.

The Mountz Gedore TT Dial Torque Screwdriver is designed for precision assembly and quality control applictions. A dial indicator displays real time application and removal torque. Memory system holds maximum torque reached.

Features

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789:2003 (+/- 6% of indicated reading).
Flat tension spring is used to give the best linear characteristics in both directions.
Quality constructed with stainless steel shafts, attractive colored aluminum handles and sturdy dials for maximum tool life
Dual American and S.I. graduated scales

Force Ranges

	Range			Graduation
Model	American	S.I.	American	S.I.	Drive
TT50	14 – 70 ozf.in	10 – 50 cN.m	2 ozf.in	2 cN.m	1/4" F/Hex
TT100	28 – 140 ozf.in	20 – 100 cN.m	5 ozf.in	5 cN.m	1/4” F/Hex
TT250	4 – 20 in.lbs	50 – 250 cN.m	0.5 lbf.in	10 cN.m	1/4" F/Hex
TT500	8 – 40 in.lbs	100 – 500 cN.m	1 lbf.in	20 cN.m	1/4" F/Hex

The precision torque demanded for assembling surgical instruments was critical for a medical manufacturer. The "TT" dial measuring screwdrivers provided the solution.
