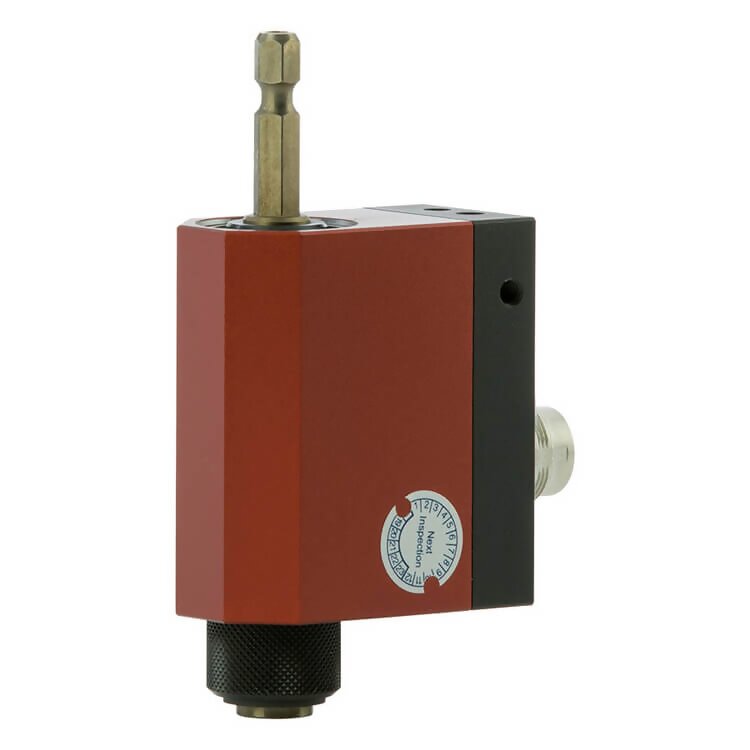

Mountz BLRTSX100i-H Brushless Rotary Torque Transducer, Range 10 - 100 Lb-in, Drive 1/4", # 170231

See More Torque Sensors

Mountz BLRTSX100i-H Brushless Rotary Torque Transducer, Range 10 - 100 Lb-in, Drive 1/4", # 170231

See More Torque Sensors
Price:
$4,950.00
    warrenty

    Product Description
    Mountz BLRTSX Brushless Rotary Torque Transducer
    Various models that range from 10 ozf-in to 738 lbf-ft/ 7cN-m to 1000 N-m
    For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.

    The Mountz BLRTSX Brushless Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications.

    The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.

    The Mountz BLRTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.

    Features an instant auto-recognition system of the BLRTSX connected to the PTT.


    line
    Features
    line

    • Accuracy +/-.25% of full scale
    • Use with most hand tools, power tools or rotational measurement applications
    • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer
    • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener
    • Bi-directional


    line
    Specifications
    line

    Output at Rated Capacity> 6 Nm [53 lbf.in] rated torque 2 mV/V
    InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
    Nonlinearity+0.2% FS
    Excitation Recommended10V DC or AC RMS
    Bridge Resistance350 ohms
    Usable Temperature Range41-122 degrees F
    Safe Overload125% of rated output


    line
    Torque Ranges
    line

    ModelRangeInput DriveOutput Drive
    BLRTSX28z-H10 - 28 Oz-in1/4" M/Hex1/4" F/Hex
    BLRTSX70z-H10 -70 Oz-in1/4" M/Hex1/4" F/Hex
    BLRTSX140z-H25 - 140 Oz-in1/4" M/Hex1/4" F/Hex
    BLRTSX18i-H2 - 18 Lb-in1/4" M/Hex1/4" F/Hex
    BLRTSX50i-H5 - 50 Lb-in1/4" M/Hex1/4" F/Hex
    BLRTSX50i5 - 50 Lb-in1/4" F/Sq1/4" M/Sq
    BLRTSX100i-H10 - 100 Lb-in1/4" M/Hex1/4" F/Hex
    BLRTSX100i10 - 100 Lb-in1/4" F/Sq1/4" M/Sq
    BLRTSX160i-H16 - 160 Lb-in1/4" M/Hex1/4" F/Hex
    BLRTSX160i16 - 160 Lb-in1/4" F/Sq1/4" M/Sq
    BLRTSX18F2 - 18 Lb-ft3/8" F/Sq3/8" M/Sq
    BLRTSX36F4 - 36 Lb-ft3/8" F/Sq3/8" M/Sq
    BLRTSX73F8 - 73 Lb-ft1/2" F/Sq1/2" M/Sq
    BLRTSX118F12 - 118 Lb-ft1/2" F/Sq1/2" M/Sq
    BLRTSX184F19 - 184 Lb-ft3/4" F/Sq3/4" M/Sq
    BLRTSX368F37 - 368 Lb-ft3/4" F/Sq3/4" M/Sq
    BLRTSX738F74 - 738 Lb-ft1" F/Sq1" M/Sq

    The available engineering units of measurement on the BLRTSX Rotary Torque Transducers are oz-in, lb-in, lb-ft, cN-m and N-m.
