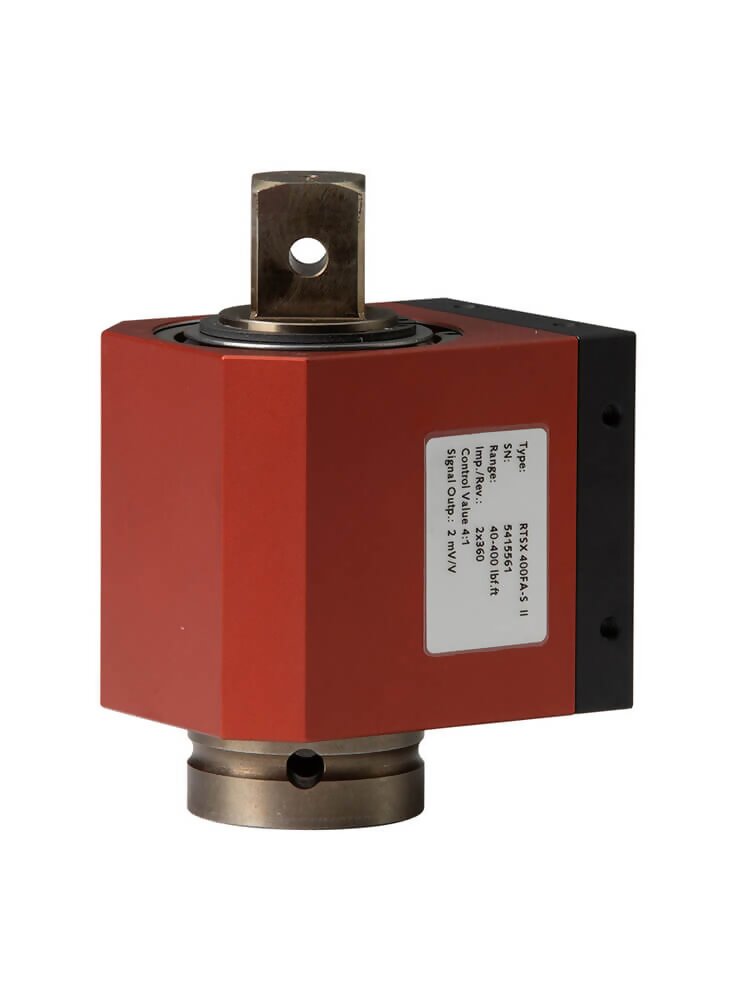

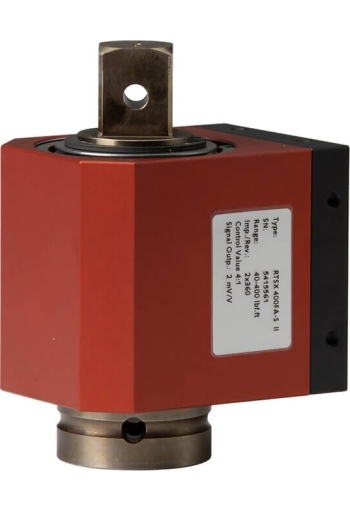

Mountz BLRTSX Brushless Rotary Torque Transducer

---

Various models that range from 10 ozf-in to 738 lbf-ft/ 7cN-m to 1000 N-m

---

For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.

---

The Mountz BLRTSX Brushless Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications.

The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.

The Mountz BLRTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.

Features an instant auto-recognition system of the BLRTSX connected to the PTT.

Features

• Accuracy +/-.25% of full scale
• Use with most hand tools, power tools or rotational measurement applications
• The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer
• Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener
• Bi-directional

Specifications

Output at Rated Capacity	> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability	Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity	+0.2% FS
Excitation Recommended	10V DC or AC RMS
Bridge Resistance	350 ohms
Usable Temperature Range	41-122 degrees F
Safe Overload	125% of rated output

Torque Ranges

The available engineering units of measurement on the BLRTSX Rotary Torque Transducers are oz-in, lb-in, lb-ft, cN-m and N-m.
