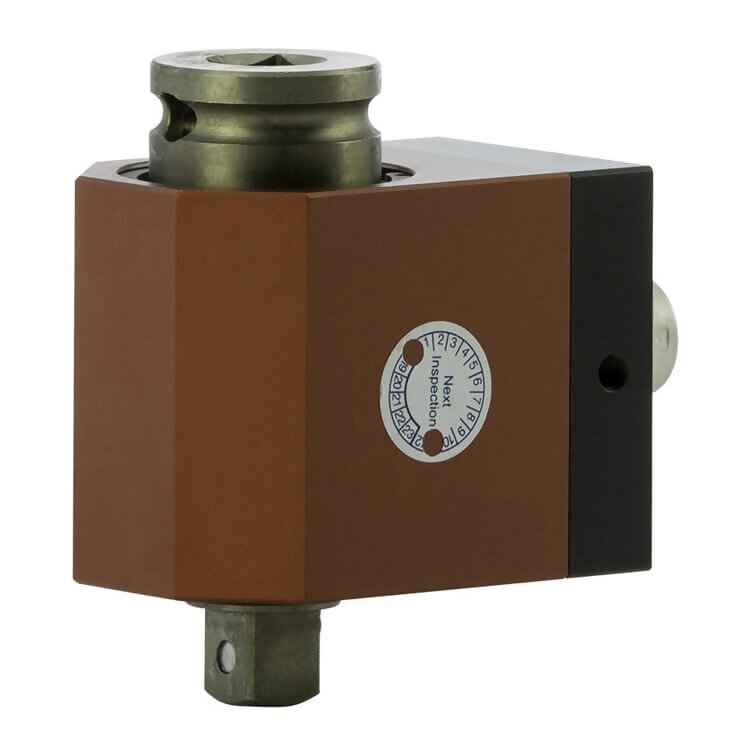

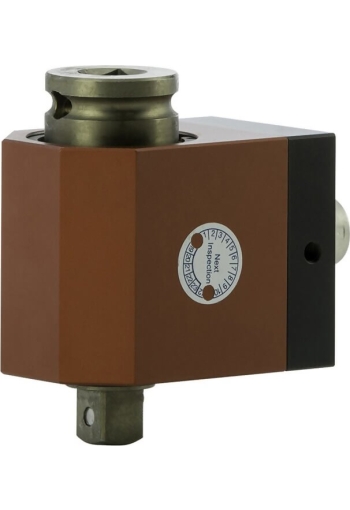

Mountz BLRTSX36F Brushless Rotary Torque Transducer, Range 4 - 36 Lb-ft, Drive 3/8", # 170236

See More Torque Sensors

Mountz BLRTSX36F Brushless Rotary Torque Transducer, Range 4 - 36 Lb-ft, Drive 3/8", # 170236

See More Torque Sensors
Price:
$5,088.00
warrenty

Product Description
Mountz BLRTSX Brushless Rotary Torque Transducer
Various models that range from 10 ozf-in to 738 lbf-ft/ 7cN-m to 1000 N-m
For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.

The Mountz BLRTSX Brushless Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications.

The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.

The Mountz BLRTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.

Features an instant auto-recognition system of the BLRTSX connected to the PTT.


line
Features
line

  • Accuracy +/-.25% of full scale
  • Use with most hand tools, power tools or rotational measurement applications
  • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener
  • Bi-directional


line
Specifications
line

Output at Rated Capacity> 6 Nm [53 lbf.in] rated torque 2 mV/V
InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
Nonlinearity+0.2% FS
Excitation Recommended10V DC or AC RMS
Bridge Resistance350 ohms
Usable Temperature Range41-122 degrees F
Safe Overload125% of rated output


line
Torque Ranges
line

ModelRangeInput DriveOutput Drive
BLRTSX28z-H10 - 28 Oz-in1/4" M/Hex1/4" F/Hex
BLRTSX70z-H10 -70 Oz-in1/4" M/Hex1/4" F/Hex
BLRTSX140z-H25 - 140 Oz-in1/4" M/Hex1/4" F/Hex
BLRTSX18i-H2 - 18 Lb-in1/4" M/Hex1/4" F/Hex
BLRTSX50i-H5 - 50 Lb-in1/4" M/Hex1/4" F/Hex
BLRTSX50i5 - 50 Lb-in1/4" F/Sq1/4" M/Sq
BLRTSX100i-H10 - 100 Lb-in1/4" M/Hex1/4" F/Hex
BLRTSX100i10 - 100 Lb-in1/4" F/Sq1/4" M/Sq
BLRTSX160i-H16 - 160 Lb-in1/4" M/Hex1/4" F/Hex
BLRTSX160i16 - 160 Lb-in1/4" F/Sq1/4" M/Sq
BLRTSX18F2 - 18 Lb-ft3/8" F/Sq3/8" M/Sq
BLRTSX36F4 - 36 Lb-ft3/8" F/Sq3/8" M/Sq
BLRTSX73F8 - 73 Lb-ft1/2" F/Sq1/2" M/Sq
BLRTSX118F12 - 118 Lb-ft1/2" F/Sq1/2" M/Sq
BLRTSX184F19 - 184 Lb-ft3/4" F/Sq3/4" M/Sq
BLRTSX368F37 - 368 Lb-ft3/4" F/Sq3/4" M/Sq
BLRTSX738F74 - 738 Lb-ft1" F/Sq1" M/Sq

The available engineering units of measurement on the BLRTSX Rotary Torque Transducers are oz-in, lb-in, lb-ft, cN-m and N-m.


line
Related Products
line

PTT
Torque Analyzer

  • Operates with Torque & Force sensors
  • Real time graph of torque vs. time using associated PC Windows software
related

line

LTT
Torque and Angle Analyzer

  • Built-in Tool Tests operation
  • Recommended for all hand screwdrivers, wrenches or power tools
related
