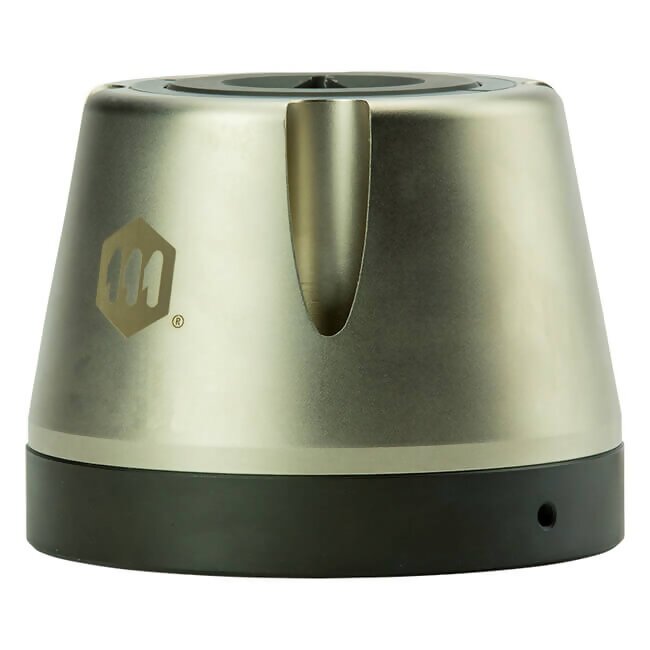

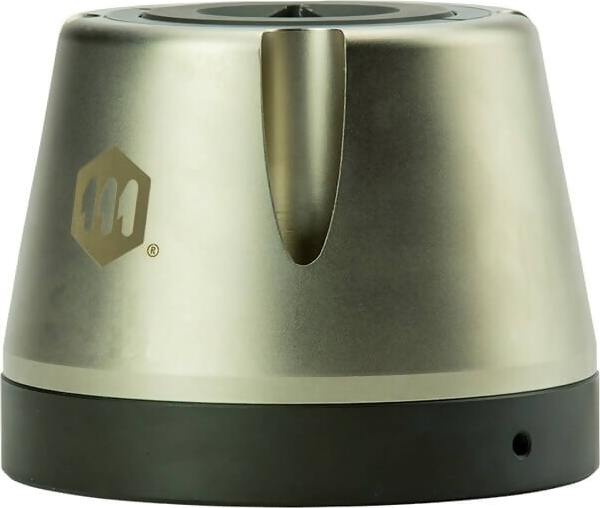

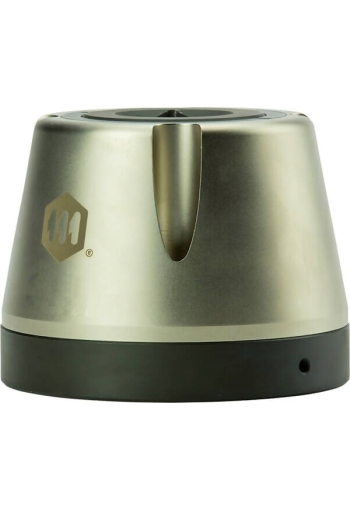

Torque Transducer
Various models that range from 2 ozf.in to 20000 lbs-ft.
For calibrating hand screwdrivers, wrenches, and power tools.
The BMX torque transducer is designed to meet the requirement of testing multiple torque ranges for various torque tools used in production, maintenance and calibration labs, the versatile torque sensor is used in conjunction with a digital torque display. The torque sensor is a bench mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric & pneumatic screwdriver calibration. Controlling torque is essential for companies to ensure their product's quality, safety and reliability isn't compromised.
Features
- Supplied with ISO 17025 Certification of Calibration
- Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
- Female square drive.
- Bi-directional measurement
- Mounting brackets available, optional
Specifications
| BMX Transducer | Specifications |
| Rated Output | 2mv/v Nominal |
| Safe Overload | 125% of Rated Output |
| Bridge Resistance | 350 Ohms Nominal |
| Nonlinearity | ± .1% of Rated Output |
Torque Ranges
The available engineering units of measurement on the BMX Torque Transducers are oz-in, lb-ft, cN-m and N-m.
