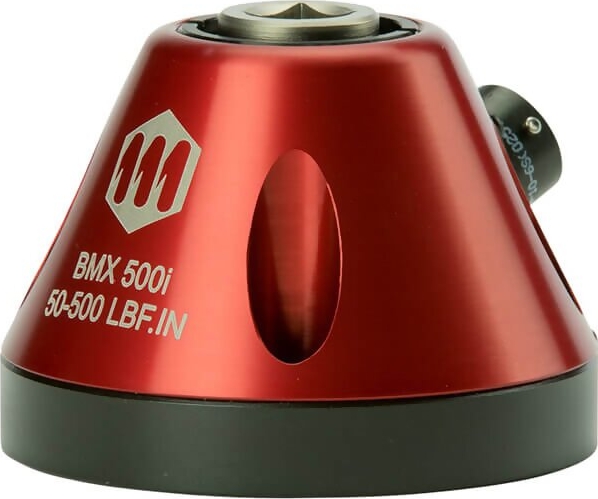

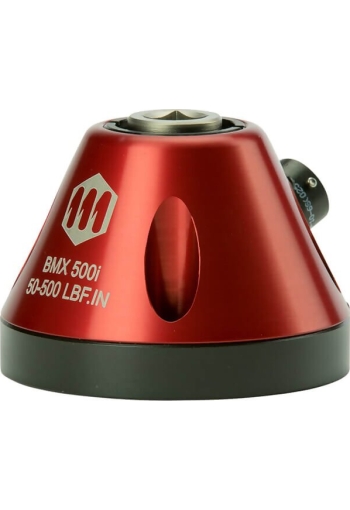

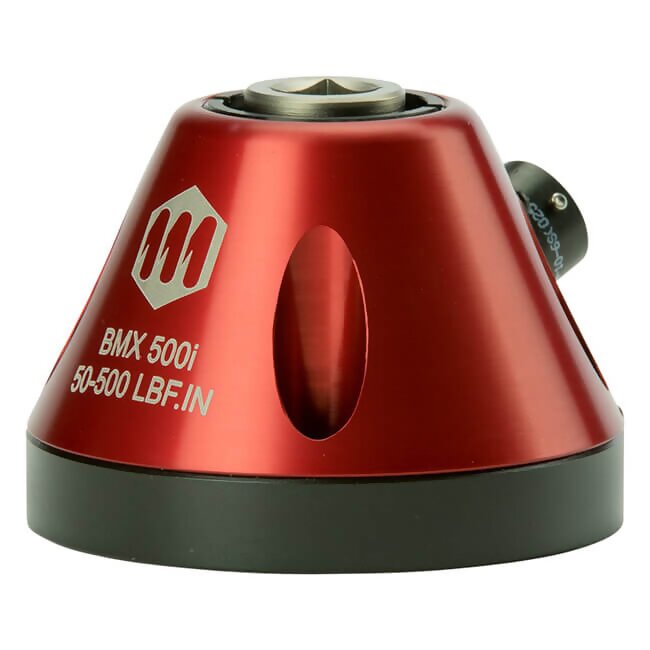

Mountz BMX500i Torque Reaction Transducer, Range 50 -500 Lb-in, Drive Size 3/8", # 077008

See More Torque Sensors

Mountz BMX500i Torque Reaction Transducer, Range 50 -500 Lb-in, Drive Size 3/8", # 077008

See More Torque Sensors
Price:
$2,283.00
    warrenty

    Product Description
    Torque Transducer
    Various models that range from 2 ozf.in to 20000 lbs-ft.
    For calibrating hand screwdrivers, wrenches, and power tools.

    The BMX torque transducer is designed to meet the requirement of testing multiple torque ranges for various torque tools used in production, maintenance and calibration labs, the versatile torque sensor is used in conjunction with a digital torque display. The torque sensor is a bench mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric & pneumatic screwdriver calibration. Controlling torque is essential for companies to ensure their product's quality, safety and reliability isn't compromised.


    line
    Features
    line

    • Supplied with ISO 17025 Certification of Calibration
    • Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
    • Female square drive.
    • Bi-directional measurement
    • Mounting brackets available, optional


    line
    Specifications
    line

    BMX TransducerSpecifications
    Rated Output2mv/v Nominal
    Safe Overload125% of Rated Output
    Bridge Resistance350 Ohms Nominal
    Nonlinearity± .1% of Rated Output


    line
    Torque Ranges
    line

    ModelAmericanS.I.MetricDrive Size
    BMX20z2 - 20 ozf.in1.5 - 14 cN.m0.1 - 1.4 kgf.cm1/4" F/Sq
    BMX40z4 - 40 ozf.in2.9 - 28.2 cN.m0.3 - 2.9 kgf.cm1/4" F/Sq
    BMX80z8 - 80 ozf.in5.7 - 56.5 cN.m0.6 - 5.8 kgf.cm1/4" F/Sq
    BMX10i1 - 10 lbf.in11.3 - 113 cN.m1.2 - 11.5 kgf.cm1/4" F/Sq
    BMX25i2.5 - 25 lbf.in28.25 - 282.5 cN.m2.9 - 28.8 kgf.cm1/4" F/Sq
    BMX50i5 - 50 lbf.in56.5 - 565 cN.m5.5 - 57.6 kgf.cm1/4" F/Sq
    BMX100i10 - 100 lbf.in113 - 1130 cN.m11.5 - 115 kgf.cm1/4" F/Sq
    BMX250i25 - 250 lbf.in282.5 - 2825 cN.m28.8 - 288 kgf.cm1/4" F/Sq
    BMX500i50 - 500 lbf.in565 - 5650 cN.m57.6 - 575 kgf.cm3/8" F/Sq
    BMX750i75 - 750 lbf.in847 - 8473 cN.m86.3 - 863.5 kgf.cm3/8" F/Sq
    BMX50F5 - 50 lbf.ft6.8 - 67.8 N.m0.7 - 6.9 kgf.m3/8" F/Sq
    BMX100F10 - 100 lbf.ft13.56 - 135.6 N.m1.4 - 13.8 kgf.m1/2" F/Sq
    BMX250F25 - 250 lbf.ft33.9 - 339 N.m3.5 - 34.5 kgf.m1/2" F/Sq
    BMX500F50 - 500 lbf.ft67.8 - 678 N.m6.9 - 69 kgf.m3/4" F/Sq
    BMX1000F100 - 1000 lbf.ft135.6 - 1355 N.m13.8 - 138 kgf.m1" F/Sq
    BMX2500F
    250 - 2500 lbf.ft339 - 3389 N.m34.5 - 345 kgf.m1 1/2" F/Sq
    BMX5000F500 - 5000 lbf.ft678 - 6779 N.m69 - 690 kgf.m1 1/2" F/Sq

    The available engineering units of measurement on the BMX Torque Transducers are oz-in, lb-ft, cN-m and N-m.


    line
    Related Products
    line

    PTT
    Torque Analyzer

    • Operates with Torque & Force sensors
    • Real time graph of torque vs. time using associated PC Windows software
    related


    line
    Downloads
    line

    Mountz BMX Torque Reaction Transducer - Dimensions MB-1
    Mountz BMX Torque Reaction Transducer - Dimensions MB-3
