$2,940.00
    warranty 1 year
    Product Description

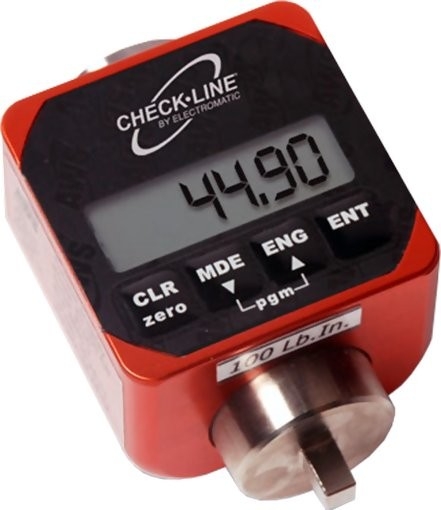

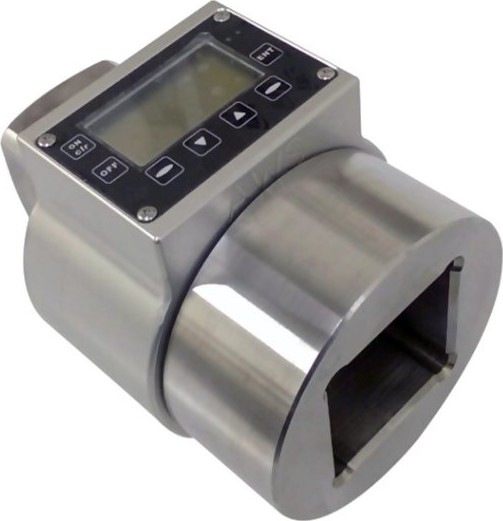

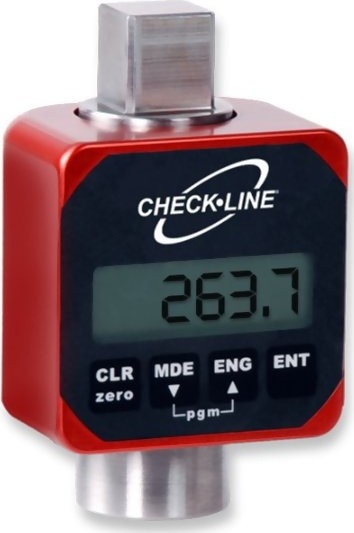

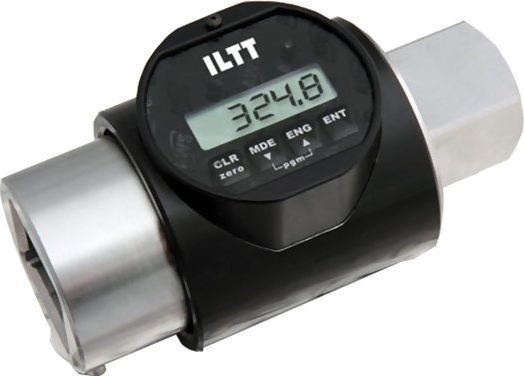

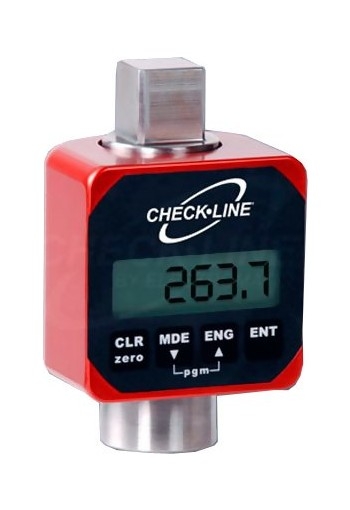

    AWS ILTT Inline Digital Torque Tester
    Inline digital torque tester for quick tool verification
    Ranges up to 5000 lb-ft
    Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

    12 Ranges Available up to 5000 lb-ft

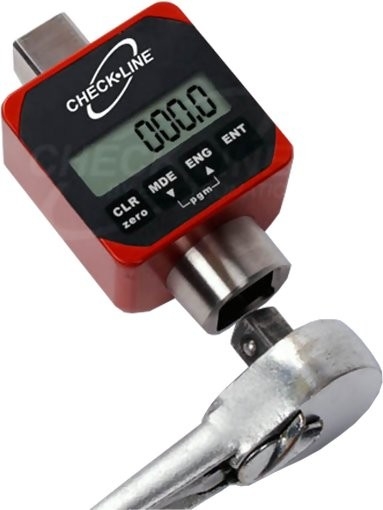

    The versatile AWS ILTT Inline Digital Torque Tester converts any non-impacting torque tool into a complete torque measuring & analyzing system, simply connect the tester to the square drive, attach a socket and measure clockwise or counter-clockwise torque.

    The AWS ILTT is suitable for use with any hand tool or non-impacting power tool including torque wrenches, breaker bars, nut-runners and more. Internal NiMH rechargeable batteries provide 8-10 hours continuous use.

    The ILTT takes just seconds to change test parameters, and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking and Auto Clear.

    Not for use with Impact Tools

    Features


    • Bidirectional accuracy of ±1% of indicated reading
    • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
    • 3 modes of operation: Track, Peak and 1st Peak
    • Rugged Aluminum Housing
    • NiMH rechargeable batteries provide 8-10 hours continuous use
    • Includes NIST-Traceable Calibration Certificate
    • Adjustable "auto-clear" for hands-free operation
    • RS-232 Serial Output included for downloading data to PC's

    Specifications


    Calibrated Range10-100% Full Scale, bi-directional
    Accuracy±1% of indicated (within calibrated range)
    Resolution4 Active Digits
    Overload Protection200% Full Scale bi-directional
    Operating ModesTrack, Peak, 1st Peak
    FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
    Memorydata storage of up to 999 readings
    Data OutputRS-232
    Alarm LimitsPanel Mounted LED for Visual Alarm Limits
    PowerInternal NiMH battery, 9V Charger (included)
    WeightAproximately 3lbs depending on transducer
    Operating Temp32 - 120 °F (0-50 °C)
    Warranty1 Year
    Calibration CertificateIncludes NIST Traceable calibration certificate with data

    Torque Ranges


    ModelRangeDrive Size
    ILTT-100i10 - 100 Lb-in1/4"
    ILTT-250i25 - 250 Lb-in3/8"
    ILTT-500i50 - 500 LB-in3/8"
    ILTT-100F10 - 100 Lb-ft1/2"
    ILTT-150F15 - 150 Lb-ft1/2"
    ILTT-250F25 - 250 Lb-ft1/2"
    ILTT-600F60 - 600 Lb-ft3/4"
    ILTT-750F75 - 750 Lb-ft3/4"
    ILTT-1000F100 - 1000 Lb-ft1"
    ILTT-2000F200 - 2000 Lb-ft1 1/2"
    ILTT-3000F300 - 3000 Lb-ft1 1/2"
    ILTT-5000F500 - 5000 Lb-ft1 1/2"

    Alternative Unit Calculator- recasts values in above table (units in RED can be selected on gauge. Other units for reference only)

    Related Products


    TWT-410
    Torque Wrench Loader

    • The flexible design of the TWT-410 is easy to use and is suitable for various torque wrench lengths and brands
    related
    Click image for more info

    AWS RDF
    Run Down Fixture - Joint Simulators for Torque Testers

    • Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
    related
    Click image for more info
    related
    Click image for more info

    AWS TT-3000 / AWS-3000 Desktop Torque Tester

    • ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
    related
    Click image for more info

    Downloads


    ILTT Inline Digital Torque Tester - Dimensional MTM 2
    ILTT Inline Digital Torque Tester - Dimensional MTM 4
