AWS TT-HY Hydraulic Wrench Torque Tester

Name: AWS TT-HY Hydraulic Wrench Torque Tester
Brand: AWS
SKU: 867

$3,355.00 - $14,950.00

View All 17 Models in this Product Family

Product Description

Capacities up to 25,000 lb-ft

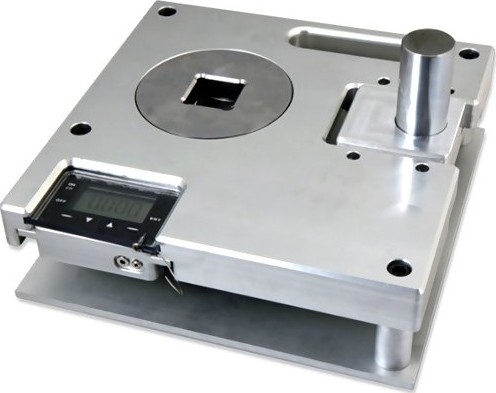

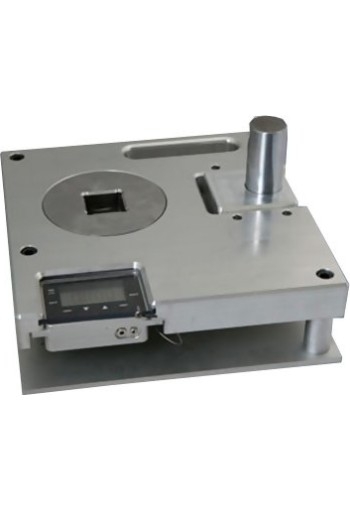

The AWS TT-HY Hydraulic Wrench Torque Tester is designed for precision testing of high capacity hydraulic wrenches.

Available with built-in or remote display.

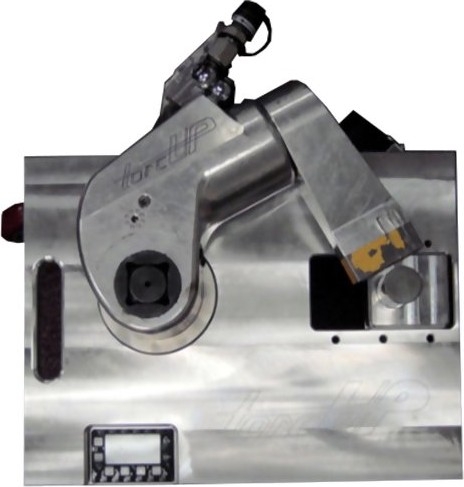

Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other hydraulic wrenches.

Accuracy	±0.3% of full scale
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	ozFin, lbFin, lbFft, Nm, Ncm
Outputs	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog:±1 VCD, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Configurable Settings	1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	5.8 lb [2.6 kg]
Environmental Requirements	40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty	3 Years
