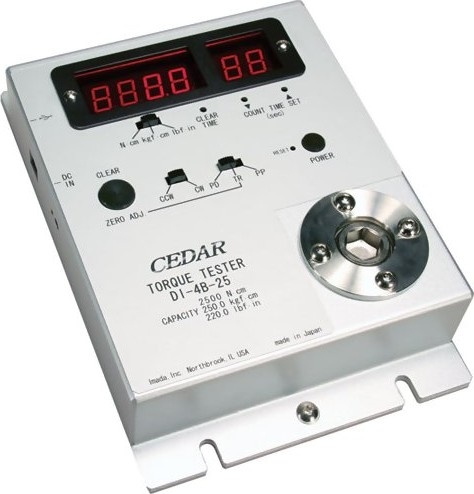

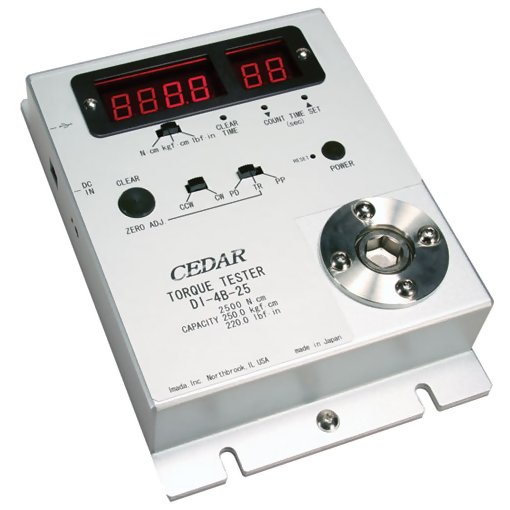

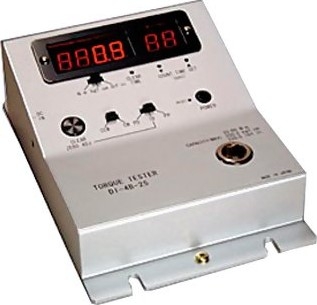

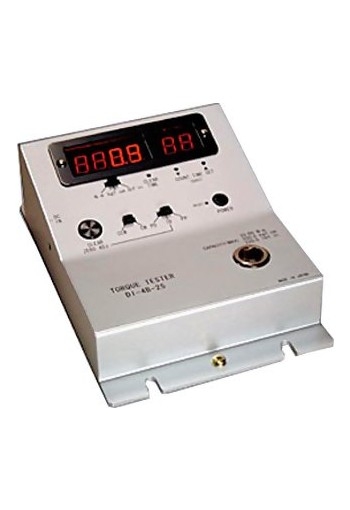

Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches

---

Capacity:
0.1 - 220.0 lbf-in
0.1 - 250.0 kgf-cm
0.01 - 25.00 N-m

---

Selectable Units: lb-ft, kg-m and N-m

---

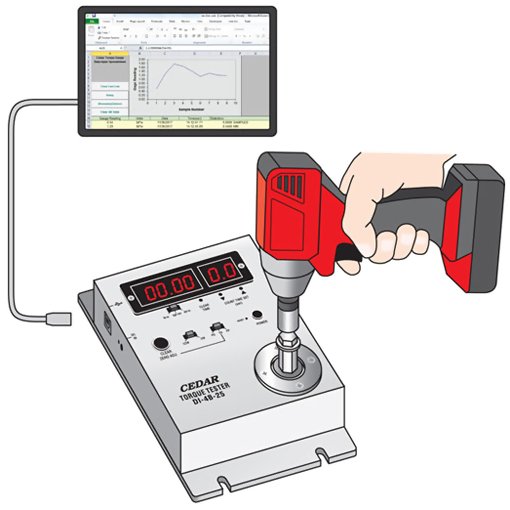

The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches are perfectly suited for on-the-spot calibration of air tools and impact drivers, but will calibrate any type of manual wrenches as well.

The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches gives a digital readout of peak value in either direction and also indicate the number of blows for a selected time period.

This torque tester has an accuracy of ±0.5%, ±1 LSD, Peak, Real Time and Peak Down modes, and provides peak data for SPC (statistical process control) via the RS232 port.

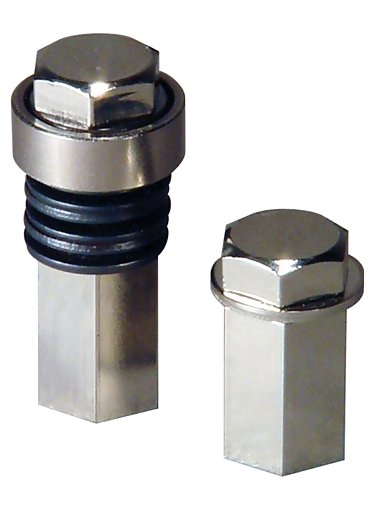

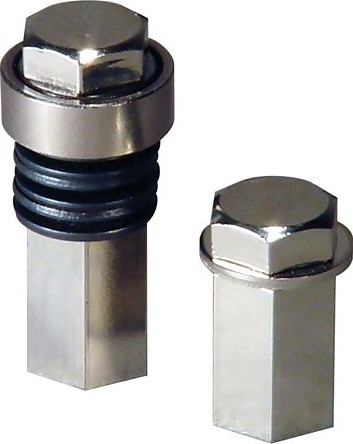

Joint simulator thread size 5/16-18 included (10-24, 3/8-16 and M5, M6 and M10 threads sold separately.

Calibrate your own air tools and impact drivers and save down time.

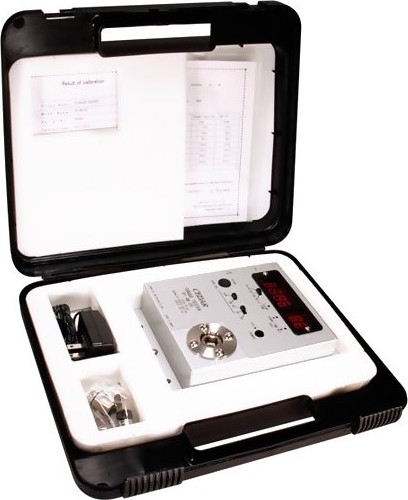

Kit Contents

Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches Joint simulators AC adapter/charger Operating Instructions Calibration Certificate Carrying case not included

Features

• Heavy duty metal construction
• Displays number of blows for selected period (0.1 - 9.9 sec)
• Selectable Units: lb-ft, kg-m and N-m
• Both clockwise and counterclockwise operation

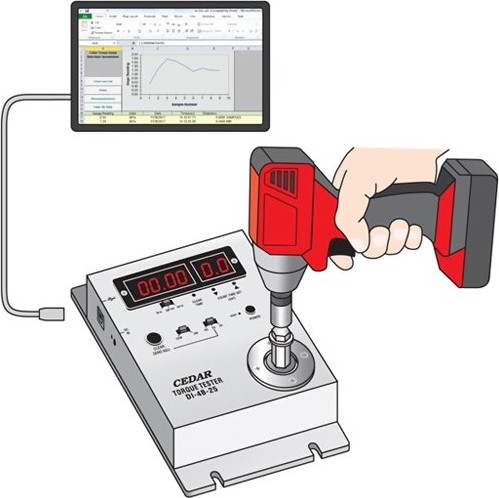

• RS-232 peak data output for SPC capability
• Peak, Real Time and Peak Down measuring mode (selectable)
• Runs on internal NiCad batteries (8 hour use)
• Soft joint, hard joint and AC adapter/charger included
• ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
• 2 Year Warranty

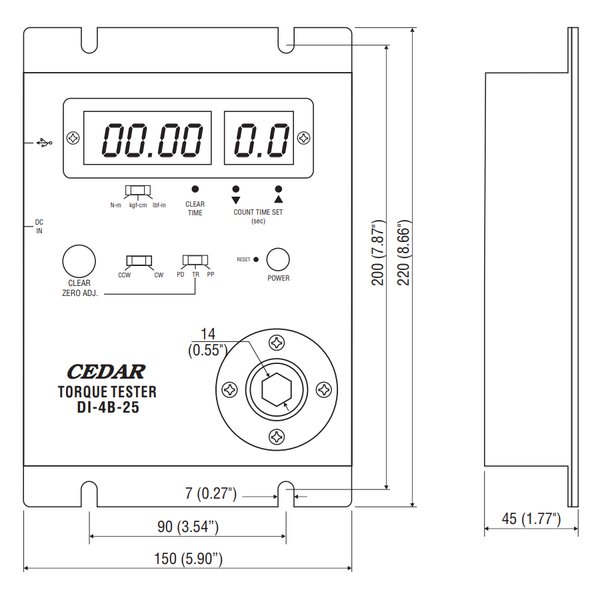

Specifications

Capacity	0.1~220.0 lbf-in 0.1~250.0 kgf-cm 0.01~25.00 N-m
Accuracy	± 0.5% F.S., ±1 LSD
