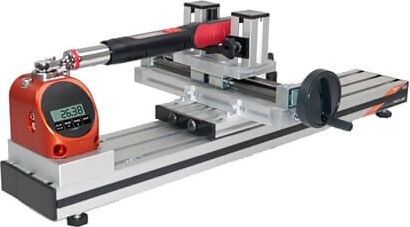

    TWT-400 TWT-410 Torque Wrench Loader TWT-400
    CAP-TSTM-DC Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System CAP-TSTM-
    Series-TT03 Mark-10 Digital Torque Gauges Series TT03 Series-TT
    MZ-TA Mountz MZ-TA Torque Wheel and Torque Segment Arm MZ-TA

    Product Description

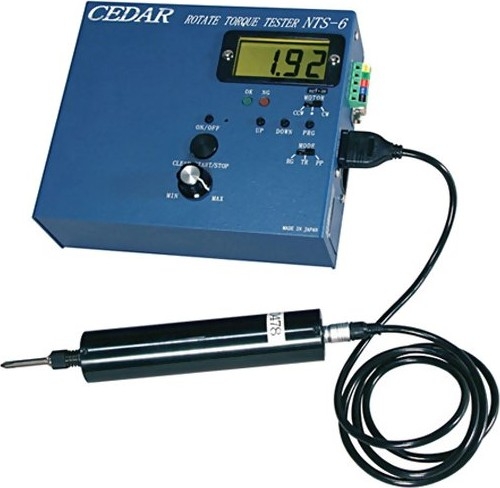

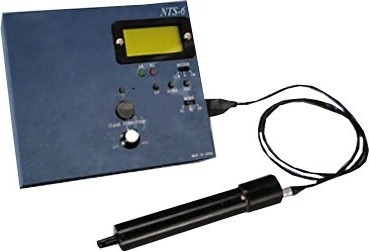

    aImada Cedar NTS-6 Motorized Rotating Friction Torque Tester
    9 Ranges up to 45.00 lb-in

    The Imada Cedar NTS-6 is a motorized rotating torque tester that measures rotating dynamic torque while turning the sample.

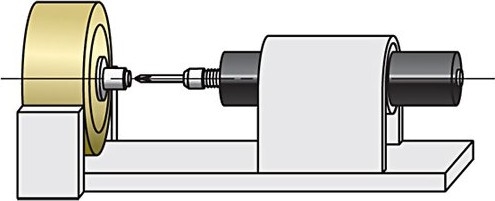

    Check the rotating torque, smoothness of rotation and components of small precision motors, such as, gearbox, bearings, oil seals, etc.

    Torque data can be continuously output via RS-232 enabling you to display a torque profile using data acquisition software.


    line
    Features
    line

    • Peak, Real Time and Continuous Output measuring modes (selectable)
    • Programmable high/low setpoints for Go/No go testing
    • RS-232C output in Both CW and CCW operation

    The available engineering units of measurement on the NTS-6 Rotating Torque Testers are oz-in, lb-in, N-m, N-cm and Kgf-cm.


    line
    Specifications
    line

    Accuracy±1% F.S., 1LSD
    Measuring Range
    (at the time of Track)    		S1/oz: 3.0~100mNm
    S2/oz: 3.0~200mNm
    S5/oz: 0.030~0.5Nm
    Max. Rotational
    Speed
    (no-load)    		S1/oz: 85 rpm
    S2/oz: 30 rpm
    S5/oz: 13 rpm
    S10: 18 rpm
    S20: 18 rpm
    S50: 5 rpm
    Display4 digit LCD display
    OperationBoth CW and CCW motorized rotation
    Measuring modesPP: Peak Mode displays PEAK torque value that will not change until a higher value is measured.
    GO: Real Time Mode displays TRANSIENT torque values.
    RG: Output Torque Data every 1/100 seconds.
    Measurement start timeCan be set up to 1 second in 0.1 second increments.
    Measuring timeTime can be programmed between 1 and 20 seconds.
    Go/No go testingProgrammable High and Low values; Green lamp (OK solid, NG blinking).
    External input/outputSignal output (open collector): Go and No Go
    Data output: RS-232C (9600 baud) External start switch input
    Data memory400 data
    Power supplyAC100V~240V
    Bit size4mm diameter


    line
    Force Ranges
    line

    ModelCapacity
    NTS-6-S10.030 - 0.900 lb-in
    NTS-6-S20.030 - 1.740 lb-in
    NTS-6-S50.30 - 4.50 lb-in
    NTS-6-S100.30 - 9.00 lb-in
    NTS-S200.30 - 17.40 lb-in
    NTS-S500.30 - 45.00 lb-in
    NTS-S1oz0.30 - 14.00 oz-in
    NTS-S2oz0.30 - 28.00 oz-in
    NTS-S5oz3.00 - 70.00 oz-in
