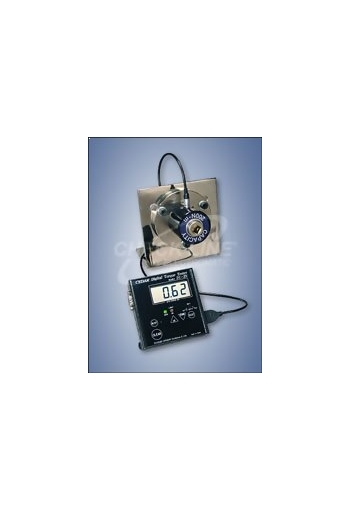

Mark-10 DI-3N Digital Torque Tester with Remote Sensor

See More Torque Testers

This product has been replaced by the Cedar DI-1M-500

Discontinued Item

Price: $1,095.00 to $1,480.00

Digital Torque Tester with Remote Sensor

5 Ranges up to 3.0~362.0 lbf-ft / 0.30~50.00 kgf-mm / 3.0~500.0 N-m

400 data memory for recall or for SPC download

Digital Torque Tester with Remote Sensor

Digital Torque Tester with flanged remote sensor calibrates torque tools up to 362 lb-ft. It has an accuracy of ±0.5% F.S., ± 1 LSD and measures torque in Peak, Real Time and Peak Down modes (selectable).

Do not use with impact tools (Use DI-1M impact wrench torque tester).

Use the 400 internal memory for peak data recall or RS-232C download for analysis by Imada data acquisition software SW-1S.

line
Features of the DI-3N Digital Torque Tester with Remote Sensor
line

Heavy duty metal construction

lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m (see table below)

400 data memory for recall or for SPC download

RS-232C output for SPC capability (peak data only)

Peak, Real Time and Peak Down measuring modes (selectable)

Accuracy: ±0.5% F.S. ±1 LSD (32° to 100°F)

Both clockwise and counterclockwise operation

AC adapter/charger included

Runs on internal NiCad batteries (8 hour use)

line
Torque Ranges
line

Model	Capacity	Drive
DI-3N-1P5	0.30~44.00 lbf-in 0.30~50.00 kgf-cm 3.0~500.0 N-cm	1/4"
DI-3N-1P50	3.0~440.0 lbf-in 3.0~500.0 kgf-cm 30~5000 N-cm	3/8"
DI-3N-1P200A	30~1800 lbf-in 30~2000 kgf-cm 3.0~200.0 N-m	1/2"
DI-3N-1P200	3.0~145.0 lbf-ft 0.30~20.00 kgf-m 3.0~200.0 N-m	1/2"
DI-3N-1P500	3.0~362.0 lbf-ft 0.30~50.00 kgf-mm 3.0~500.0 N-m	3/4"

line
Related Products for the DI-3N Digital Torque Tester with Remote Sensor
line

DI-1M Digital Torque Tester for Air Tools & Impact Wrenches
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)

___________________________________________

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

Full SPC and graphing capabilities

Automates your data collection

Provides a running log of all measurements along with a chart of the data as well as statistical information
