Mark-10 Manual Torque Test Stands TST & TSTH

See More Torque Testers

Mark-10 Manual Torque Test Stands TST & TSTH

Torque Sensor Sold Separately

Convenient side-mounted hand wheel

Modular Design

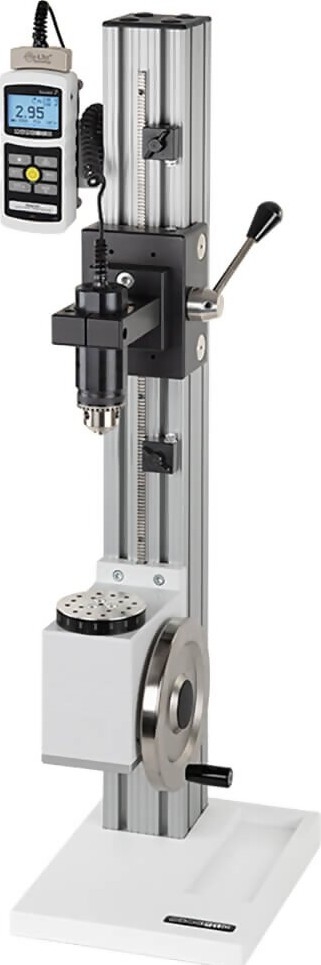

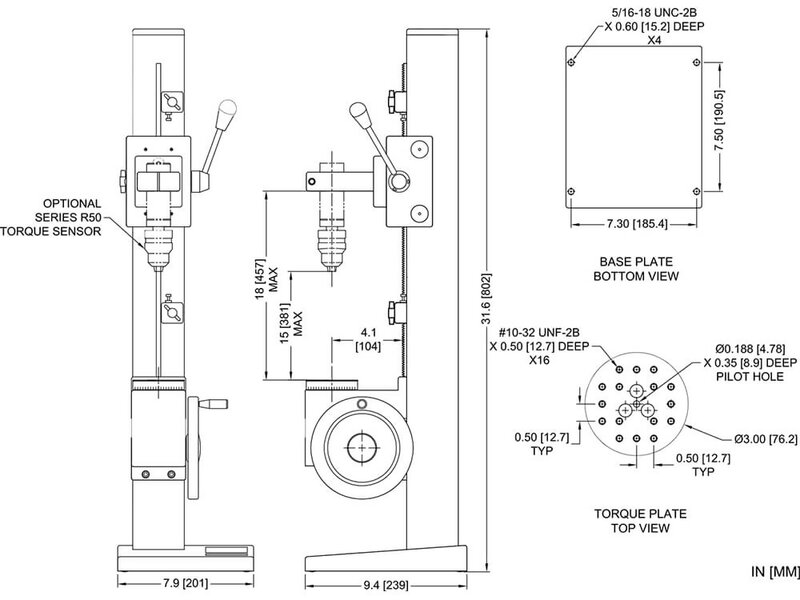

TST - Vertical Stand

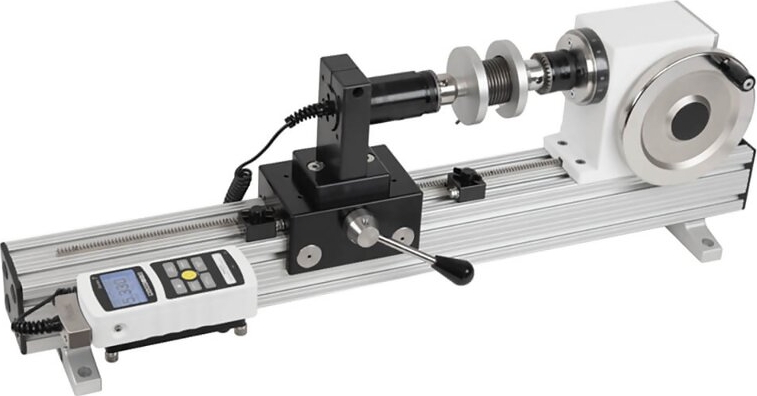

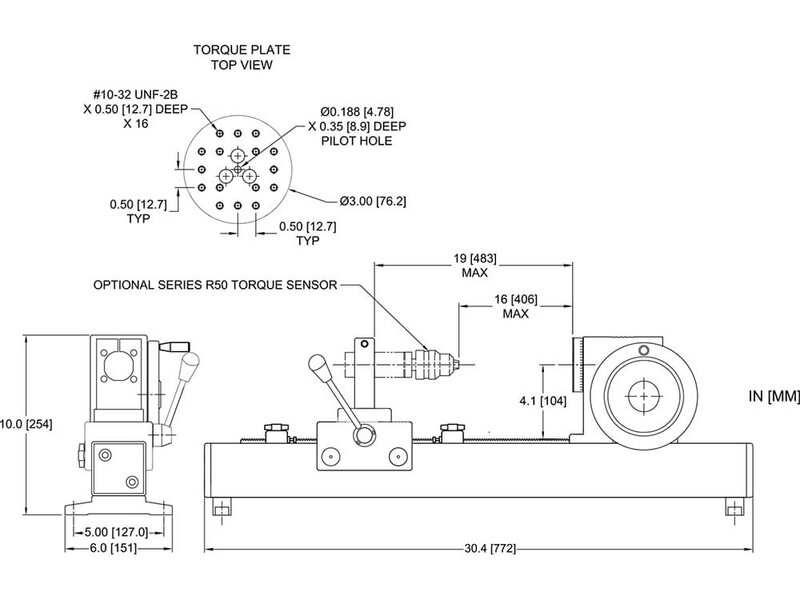

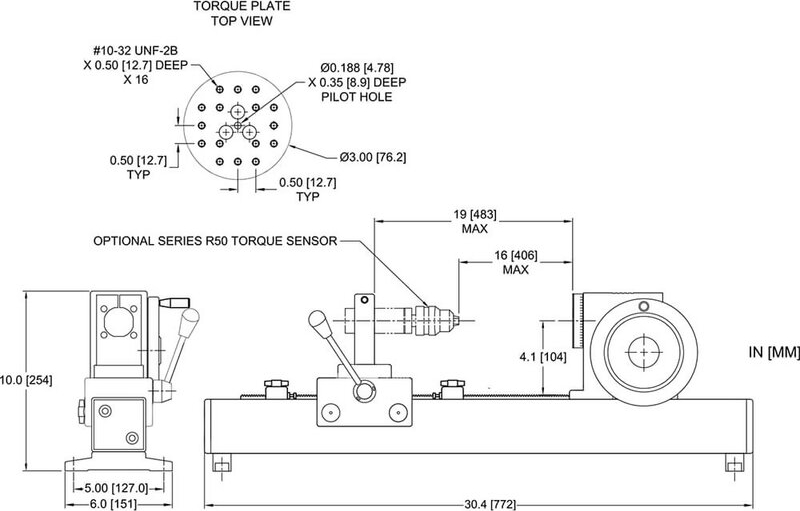

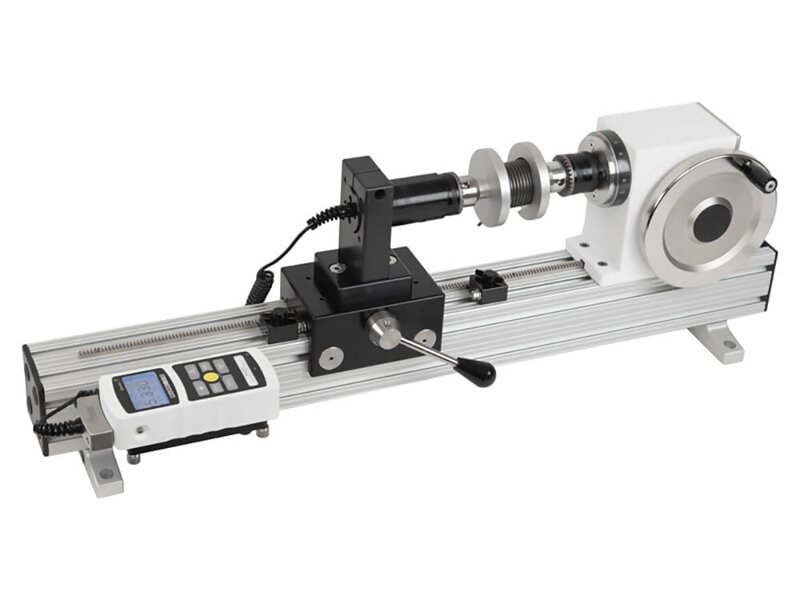

TSTH - Horizontal Stand

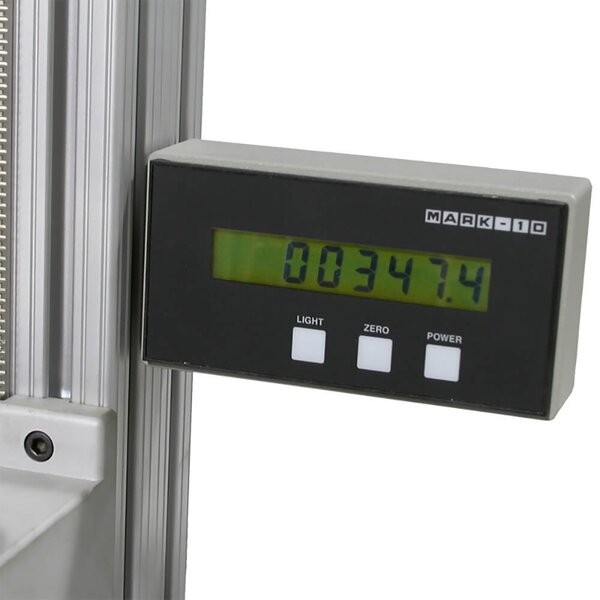

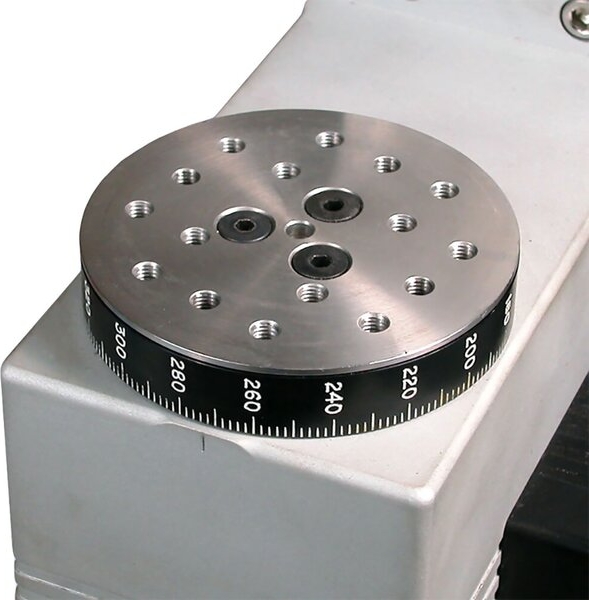

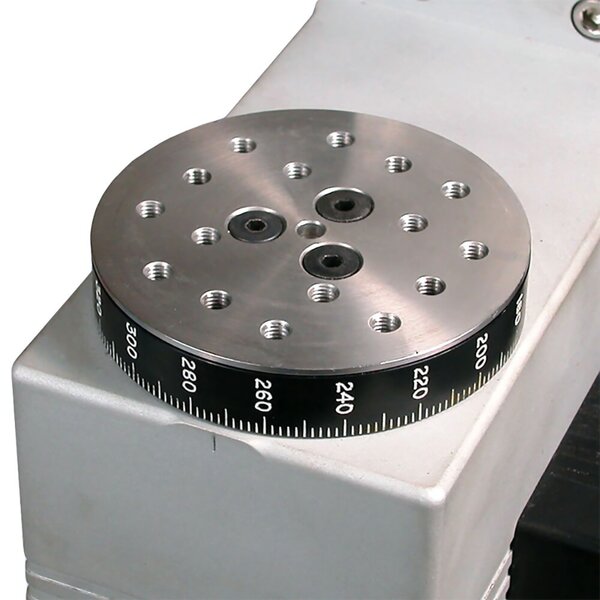

The Mark-10 Manual Torque Test Stands TST & TSTH is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

The Mark-10 Manual Torque Test Stands TST & TSTH is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

line
Kit Contents
line

Mark-10 TST/TSTH Manual Torque Test Stand
4 Thumb screw for indicator
1 Allen wrench set
1 Base (TST)
2 Mounting leg with hardware (TSTH)
1 Additional column cap with hardware (TSTH)

line
Features
line

Maximum torque: 100 lbin (11.3 Nm)
Maximum angular travel: no limit
Travel rate: 12°/ wheel rev.
Adjustable travel stops
Smooth hand wheel operation
Lever operated slider for engaging and disengaging samples

line
Specifications
line

Maximum Torque	100 lbin (11.3 Nm)
Maximum Angular Travel	No limit
Maximum Slider Travel	15.5" (394 mm)
Throat	4.10" (104 mm)
Angular Rate	12°/ wheel rev.
Slider Travel Rate	1.047" (26.6 mm)/lever rev
