Mark-10 Manual Torque Test Stands TST & TSTH
Torque Sensor Sold Separately
Convenient side-mounted hand wheel
Modular Design

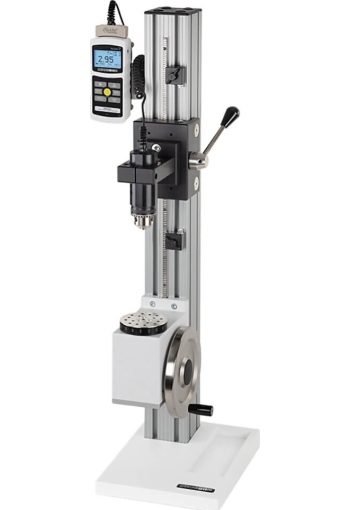

TST - Vertical Stand

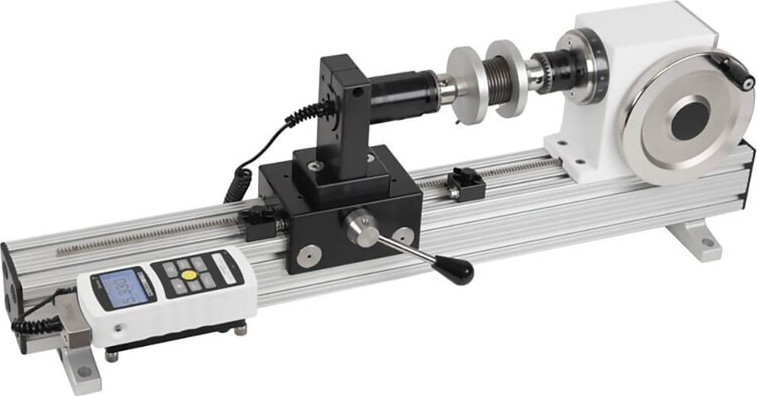

TSTH - Horizontal Stand

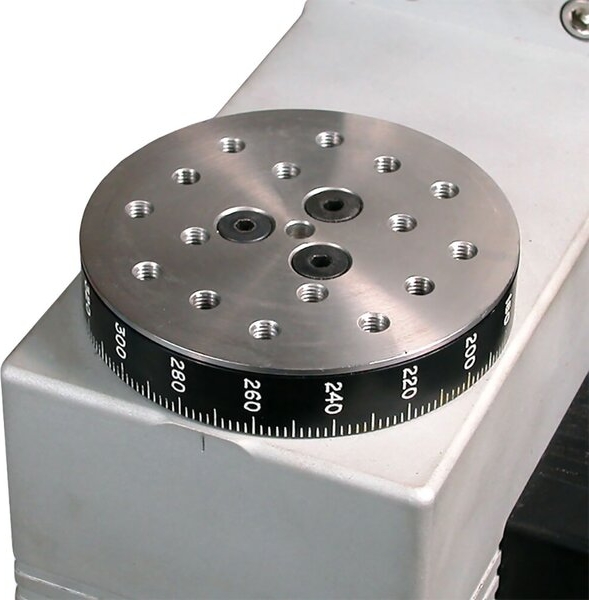

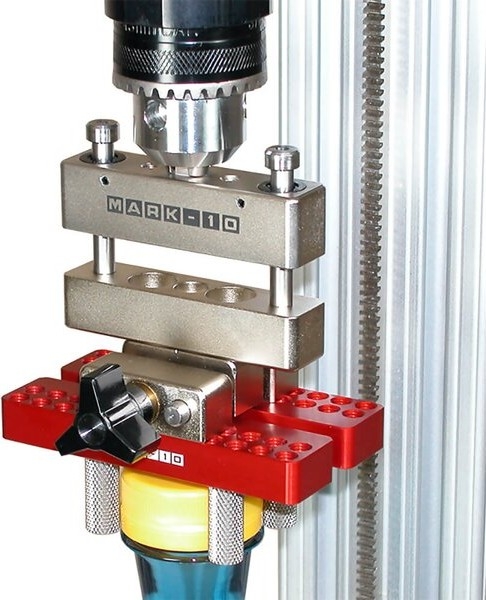

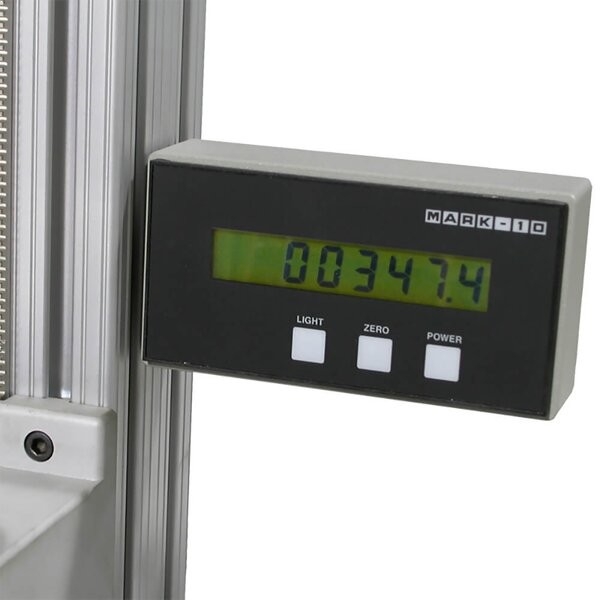

The Mark-10 Manual Torque Test Stands TST & TSTH is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
The Mark-10 Manual Torque Test Stands TST & TSTH is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.
Kit Contents
- Mark-10 TST/TSTH Manual Torque Test Stand
- 4 Thumb screw for indicator
- 1 Allen wrench set
- 1 Base (TST)
- 2 Mounting leg with hardware (TSTH)
- 1 Additional column cap with hardware (TSTH)
Features
- Maximum torque: 100 lbin (11.3 Nm)
- Maximum angular travel: no limit
- Travel rate: 12°/ wheel rev.
- Adjustable travel stops
- Smooth hand wheel operation
- Lever operated slider for engaging and disengaging samples
Specifications
| Maximum Torque | 100 lbin (11.3 Nm) |
| Maximum Angular Travel | No limit |

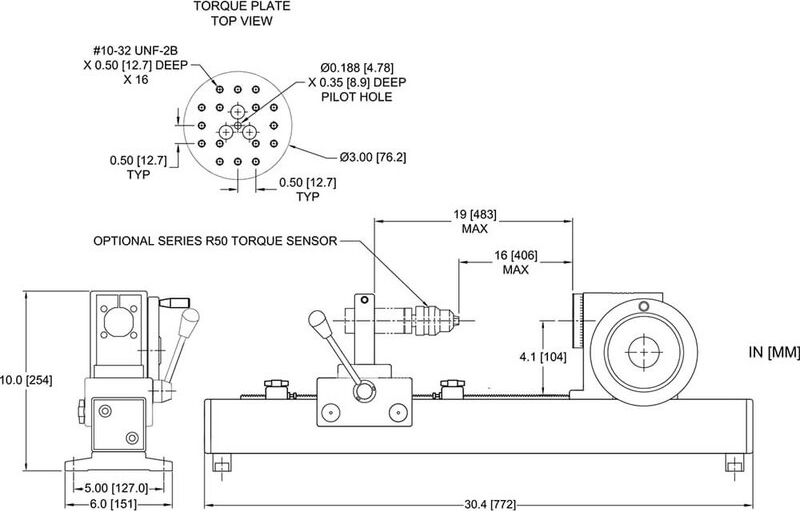

| Maximum Slider Travel | 15.5" (394 mm) |
| Throat | 4.10" (104 mm) |
| Angular Rate | 12°/ wheel rev. |
| Slider Travel Rate | 1.047" (26.6 mm)/lever rev |
