Mountz LTT Torque and Angle Analyzer

See More Torque Testers

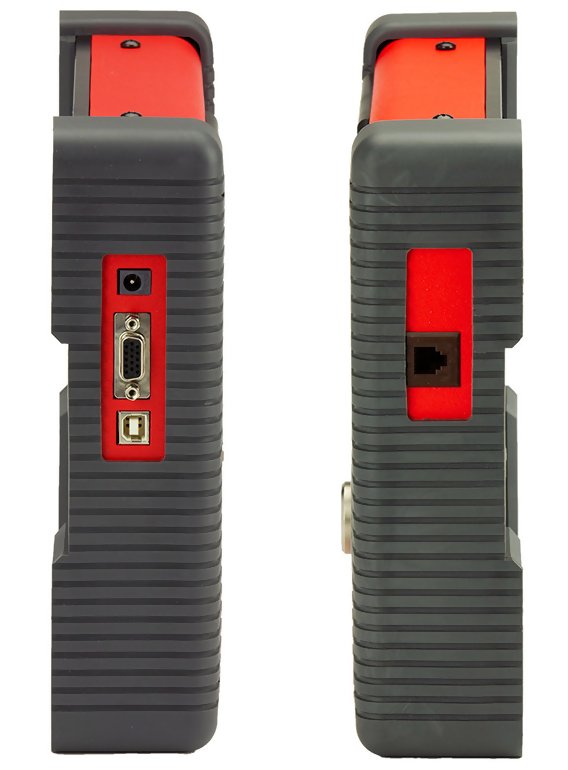

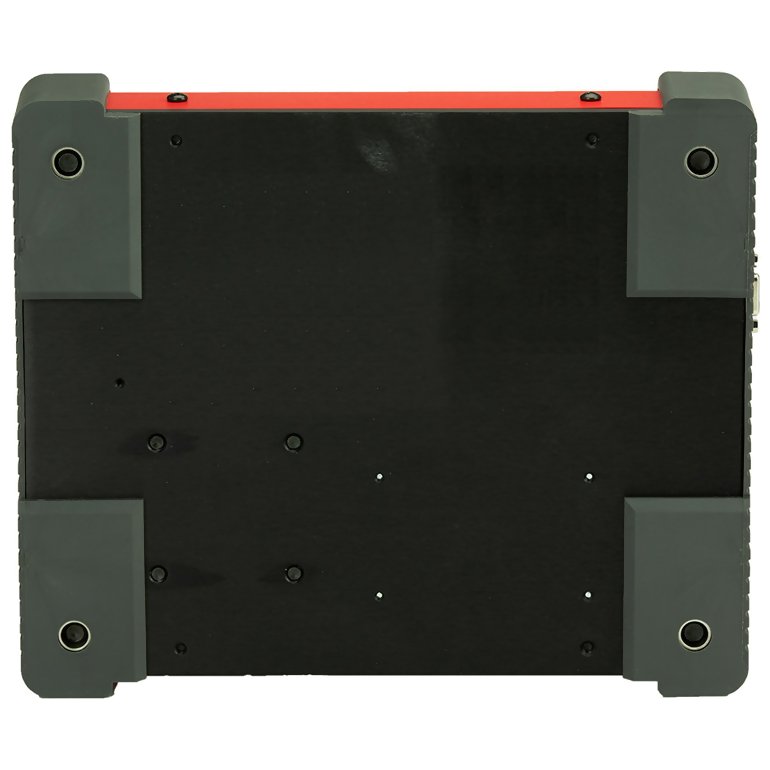

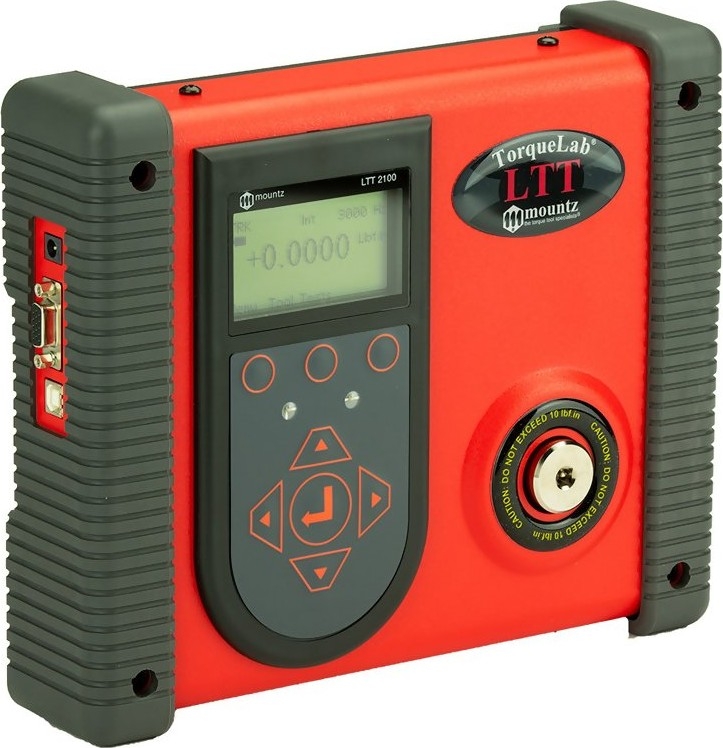

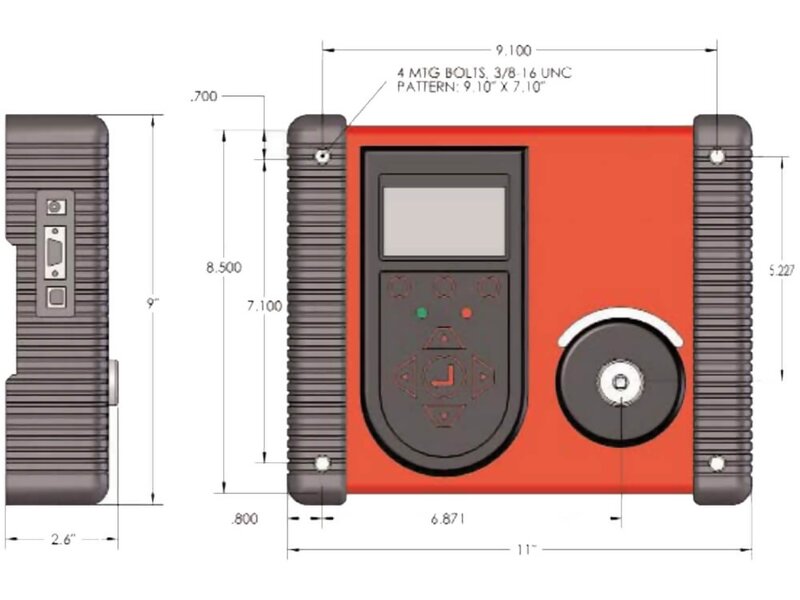

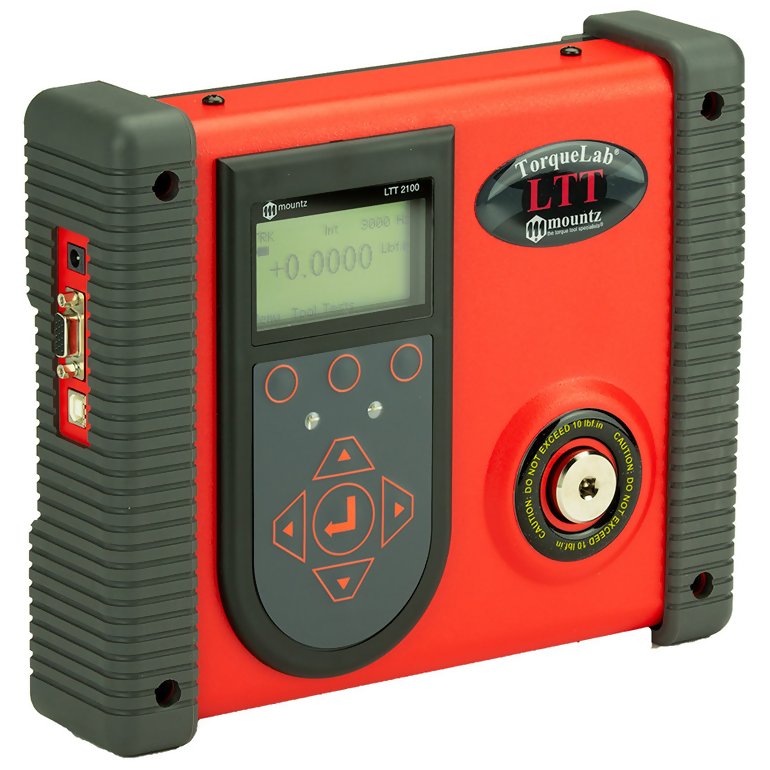

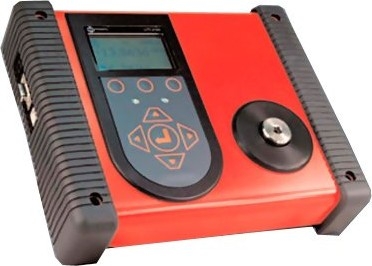

Mountz LTT Torque and Angle Analyzer

Mountz LTT Torque and Angle Analyzer

See More Torque Testers
Price:
$4,235.00 - $4,510.00
    warrenty

    Product Description

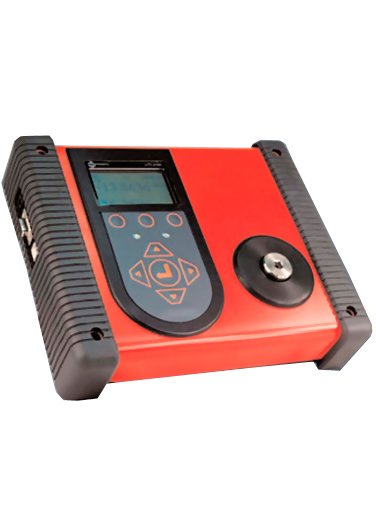

    Mountz LTT Torque and Angle Analyzer with USB Output
    Recommended for all hand screwdrivers, wrenches or power tools.
    8 Ranges available up to 250 Lb-ft.


    The Mountz LTT Torque and Angle Analyzer is the next generation of torque analyzer. It offers “EZ-Plug & Play” with instant auto recognition with transducers. The Mountz LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.

    The LTT includes three PC Windows based software programs:

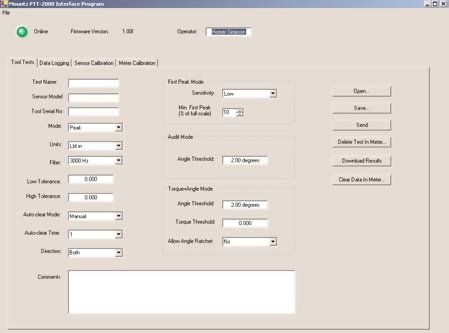

    Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
    Torque Meter Bootloader - for updating the LTT operating systems.
    Statistics Calculator - for SPC, CP & CPK calculations.


    line
    Features
    line

    • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
      Accuracy +/- 1% of reading from 10% to 20% of full scale.
    • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
    • Built-in Tool Tests operation.
    • Stores a total of 2500 data points.
    • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
    • Recommended for all hand screwdrivers, wrenches or power tools.
    • "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
    • Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).


    line
    Force Ranges
    line

    Model Capacity Drive Size
    LTT-10i 1-10 lbf-in
    11.3 - 113 cN-m
    1.2 - 11.5 kgf-cm
    1/4" F/Sq
    LTT-25i 2.5-25 lbf-in
    28.25 - 282.5 cN-m
    2.9 - 28.8 kgf-cm
    1/4" F/Sq
    LTT-50i 5 - 50 lbf-in
    56.5 - 565 cN-m
    5.8 - 57.6 kgf-cm
    1/4" F/Sq
    LTT-100i 10 - 100 lbf-in
    113 - 1130 cN-m
    11.5 - 115 kgf-cm
    1/4" F/Sq
    LTT-250i 25 - 250 lbf-in
    282.5 - 2825 cN-m
    28.8 - 288 kgf-cm
    1/4" F/Sq
    LTT-50F 5 - 50 lbf-ft
    6.8 - 67.8 N-m
    0.7 - 6.9 kgf-m
    3/8" F/Sq
    LTT-100F 10 - 100 lbf-ft
    13.56 - 135.6 N-m
    1.4 - 13.8 kgf-m
    1/2" F/Sq
    LTT-250F 25 - 250 lbf-ft
    33.9 - 339 N-m
    3.5 - 34.5 kgf-m
    1/2" F/Sq


    line
    Tool Tests & Graphing
    line

    The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It's the ideal solution for organizing and storing test data for ISO and SPC documentation.

    The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

    The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations


    line
    Cable Chart
    line

    Transducer Cable Item # List Price
    RTSX-AA 072000 $195.00
    BLRTSX 072001 $195.00
    BMX 072002 $165.00
    SDX 072004 $195.00
    RTSX 072005 $165.00
    ETX 072006 $195.00

    *Contact Customer Service for connecting a SMX to the LTT


    line
    Accessories
    line

    • Universal Charger (100 - 240 VAC)
    • USB Cable
    • Software - Torque Meter Interface Program
    • Software - Torque Meter Bootloader
    • Software - Statics Calculator
    • Protective Cover


    line
    Related Products
    line

    RTSX
    Rotary Torque Transducer

    • Accuracy +/-.25% of full scale
    • Use with most hand tools, power tools or rotational measurement applications
    related

    line

    RTSX-A
    Rotary Torque and Angle Transducer

    • Accuracy ± .25% of full scale
    • Angle Output: 2 channel quadrature, 360 pulses per rotation
    related

    line

    BLRTSX
    Brushless Rotary Torque Transducer

    • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer
    related
