Provide consistent and reliable torque readings for power-driven torque control tools

---

Compact to limit spacing between the power tool and torque measurement equipment for improved accuracy and ease of use

---

The Mountz Mini-RDA Mini Run Down Adapters is designed to be used with low torque sensors to provide consistent and reliable torque readings for power-driven torque control tools. Run down adapters are used to simulate various joint characteristics to provide a more accurate torque reading during testing and calibration.

Mountz Mini-RDA Mini Run Down Adapters allow for an accurate simulation of actual joints. Run-down adapters are mounted in-line between the tool drive and the transducer of a torque analyzer or sensor, reducing the impact and irregular peaks that cause poor testing repeatability.

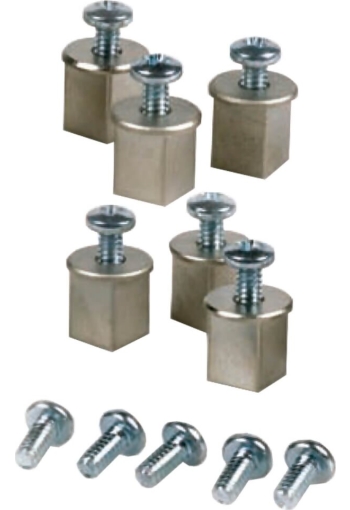

Kit Contents

• 5 mini RDA units along
• 10 fasteners

Features

• The mini RDA unit with fastener is designed for low torque sensors BMX20z - BMX10i and MTX models
• Designed to provide consistent and reliable torque readings for use with low torque power tools
• The mini RDAs allow a close simulation of actual joints
• Adapter is mounted in-line between tool drive an the torque sensor
• Operates in clockwise direction only
• Provide consistent and reliable torque readings for power-driven torque control tools
• RDA is mounted in-line between the tool drive and the transducer of a torque analyzer or sensor
• Compact to limit spacing between the power tool and torque measurement equipment for improved accuracy and ease of use
• Operates in a clockwise direction only. After each run down, the RDA should be backed-up

Models

Model	Item #	Screws
Mini RDA2	061229-2	PH Phil 2-56 x 1/4 SS
Mini RDA4	061229-4	PH Phil 4-40 x 1/4 SS
Mini RDA6	061229-6	PH Phil 6-32 x 1/4 SS
Mini RDA10	061229-10	PH Phil 10-32 x 1/4 SS

NOTE: Change screws when thread wear occurs. (Recommended - approximately every 25 run downs). The Mini-RDA unit is not made of Stainless Steel material
