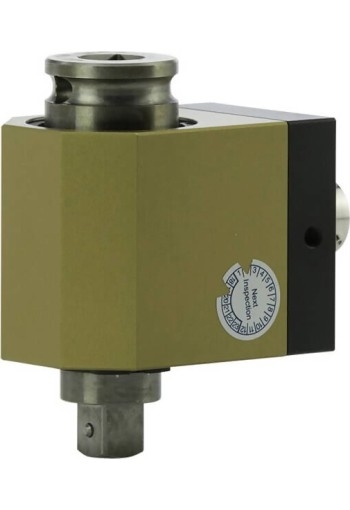

Mountz RTSX100F Rotary Torque Transducer, Range 10-100 Lb-ft, Drive Size 1/2", # 170209

See More Torque Testers

Mountz RTSX100F Rotary Torque Transducer, Range 10-100 Lb-ft, Drive Size 1/2", # 170209

See More Torque Testers
Price:
$4,780.00
    warrenty

    Product Description
    Mountz RTSX Rotary Torque Transducer
    Rotary Torque Transducer - Mountz
    Various models that range from 1 Lb-in to 1500 Lb-ft.
    For use with most hand tools, power tools or rotational measurement applications

    The Mountz RTSX Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications. The Mountz RTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener. Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.


    line
    Specifications
    line

    Output at Rated Capacity > 6 Nm [53 lbf.in] rated torque 2 mV/V
    InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
    Nonlinearity+0.2% FS
    Excitation Recommended10V DC or AC RMS
    Bridge Resistance350 ohms
    Usable Temperature Range41-122 degrees F
    Safe Overload125% of rated output


    line
    Torque Ranges
    line

    ModelRangeInput
    Drive
    Output
    Drive
    RTSX10i-H1 - 10 Lb-in1/4" M/Hex1/4" F/Hex
    RTSX10i1 - 10 Lb-in1/4" F/Sq1/4" M/Sq
    RTSX50i-H5 - 50 lbf.in1/4" M/Hex1/4" F/Hex
    RTSX50i5 - 50 lbf.in1/4" F/Sq1/4" M/Sq
    RTSX100i-H10 - 100 Lb-in1/4" M/Hex1/4" F/Hex
    RTSX100i10 - 100 Lb-in1/4" F/Sq1/4" M/Sq
    RTSX200i-H20 - 200 Lb-in1/4" M/Hex1/4" F/Hex
    RTSX200i20 - 200 Lb-in3/8" F/Sq3/8" M/Sq
    RTSX50F5 - 50 Lb-ft3/8" F/Sq3/8" M/Sq
    RTSX100F10 -100 Lb-ft1/2" F/Sq1/2" M/Sq
    RTSX400F40 -400 Lb-ft3/4" F/Sq3/4" M/Sq
    RTSX738F74 - 738 Lb-ft1" F/Sq1" M/Sq
    RTSX1500F150 - 1500 Lb-ft1 1/2" F/Sq1 1/2" M/Sq


    line
    Related Products
    line

    PTT
    Torque Analyzer

    • Operates with Torque & Force sensors
    • Real time graph of torque vs. time using associated PC Windows software
    related

    line

    LTT
    Torque and Angle Analyzer

    • Built-in Tool Tests operation
    • Recommended for all hand screwdrivers, wrenches or power tools
    related
