Checkline DTF Digital Torque Wrench with 1/4" Female Hex Drive

---

2 Ranges, Up to 106 lbf-in / 12 Nm capacity

---

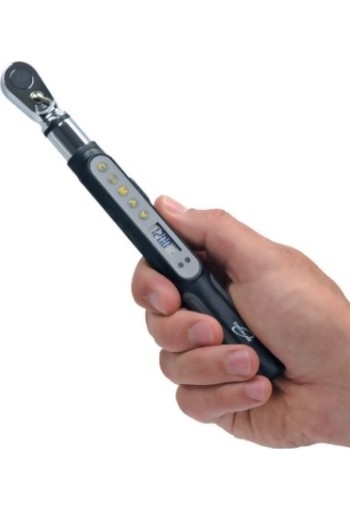

Compact design for low-torque, limited access applications

---

2 Models
DTF-50: Capacity: 53 in-lb / 4.4 lb-ft / 6 N-m / 61 kg-cm
DTF-100: Capacity: 106 in-lb / 8.8 lb-ft / 12 N-m / 122 kg-cm

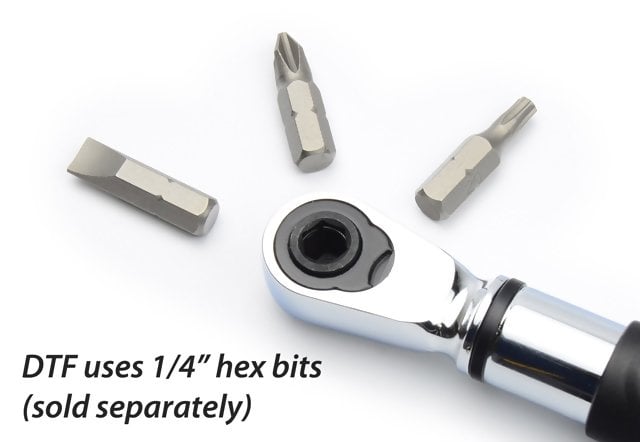

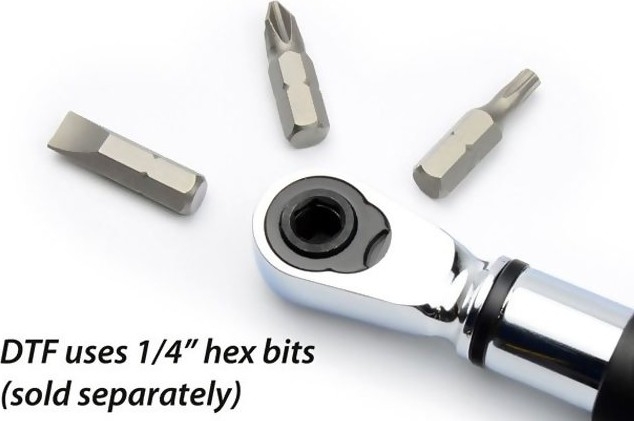

The Check-Line DTF Low Profile Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its low profile design and 1/4" female hex drive with ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).

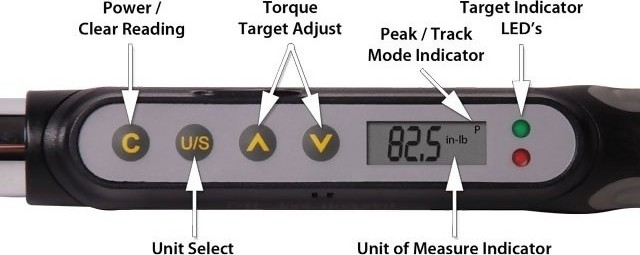

The Checkline DTF features 9 programmable target set points that indicates the desired torque value with a red and green LEDs and audible beep.

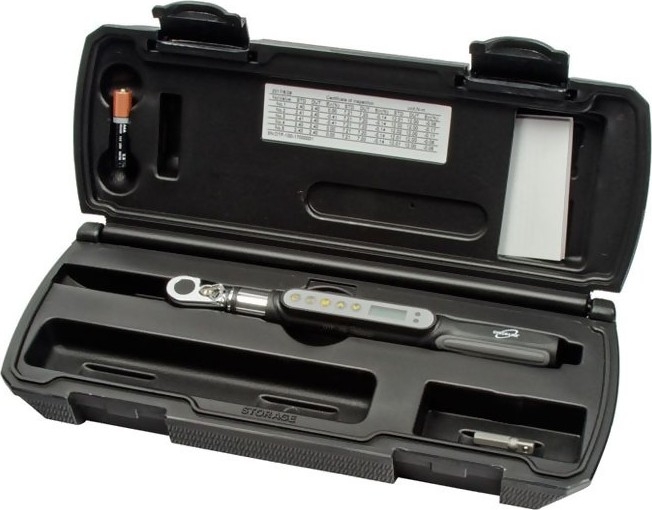

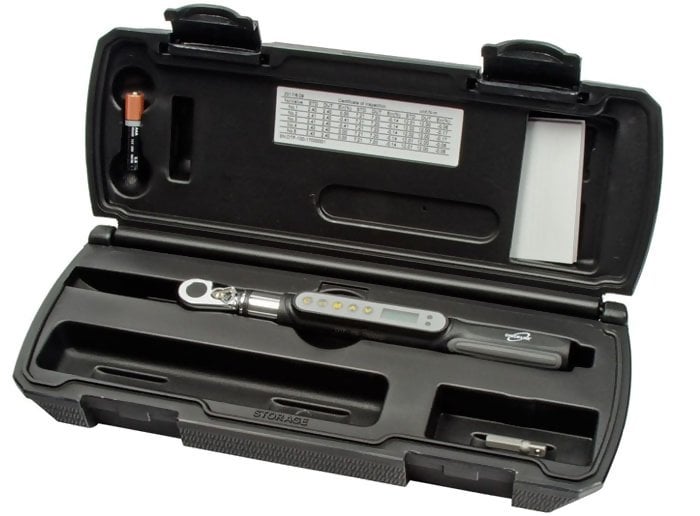

Kit Contents

Checkline DTF Digital Torque Wrench with 1/4" Female Hex Drive Wrench 1/4" Male Hex to 1/4" Male Sq drive adapter 1 AAA battery Calibration cert in a fitted plastic Instruction manual Carrying case

Features

• Includes Factory Calibration Certificate
• Displays in-lb, lb-ft, N-m, Kg-cm units (User selectable)
• CW and CCW operation
• Peak or Real-Time (track) mode (User Selectable)
• 9 Programmable Target Set-points with audible and LED indicators
  At 90% of Target, Green LED illuminates with slow audible beep
  At 100% of Target, Green & Red LEDs illuminate with continuous beep
• CE Certified

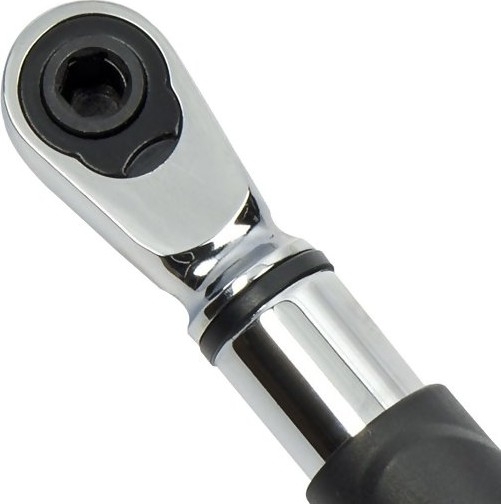

• Ratcheting Head

Specifications

Accuracy	CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity
Operation Mode	Peak hold/ Track
Unit Selection	ft-lb, in-lb, N-m, Kg-cm

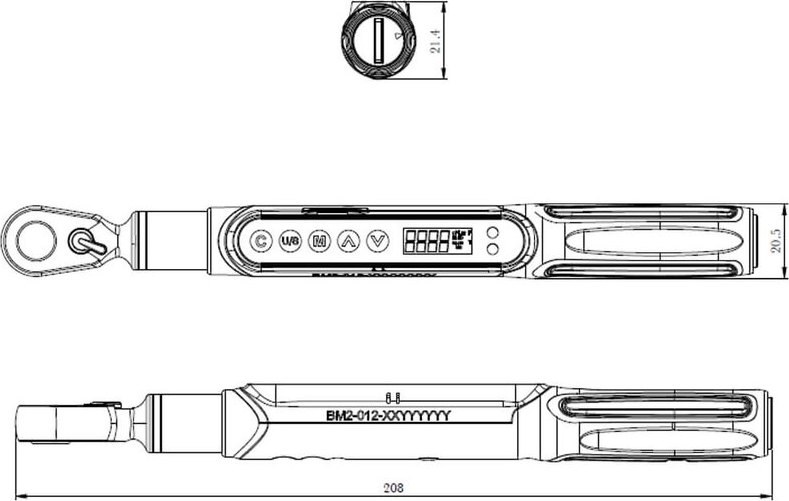

Length	8 inches / 20 mm
Head Type	Lever type Ratchet
Battery	1 AAA
Battery Life	12 Continuous Hours 1 Year Standby
Model Code in Manual	DME2-012CN
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Humidity	Up to 90% non-condensing
Warranty	1 Year
Zero Function	Press the "C" key. The display will clear then it will return to the "target value" (preset)

Ranges

Model	Measuring Range	Resolution
DTF-50	2.65 - 53.09 lb-in 0.221 - 4.424 lb-ft 0.300 - 6.000 Nm 3.06 - 61.22 kg-cm	0.01 lb-in 0.001 lb-ft 0.001 Nm 0.01 kg-cm
DTF-100	5.3 - 106.2 lb-in 0.44 - 8.85 lb-ft 0.60 - 12.00 Nm 6.1 - 122.4 kg-cm kg-cm	0.1 lb-in 0.01 lb-ft 0.01 Nm 0.1 kg-cm
