    Product Description

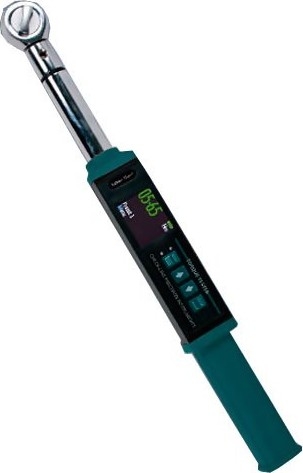

    Checkline ETW Digital Torque Wrench with optional USB Data Output
    Ranges from 10 N-m to 2000 N-m

    The Checkline ETW is precision torque measuring wrench for use in lab or production environments


    line

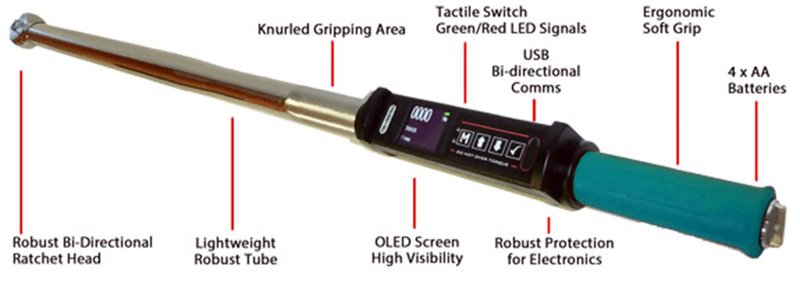

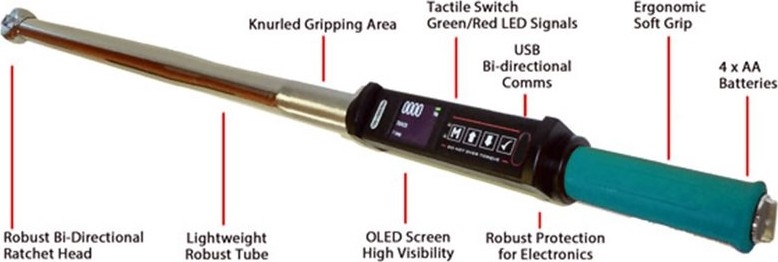

    Features
    line

    • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
    • CW and CCW operation
    • Peak or Real-Time (track) mode (User Selectable)

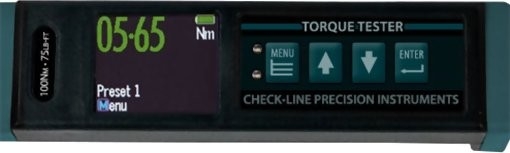

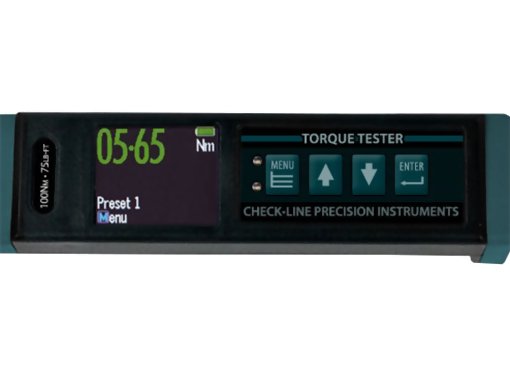

    • Programmable Target Set-point with audible and visual indicators
    • Includes Calibration Certificate
    • CE Certified


    lineSpecificationsline

    Accuracy±1% (Of indicated)
    10 - 100% of capacity (readings start at 5%)
    Resolution0.01 N-m / 0.1 in-lb / 0.01 ft-lb
    Sampling Frequency500 Hz (500 samples/sec)
    Display Update Rate4 Hz (4 times/sec)
    Memory2000 readings

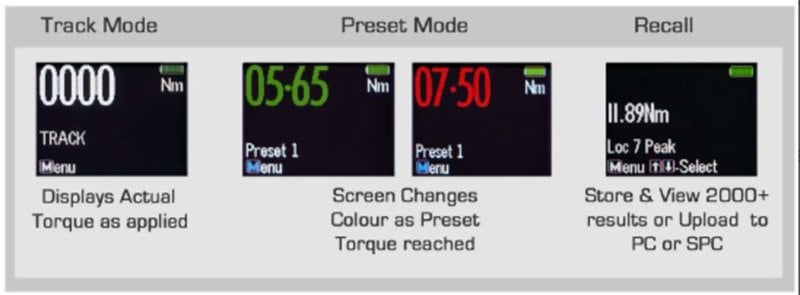

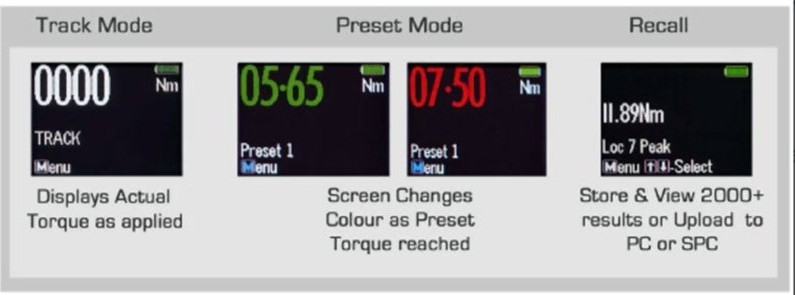

    Operation ModePeak hold/ Track /Preset
    Unit SelectionLb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in
    Length400mm (Ranges 10 - 135)
    625mm (Ranges 150 - 340)
    1250mm (Ranges 600 - 800)
    1350mm (Ranges 1000)
    1650mm (Ranges 1500 - 2000)

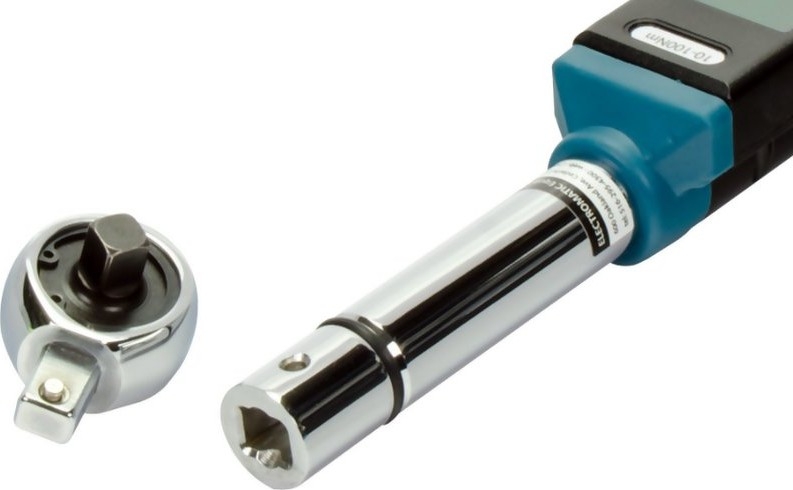

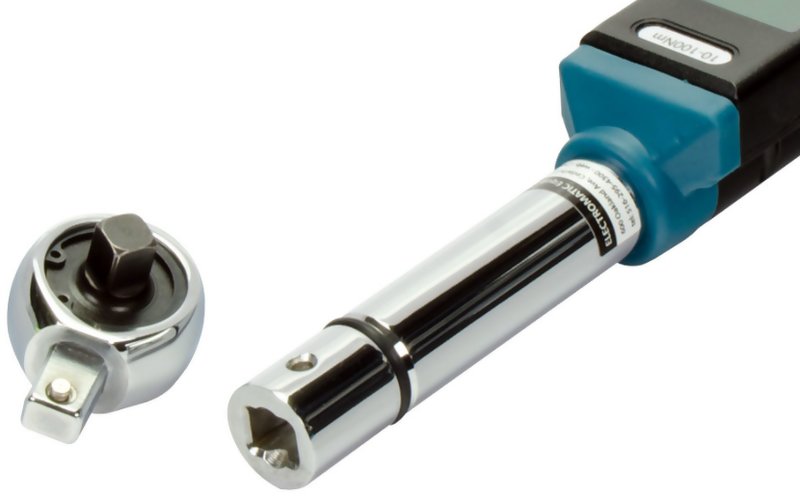

    Head TypeRobust Bi-Directional Ratchet
    Battery4x AA
    Battery Life120 Hours
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    HumidityUp to 90% non-condensing
    Warranty1 Year


    line
    Force Ranges
    line

    ModelRangeStd Drive
    ETW-SP-108.8 - 88 lbf-in1/4"or 3/8", 9x12
    ETW-SP-2017.7 - 177 lbf-in1/4"or 3/8", 9x12
    ETW-SP-5044.2 - 442 lbf-in1/4"or 3/8", 9x12
    ETW-SP-1007.4 - 74 lbf-ft1/4"or 3/8", 9x12
    ETW-SP-20015 - 150 lbf-ft1/2", 14x18
    ETW-SP-34025 - 250 lbf-ft1/2", 14x18
    ETW-SP-60044.3 - 443 lbf-ft3/4", 24x32
    ETW-SP-80059 - 590 lbf-ft3/4", 24x32
    ETW-SP-100074 - 740 lbf-ft3/4", 24x32
    ETW-SP-1500110 - 1100 lbf-ft1", 27x36
    ETW-SP-2000147 - 1475 lbf-ft1", 27x36


    line
    Downloads
    line

    ETW Digital Torque Wrench - Instruction Manual

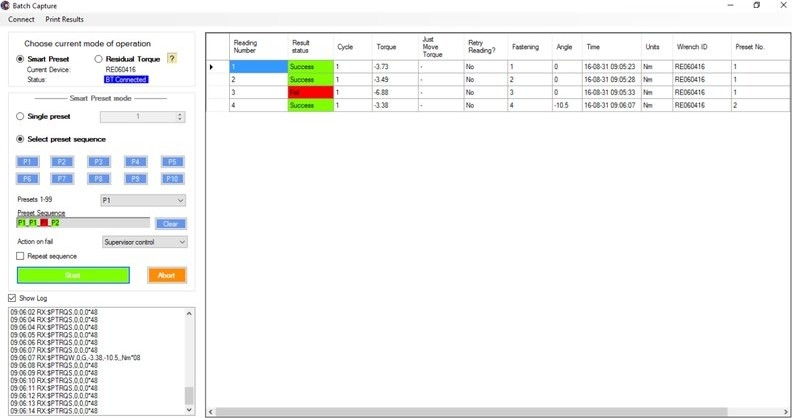

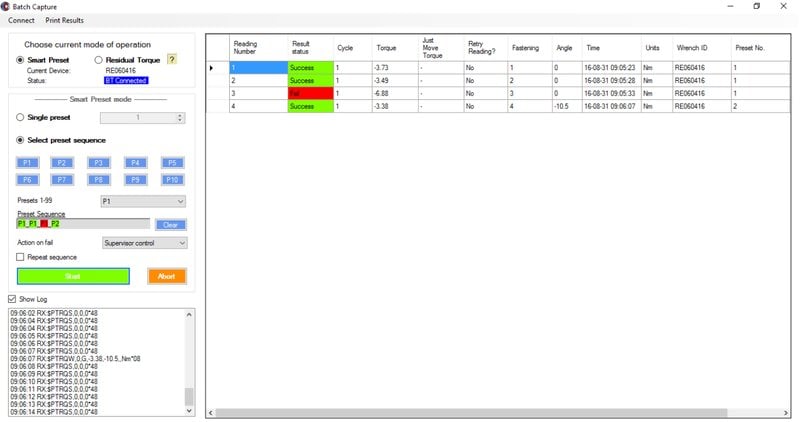

    ETW Digital Torque Wrench - Software
