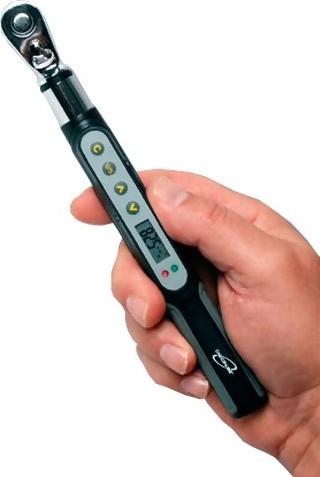

Checkline DTL Low Range Digital Torque Wrench

---

1/4" Digital Torque Wrench

---

3 Ranges, Up to 177 lb-in / 20 Nm capacity

---

Compact design for low-torque, limited access applications

---

3 Models

• DTL-50i: 53 in-lb / 4.4 lb-ft / 6 N-m / 61 kg-cm
• DTL-100i: 106 in-lb / 8.85 lb-ft / 12 N-m / 122 kg-cm
• DTL-175i: 177 in-lb / 14.75 lb-ft / 20 N-m / 204 kg-cm

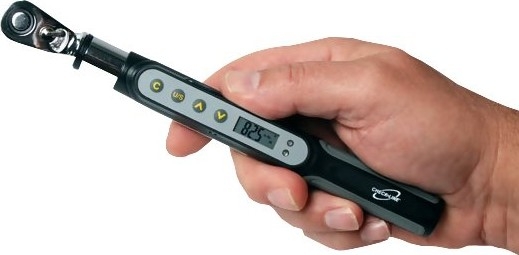

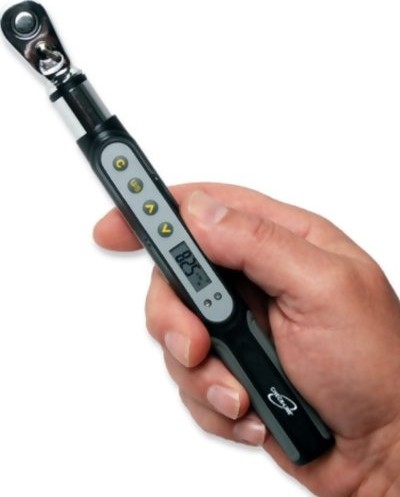

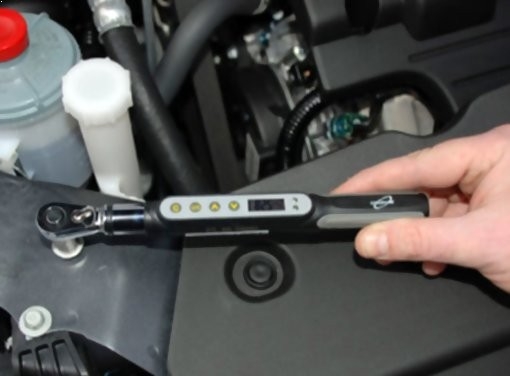

The new Check-Line DTL Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its small size and ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).

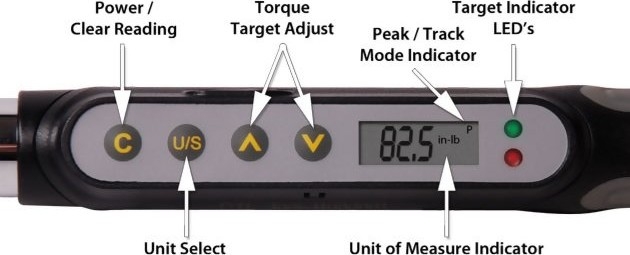

The Checkline DTL features a programmable target set point that indicates the desired torque value with a red and green LEDs and audible beep.

Kit Contents

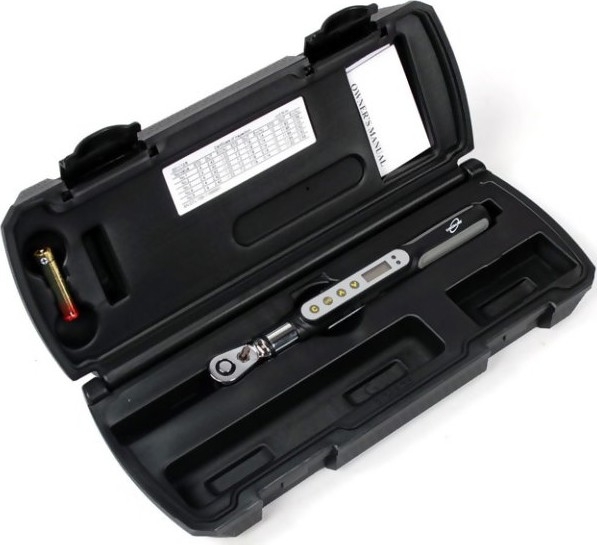

DTL Low Range Digital Torque Wrench Wrench 1 AAA battery Calibration Cert Instruction Manual Carrying Case

Features

• Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
• CW and CCW operation
• Peak or Real-Time (track) mode (User Selectable)
• Programmable Target Set-point with audible and LED indicators
• At 90% of Target, Green LED illuminates with slow audible beep
• At 100% of Target, Green & Red LEDs illuminate with continuous beep
• Ratcheting Head
• Includes Calibration Certificate (Click for sample)
• CE Certified

Specifications

Accuracy	CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity
Operation Mode	Peak hold/ Track
Unit Selection	ft-lb, in-lb, N-m, Kg-cm
Dimensions	Length: 8.25" x 1" (210 x 25.4mm)
Head Dimensions	Width: 0.75 / 19.2mm at (widest location) Height: 0.4" / 10.2mm (not including length of 1/4" drive which extends 0.31" / 8mm)

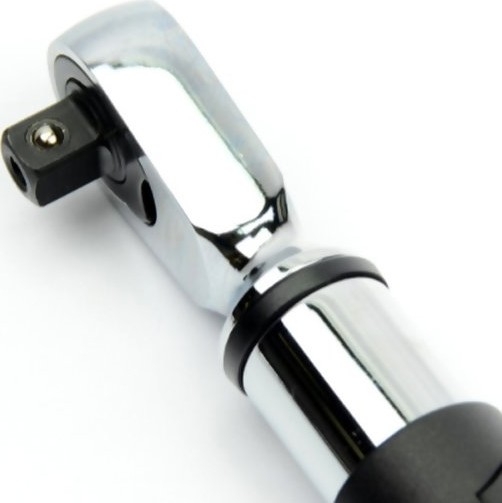

Head Type	Lever type Ratchet
Battery	1 AAA
Battery Life	12 Continuous Hours 1 Year Standby
Model Code in Manual	DME2-006CN, DME2-012CN
Operating Temperature	-10°C ~ 60°C
Zero Function	To zero the DTL-100i press the "C" key. The display will clear then it will return to the "target value" (preset)
Storage Temperature	-20°C ~ 70°C
Humidity	Up to 90% non-condensing
Warranty	1 Year

Force Ranges

Model	Measuring Range	Resolution
DTL-50i	2.6 - 53.1 Lb-in 0.3 - 6.00 Nm 0.22 - 4.4 Lb-ft 3. - 61 Kg-cm	0.01 Lb-in 0.001 Lb-ft 0.001 Nm 0.01 Kg-cm
DTL-100i	5.3 - 106.2 Lb-in 0.6 - 12.00 Nm 0.44 - 8.85 Lb-ft 6.1 - 122.4 Kg-cm	0.1 Lb-in 0.01 Lb-ft 0.01 Nm 0.1 Kg-cm
DTL-175i	8.8 - 177.0 Lb-in 1.0 - 20.00 Nm 0.74 - 14.75 Lb-ft 10.2 - 204.1 Kg-cm	0.1 Lb-in 0.01 Lb-ft 0.01 Nm 0.1 Kg-cm

Related Products

DTW Electronic Torque Wrench CW and CCW operation Buzzer and LED indicator for the pre-settable target torque

TSD Torque Screwdriver 9 Programmable Target Torque Setpoints Real time & Peak Torque Measurement

ETW Digital Torque Wrench Bi-Directional Accuracy better than 1%

Downloads

DTL-100i Low Range Digital Torque Wrench - Instruction Manual

DTL-100i Low Range Digital Torque Wrench - Calibration Certificate
