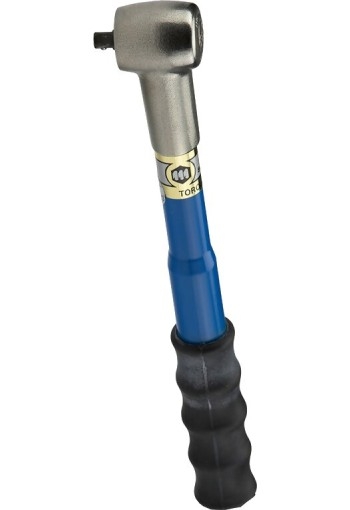

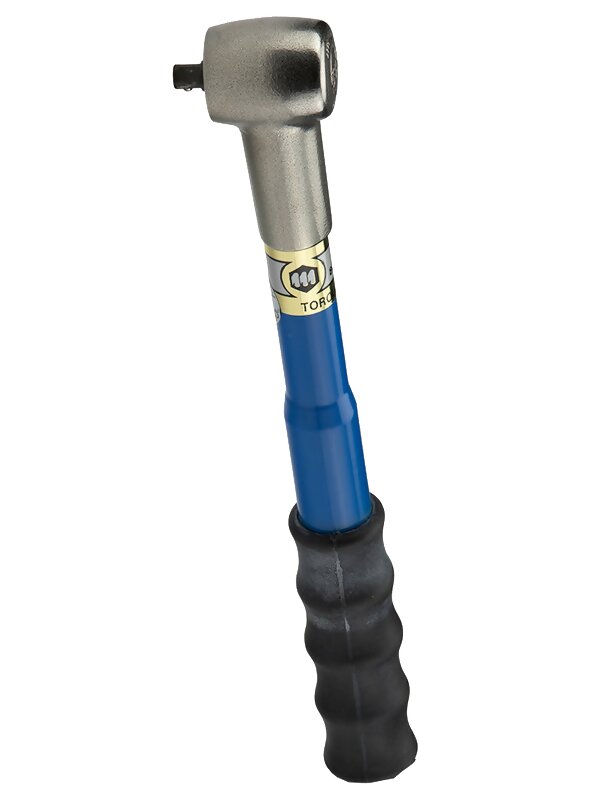

Mountz 020250 TSN25D Cam-Over Wrench 5-25 Nm / 4-18 lb-ft, 1/4" Sq. Dr. - Gedore # 011017

See More Torque Wrenches

Mountz 020250 TSN25D Cam-Over Wrench 5-25 Nm / 4-18 lb-ft, 1/4" Sq. Dr. - Gedore # 011017

See More Torque Wrenches
Price:
$1,090.77
    warrenty

    Product Description
    Mountz Gedore TSN Cam-Over Torque Wrench
    Ideal for maintenance and production applications where over-torque conditions are not tolerated
    4 Ranges up to 90 lb-ft or 125 N-m

    Mountz Gedore TSN Cam-Over Torque Wrench is a preset torque wrench that's ideal for maintenance and productionapplications where over-torque conditions are not tolerated. The use ofcam-over wrenches takes the operator influence out of the torqueequation and offers more accurate and repeatable results than a standard‘click’ type wrench.


    line
    Features
    line

    • A preset production torque wrench
    • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer
    • Fully-supported non-strip ratchet head
    • Features the new mechanical torque adjustment locking device (M-TALD). An auto locking single key operation prevents tampering
    • The wrench 'slips' free when preset torque is reached, thus eliminating overtorquing
    • Non-length dependent
    • Strong corrosion-resistant stainless steel head, protective coated handle and non-slip rubber grip
    • ESD compliant (IEC 61340-5-1:1998)


    line
    Torque Ranges
    line

    ModelRangeSq. DriveLength (in/mm)
    TSN25D3 - 25 N-m1/4"8 1/2 in / 216 mm
    TSN25A3 - 25 N-m3/8"8 1/2 in / 216 mm
    TSN5515 - 55 N-m3/8"12 3/4 in / 324 mm
    TSN12530 - 90 N-m1/2"18 1/8 in / 460 mm

    Alternative Unit Calculator- recasts values in above table (units in RED can be selected on gauge. Other units for reference only)


    line
    Downloads
    line

    Mountz TSN Cam-Over Torque Wrench - Data Sheet
    Mountz TSN Cam-Over Torque Wrench - Dimensional Drawing
    Mountz TSN Cam-Over Torque Wrench - Instruction Manual
