Mountz 215026 MTM-15 Manual Torque Multipliers, 170 - 1105 lbf-ft, 1/2" F Sq Input, 3/4" M Sq Output

See More Torque Wrenches

Mountz 215026 MTM-15 Manual Torque Multipliers, 170 - 1105 lbf-ft, 1/2" F Sq Input, 3/4" M Sq Output

See More Torque Wrenches
Price:
$908.00
    warrenty

    Product Description
    Mountz MTM Manual Torque Multipliers
    Precision tightening for heavy duty fastening connections
    Portable, compact and lightweight
    Ideal for remote locations where no source of power is available

    The Mountz MTM Manual Torque Multipliers is a low cost solution that's ideal for wheel nuts and remote locations where air and electricity aren’t easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.


    line

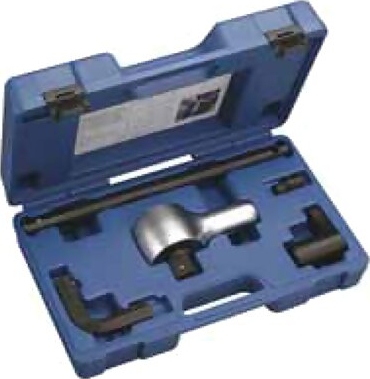

    Kit Contents
    line

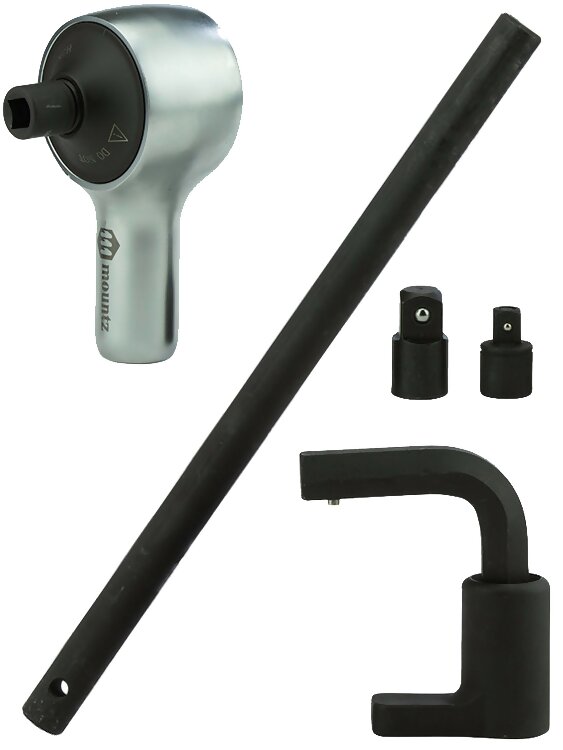

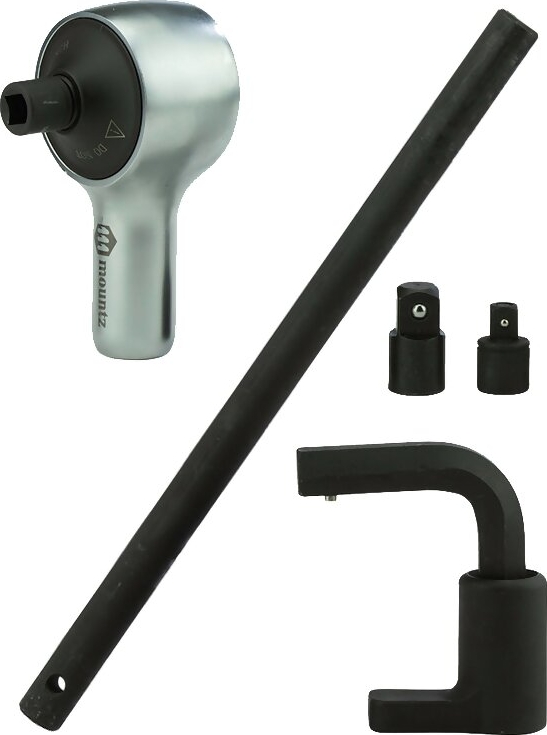

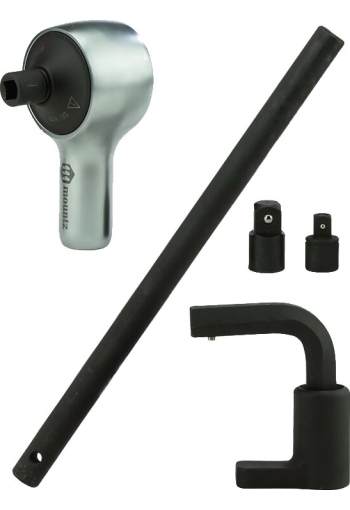

    • Mountz MTM-15 Manual Torque Multipliers
    • Reaction Bar (L = 380mm)
    • Reaction 90° Base
    • Reaction 90° Bar
    • Plastic Case

    line

    • Mountz MTM-27 Manual Torque Multipliers
    • Reaction Bar (L = 380mm)
    • Reaction 90° Base
    • Reaction 90° Bar
    • Plastic Case


    line
    Features
    line

    • Precision tightening for heavy duty fastening connections
    • Commonly used in construction, heavy equipment and power generation industries
    • Portable, compact and lightweight
    • Constructed with quality steel and matted finish
    • Torque Multiplication Ratio - low energy input with high torque output
    • For operation in combination with a torque wrench
    • Ideal for remote locations where no source of power is available
    • Accuracy better than ± 5%


    line
    Order Guide
    line

    ModelMTM-15MTM-27
    Part Number215026215027
    American170 - 1105 lbf.ft559 - 2000 lbf.ft
    S.I.231 - 1500 N.m758 - 2700 N.m
    Metric23.6 - 153 kgf.m77.3 - 275.4 kgf.m
    Torque Multiplication6.5:13.3:1
    Input Drive1/2 F/Sq3/4 F/Sq
    Output Drive3/4 M/Sq1 M/Sq


    line
    Downloads
    line

    Mountz MTM Manual Torque Multipliers - Data Sheet
    Mountz MTM-15 Manual Torque Multipliers - Instruction Manual
    Mountz MTM-27 Manual Torque Multipliers - Instruction Manual
