Mountz TBIH Break-Over Torque Wrench with Interchangeable Head

Interchangeable heads

Torque Ranges: 25 ozf.in - 50 lbf.in

The Mountz TBIH Break-Over Torque Wrench with Interchangeable Head is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with different head options like open end, box end, flare end, hex key end or a ratchet head.The slim wrench features a tamper-proof internal adjustment. When the TBIH torque wrench achieves torque, the head breaks-over signaling to the operator to stop applying torque to the fastener or bolt. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.

line
Features
line

The break-over mechanism minimizes shock to assemblies.
Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
"Breaks-over" when preset torque is reached eliminating overtorquing.

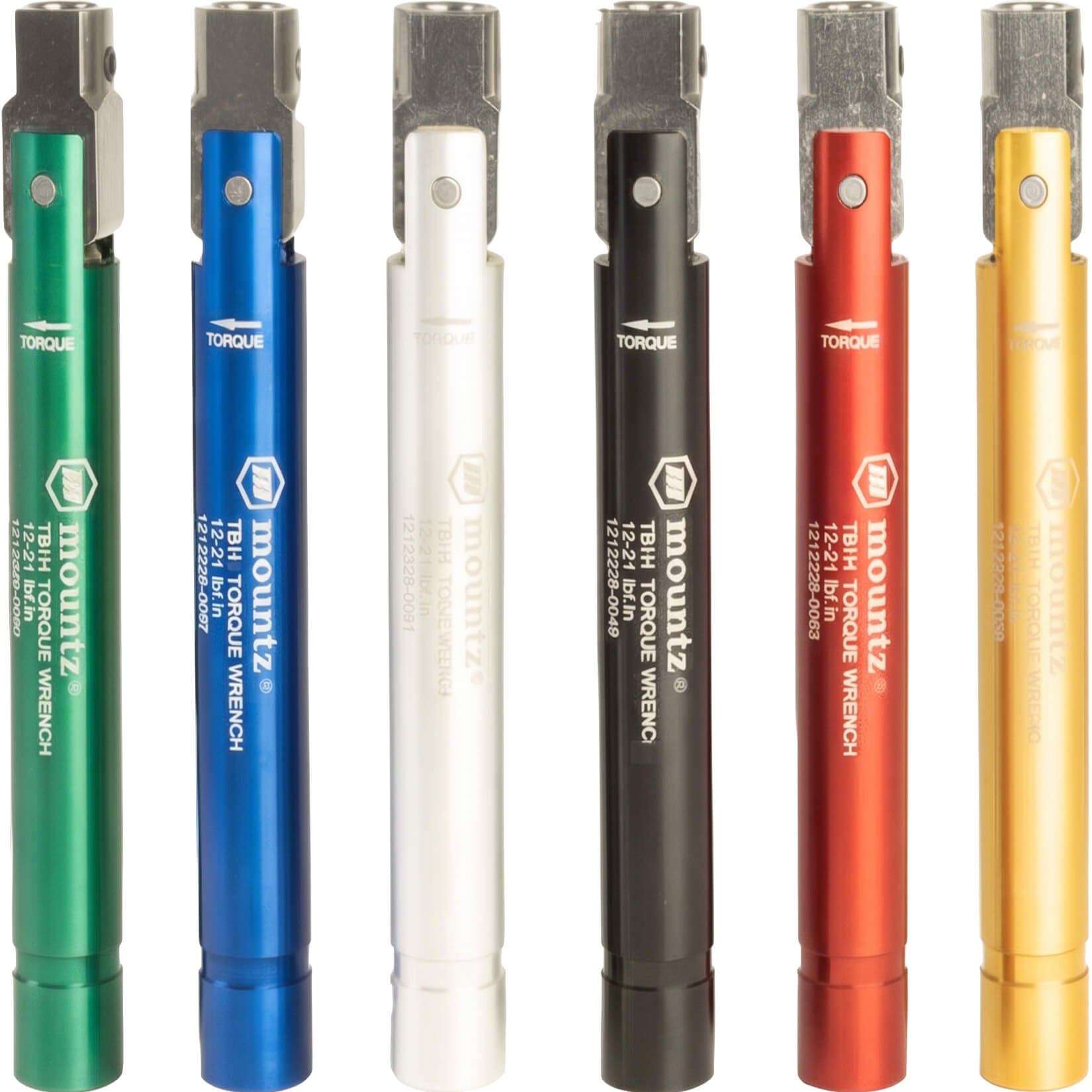

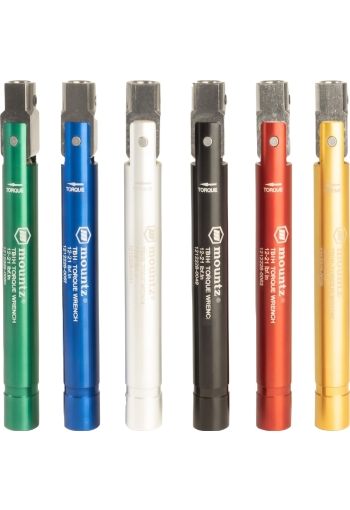

Six different colored aluminum handles allow for color-coding of specific torque values in production areas.
Small and lightweight. Ideal for use in restricted spaces.
Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.

line
Ranges
line

Torque Range	Black Handle	Blue Handle	Red Handle	Green Handle	Gold Handle	Silver Handle
25 - 50 ozf.in / 0.17 - 0.35 Nm	068000-A	068001-A	068002-A	068003-A	068004-A	067999-A
3 - 12 lbf.in / 0.34 - 1.3 Nm	068000-B	068001-B	068002-B	068003-B	068004-B	067999-B
12 - 21 lbf.in / 1.3 - 2.37 Nm	068000-C	068001-C	068002-C	068003-C	068004-C	067999-C
20 - 50 lbf.in / 2.26 - 5.65 Nm	068000-D	068001-D	068002-D	068003-D	068004-D	067999-D

line
Interchangeable Heads
line

Open End

American

Model	Size	Model	Size
068115	5/64"	068107	11/32"
068100	1/8"	068108	3/8"
068180	9/64"	068098	13/32"
068101	5/32"	068109	7/16"
068102	3/16"	068110	1/2"
068314	13/64"	068111	9/16"
068103	7/32"	068112	5/8"
068215	15/64"	068114	11/16"
068104	1/4"	068113	3/4"
068105	9/32"	068099	13/16"
068106	5/16"	068042	7/8"

Metric

Model	Size	Model	Size
068159	3 mm	068146	12 mm
068202	4 mm	068147	13 mm
068139	5 mm	068148	14 mm
068046	5.5 mm	068136	15 mm
068140	6 mm	061100%	16 mm
068160	6.5 mm	068237	17 mm
068141	7 mm	068222	18 mm
068142	8 mm	068208	19 mm
068149	8.5 mm	068199	20 mm
068143	9 mm	068138	21 mm
068144	10 mm	068209	22 mm
068145	11 mm

line

Box End

American

Model	Size	Pt Size	Model	Size	Pt Size
120	1/8"	6 pt	128	3/8"	12 pt
121	5/32"	6 pt	129	7/16"	12 pt
122	3/16"	6 pt	130	1/2"	12 pt
123	7/32"	12pt	131	9/16"	12 pt
124	1/4"	6 pt	132	5/8"	12 pt
125	9/32"	6 pt	133	11/16"	12 pt
126	5/16"	12 pt	134	3/4"	12 pt
127	11/32"	12pt

Metric

Model	Size	Pt Size	Model	Size	Pt Size
313	5 mm	6 pt	154	10 mm	12 pt
150	6 mm	12 pt	155	11 mm	12 pt
151	7 mm	12pt	156	12 mm	12 pt
152	8 mm	12 pt	157	13 mm	12pt
153	9 mm	12 pt	137	17 mm	12 pt

line

Flare End

American

Model	Size	Model	Size
188	1/4"	190	9/16"
189	5/16"	320	11/16"
187	3/8"	235	3/4"
553	7/16"	321	13/16"
198	1/2"

Metric

Model	Size	Model	Size
232	13 mm	355	17 mm
194	15 mm	298	19 mm

line

Hex Key

American

Model	Size	Model	Size
175	0.05"	167	5/32"
174	1/16"	168	3/16"
162	5/64"	169	7/32"
163	3/32"	170	1/4"
164	7/64"	171	3/8"
165	1/8"	172	7/16"
166	9/64"	173	3/4"

Metric

Model	Size	Model	Size
236	1.5 mm	184	3.5 mm
181	2 mm	185	4 mm
182	2.5 mm	186	5 mm
183	3 mm

line
Downloads
line

Mountz TBIH Break-Over Torque Wrench with Interchangeable Head - Instruction Manual

Mountz TBIH Break-Over Torque Wrench with Interchangeable Head - Data Sheet

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mountz 068000-A TBIH Wrench Handle, Black, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 068000-B TBIH Wrench Handle, Black, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 068000-C TBIH Wrench Handle, Black, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 068000-D TBIH Wrench Handle, Black, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Mountz 068001-A TBIH Wrench Handle, Blue, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 068001-B TBIH Wrench Handle, Blue, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 068001-C TBIH Wrench Handle, Blue, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 068001-D TBIH Wrench Handle, Blue, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Mountz 068002-A TBIH Wrench Handle, Red, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 068002-B TBIH Wrench Handle, Red, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 068002-C TBIH Wrench Handle, Red, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 068002-D TBIH Wrench Handle, Red, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Mountz 068003-A TBIH Wrench Handle, Green, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 068003-B TBIH Wrench Handle, Green, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 068003-C TBIH Wrench Handle, Green, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 068003-D TBIH Wrench Handle, Green, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Mountz 068004-A TBIH Wrench Handle, Gold, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 068004-B TBIH Wrench Handle, Gold, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 068004-C TBIH Wrench Handle, Gold, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 068004-D TBIH Wrench Handle, Gold, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Mountz 067999-A TBIH Wrench Handle, Silver, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm View Model Details

$171.00

Mountz 067999-B TBIH Wrench Handle, Silver, Range: 3 - 12 lbf.in / 0.34 - 1.3 Nm View Model Details

$171.00

Mountz 067999-C TBIH Wrench Handle, Silver, Range: 12 - 21 lbf.in / 1.3 - 2.37 Nm View Model Details

$171.00

Mountz 067999-D TBIH Wrench Handle, Silver, Range: 20 - 50 lbf.in / 2.26 - 5.65 Nm View Model Details

$171.00

Recommended Accessories

PRICE

PRESET-MZ Presetting of torque wrench to specific value

$78.00

060034 1/4" Hex Ratchet Head for TBIH Wrench

$198.00
