$1,101.75
    warranty 1 year
    Product Description

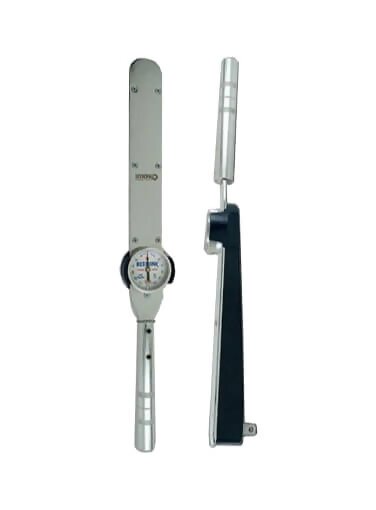

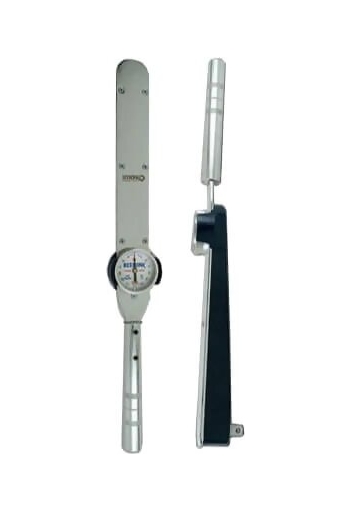

    Seekonk TS-Series Dial Torque Wrench
    Rigid Frame Dial Type Torque Wrench
    Capacities from 600 in-lbs to 600 ft-lbs
    1/4, 3/8, 1/2 or 3/4 Inch Drive

    The Seekonk TS Series dial torque wrenches are designed for precision torque measurement and application. Built with chrome plated high alloy steel, TS series wrenches are rugged and durable. These tools feature a torsional bar system manufactured from a special molybdenum alloy steel that is electronically heat treated to exacting standards. Mated to these exclusive torsional elements are precision Swiss made dial indicators resulting in uncompromised accuracy, even after years of service. Seekonk TS Series dials are uncomplicated and simple to read thereby eliminating errors so common in other brands.

    Standard accuracy is +/- 3% of indicated value

    Conforms to Federal Specification GGG-W-00686C.

    All tools are manufactured in the USA and are shipped with complementary NIST certs.

    Kit Contents


    • Seekonk TS-Series Dial Torque Wrench
    • Calibration Certificate
    • Carrying Case

    Features


    • Made in the USA
    • Includes calibration certificate
    • Can provide Dual Scale English/Metric units as an option (Ft-lbs/N-m)

    Specifications


    Accuracy± 3% of indicated value

    Force Ranges


    ModelTorque RangeDial Grad.Drive SizeOverall LengthWeight
    TSQ-300 - 30 in-lbs0.5 in-lbs1/4"10.0"0.75 lbs
    TSQ-750 - 75 in-lbs1 in-lbs1/4"10.0"0.75 lbs
    TSQ-1000 - 100 in-lbs2 in-lbs3/8"10.0"0.75 lbs
    TSQ-1500 - 150 in-lbs2.5 in-lbs3/8"10.0"0.75 lbs
    TSQ-3000 - 300 in-lbs5 in-lbs3/8"12.5"1.25 lbs
    TSQ-6000 - 600 in-lbs10 in-lbs3/8"12.5"1.25 lbs
    TSF-250 - 25 ft-lbs0.5 ft-lbs3/8"12.5"1.25 lbs
    TSF-50-3/80 - 50 ft-lbs1 ft-lbs3/8"12.5"1.25 lbs
    TSF-50-1/20 - 50 ft-lbs1 ft-lbs1/2"12.5"1.25 lbs
    TSF-1000 - 100 ft-lbs2 ft-lbs1/2"18.5"2.50 lbs
    TSF-1500 - 150 ft-lbs5 ft-lbs1/2"18.5"2.50 lbs
    TSF-1750 - 175 ft-lbs5 ft-lbs1/2"18.5"2.50 lbs
    TSF-2000 - 200 ft-lbs5 ft-lbs1/2"18.5"2.50 lbs
    TSF-250-1/20 - 250 ft-lbs5 ft-lbs1/2"21.0"2.50 lbs
    TSF-250-3/40 - 250 ft-lbs5 ft-lbs3/4"23.0"6.50 lbs
    TSF-3000 - 300 ft-lbs10 ft-lbs3/4"30.0"6.50 lbs
    TSF-3500 - 350 ft-lbs10 ft-lbs3/4"30.0"6.50 lbs
    TSF-4200 - 420 ft-lbs10 ft-lbs3/4"40.0"9.00 lbs
    TSF-6000 - 600 ft-lbs20 ft-lbs3/4"40.0"9.00 lbs

    NOTE: INLINE RATCHET available on TSF-250-3/4, TSF-300, TSF-350, TSF-420 and, TSF-600
