Product Description

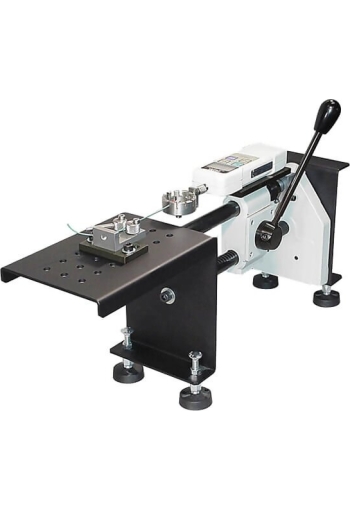

Imada WTT-HD Heavy-Duty Wire Terminal Tester Pull Tester
Range: 0-220 lbs / 0-100 Kg / 0-1000N
Measures in "Continuous" or "Peak" mode

The Imada WTT-HD wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests up to 220lbs / 50Kg / 500N. The system includes test stand and DS2-220 force gauge.

The WG-3 multi wire terminal grip has 12 wire gauge apertures on the turret. Locate the appropriate size, lock in position and you’re ready to test.


line
Kit Contents
line

  • WTT-HD Heavy Duty Wire Terminal Tester
  • Test Stand: NLH-220
  • Force Gauge: DS2-220
  • Slotted Terminal Grip: WG-3
  • Cam Cable Grip: WG-300


line
Features
line

  • Real time and peak mode (selectable)
  • 220lb Capacity
  • Includes NIST-Traceable calibration certificate
  • lb, kg & Newton units are selectable
  • 2 Year Warranty
  • For wires up to 8mm


lineSpecificationsline

Measuring Range0-100 Kg / 0-220 lbs / 0-1000N
Accuracy±0.2% ±1 LSD
Resolution0.01 Kg / 0.1 lbs / 0.1 N
Maximum Travel2"
Overload Protection200% of F.S., Display flashes beyond 105% of F.S.
OutputRS-232, Mitutoyo Digimatic and ±1 VDC analog output
PowerInternal NiCad batteries or AC adapter
Warranty2 years


line
Downloads
line

WTT-HD Heavy Duty Wire Terminal Tester - Standards
WTT-HD Heavy Duty Wire Terminal Tester - Dimensions
