Mark-10 WT3-200 Wire Terminal Pull Tester

See More Wire Terminal Pull Testers

This product has been replaced by the Mark-10 WT3-201

The WT3-200 has been replaced by the Mark-10 WT3-201 Wire Crimp Terminal Pull Tester

USB, RS-232, Mitutoyo, analog, set point outputs

1,000-point data memory and statistics

Auto output / data storage / zero upon sample break

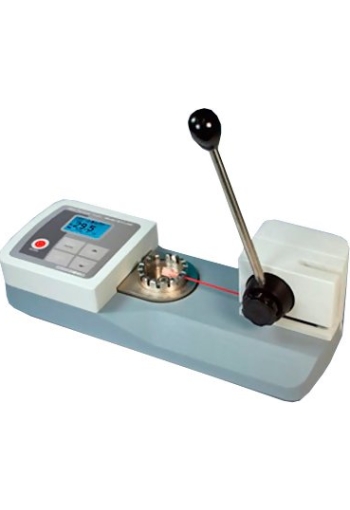

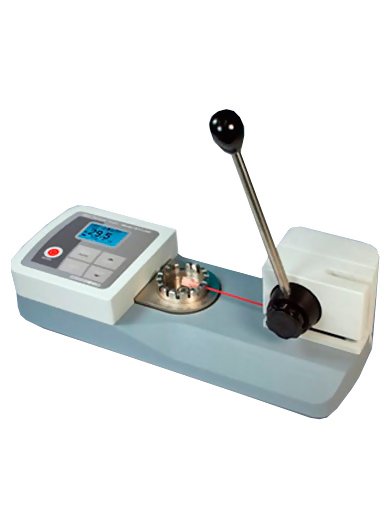

The Mark-10 WT3-200 Wire Terminal Pull Tester is designed to measure the pull-off force of wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1000 N) of pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

Part Number WT3002

line
Photo Gallery
line

line
Features
line

Measures real-time and peak force values
Ergonomic lever operation produces 200 lbF [1000 N]
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
Automatic output / data storage / zeroing upon sample break helps automate testing processes
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass / fail determination
High-speed 7,000 Hz sampling rate accurately captures peak force values
Configurable audio alarms and key tones
Mounting holes for bench mounting

line Force Ranges line

Model	Capacity	Resolution
WT3-200	200 lbF 3200 ozF 100 kgF 1000 N 1 kN	0.1 lbF 2 ozF 0.05 kgF 0.5 N 0.005 kN

line Dimensions line

dimensions

line Specifications line

Accuracy	±0.2% of full scale
Wire diameter range	AWG30 - AWG 3 [0.03 - 0.25 in (0.8 - 6.3 mm)]
Minimum sample length	7.50 in [191.0 mm], excluding termination
Maximum sample elongation	1.15 in [29.2 mm]
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling rate	7,000 Hz
Outputs	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1 VCD, ±0.25% of full scale at capacity.
Configurable Settings	Digital filters, outputs, automatic shutoff, default settings, passwords, key tones, audio alarms, backlight, calibration
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	16.0 lb [7.3 kg]
Warranty	3 years (see individual statement for further details)

line
Complete Kit
line

Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTMLite software, MESURTMgauge DEMO software, and user's guide), NIST-traceable certificate of calibration with data

complete kit
