Name: Mark-10 WT3-201 Wire Crimp Terminal Pull Tester, 200 lb / 100 Kg / 1000 N Capacity, USA Plug
Brand: Mark-10
SKU: 1251
Price: 2620.00 USD
Availability: InStock

Mark-10 WT3-201 Wire Crimp Terminal Pull Tester, 200 lb / 100 Kg / 1000 N Capacity, USA Plug

See More Wire Terminal Pull Testers

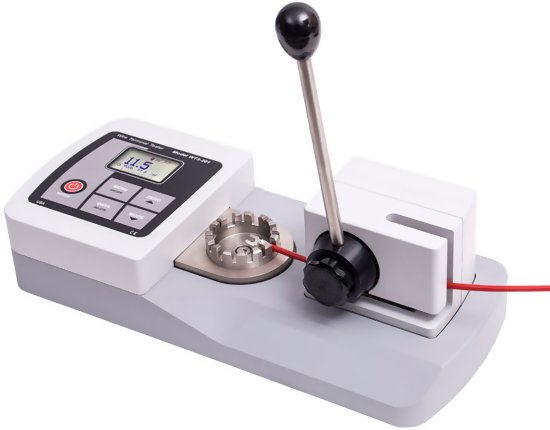

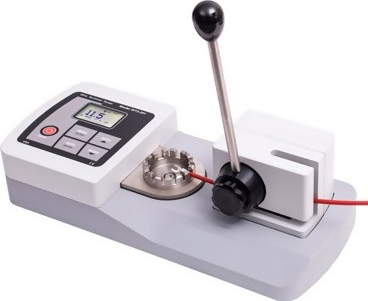

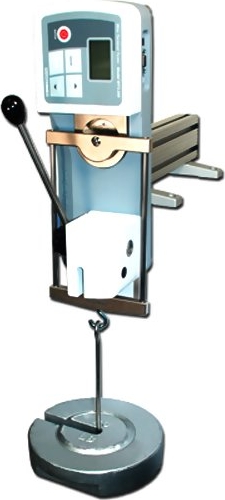

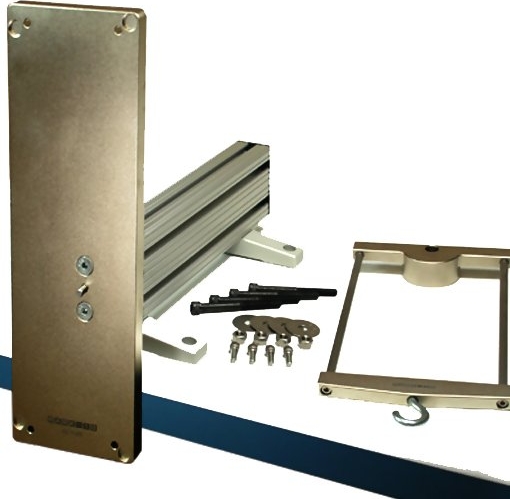

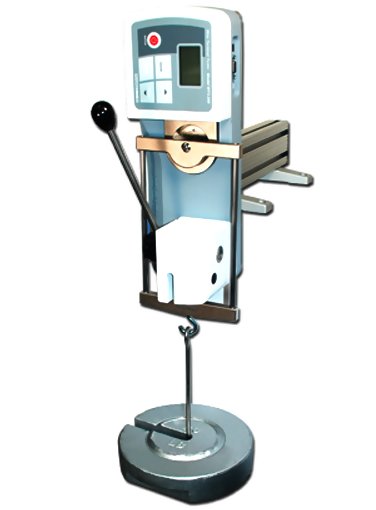

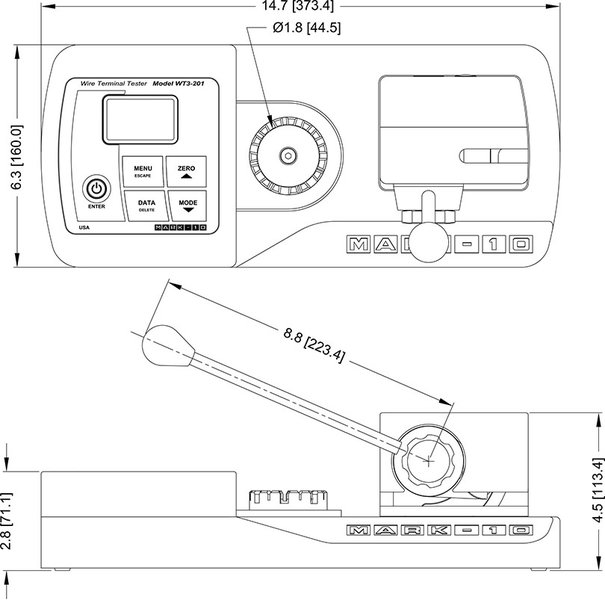

Mark-10 WT3-201 Manual Wire Crimp Pull Tester

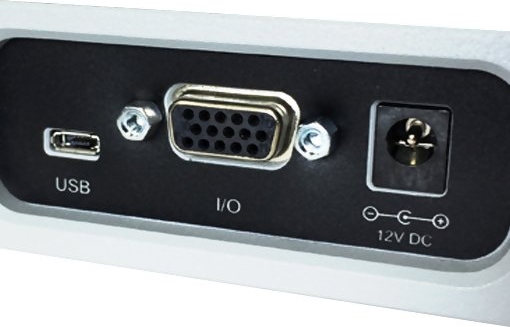

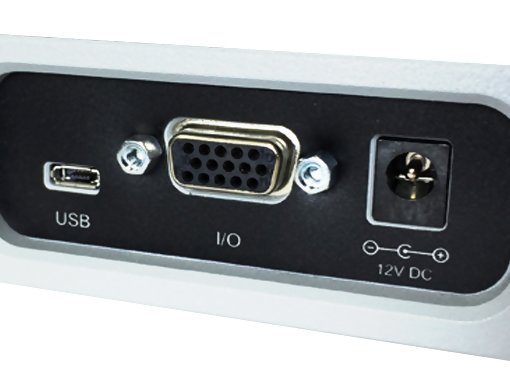

USB, RS-232, Analog outputs

200 lb, 100 kg, 1000 N Capacity

Made in the USA, 3 Year Warranty

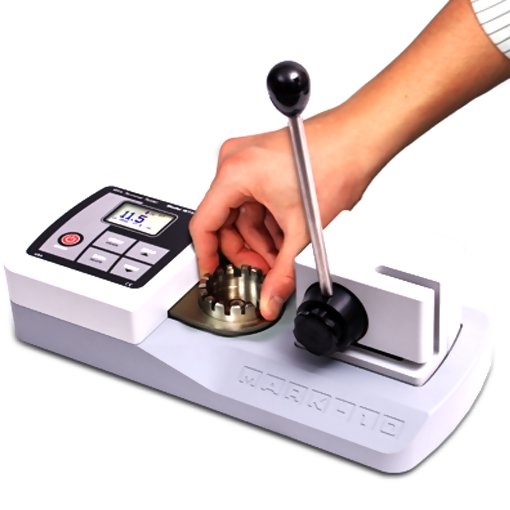

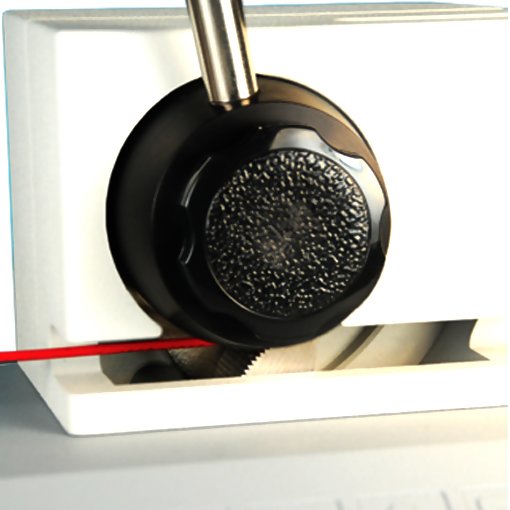

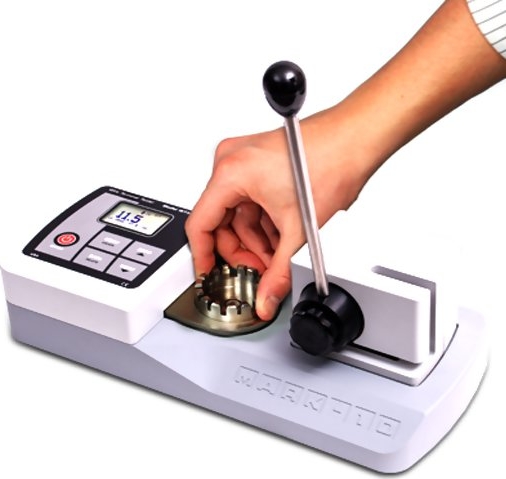

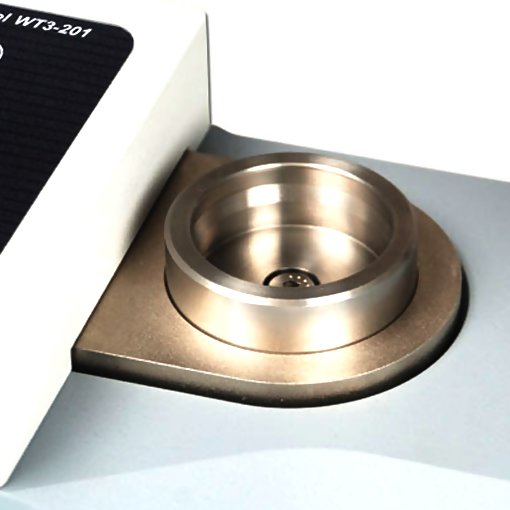

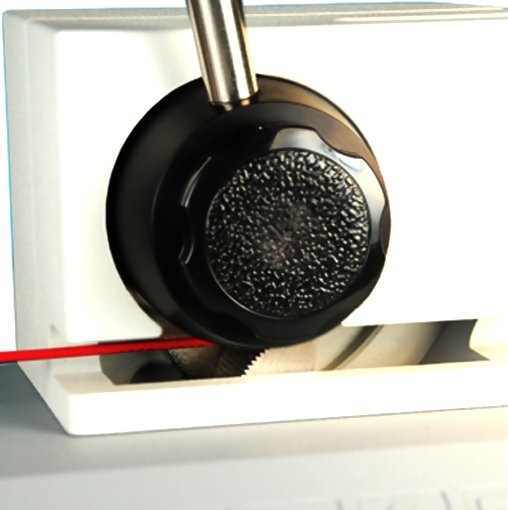

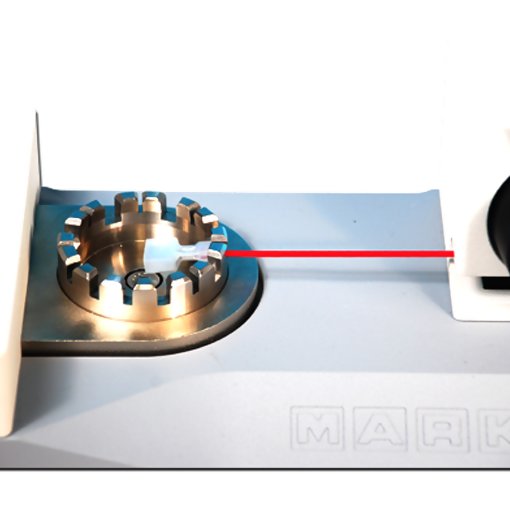

The Mark-10 WT3-201 Manual Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications, eliminating the need to purchase any additional grips, fixtures or accessories. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

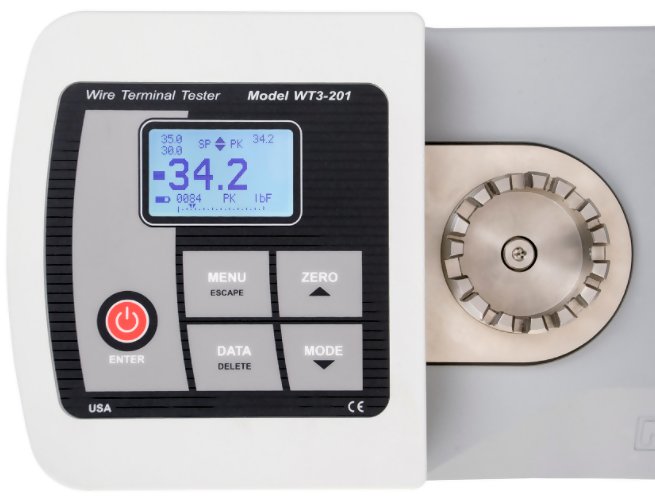

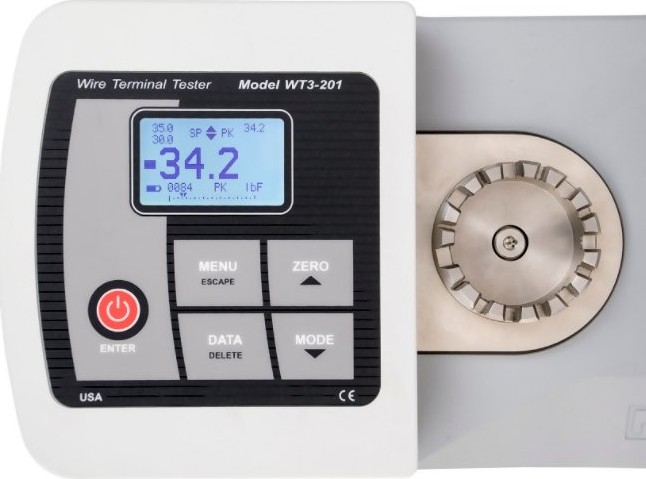

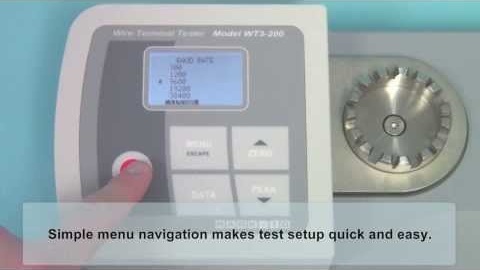

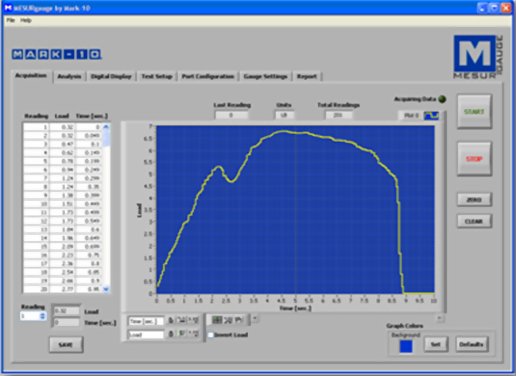

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232 or analog outputs.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

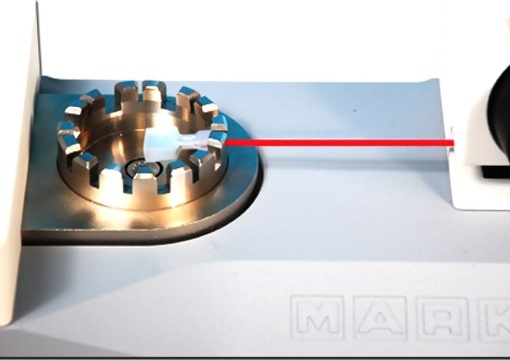

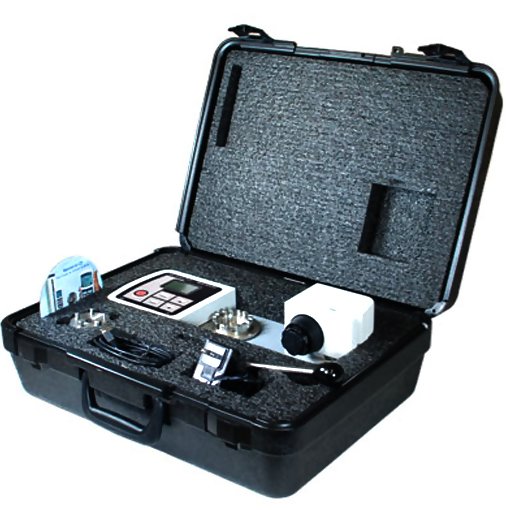

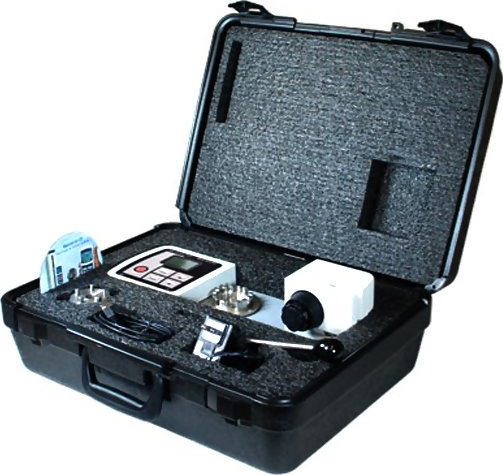

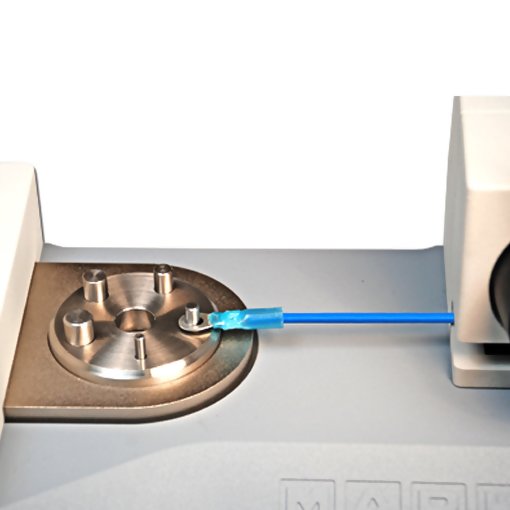

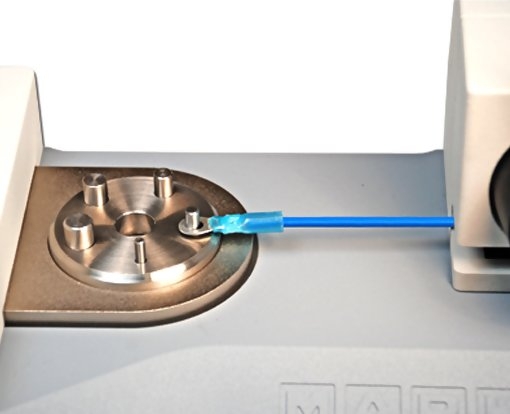

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

line
Kit Contents line

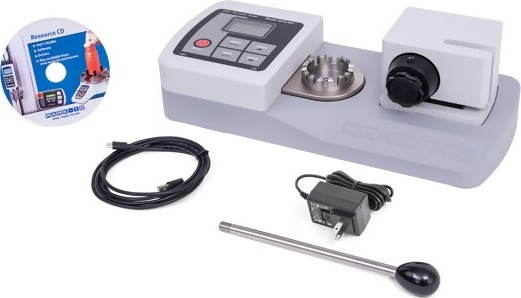

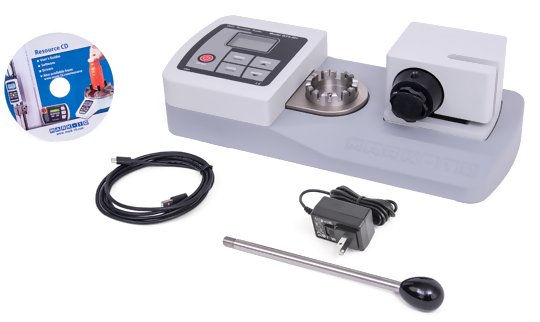

Mark-10 WT3-201 Manual Wire Crimp Pull Tester
Removable lever
USB cable
Battery
AC adapter
Certificate of calibration without data

line
Features
line

Includes NIST Traceable Calibration Certificate without data (upgrade to Long Form Cert with Data by ordering "CERT").
Automatic output / data storage / zeroing upon sample break helps automate testing processes
Measures real-time and peak force values
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
1,000-point data memory with statistics and outputs
Programmable set point indicators and outputs for pass/ fail determination
Configurable audio alarms and key tones
Ergonomic lever operation produces 200 lbF [1000 N]
Password protection prevents unauthorized changes
High-speed 7,000 Hz sampling rate accurately captures peak force values
Mounting holes for bench mounting
CE Mark

line Specifications line

Capacity x Resolution	200 x 0.1 lbF, 100 x 0.05 kgF, 1000 x 0.5 N
Accuracy	±0.2% of full scale
Wire diameter range	AWG30 - AWG 3 [0.03 - 0.25 in (0.8 - 6.3 mm)]*
Minimum sample length	6.5 in [165 mm], excluding termination
Maximum sample elongation	1.15 in [29.2 mm]
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling rate	7,000 Hz
Outputs	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1V DC, ±0.25% of full scale at capacity.
Configurable Settings	Digital filters, outputs, automatic shutoff, default settings, passwords, key tones, audio alarms, backlight, calibration
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	16.1 lb [7.3 kg]
Warranty	3 years (see individual statement for further details)
Included items	Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURLite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration without data (upgrade to Long Form Cert with Data by ordering "CERT").

*Including insulation. To ensure the wire sample will fit into the WT3-201, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
