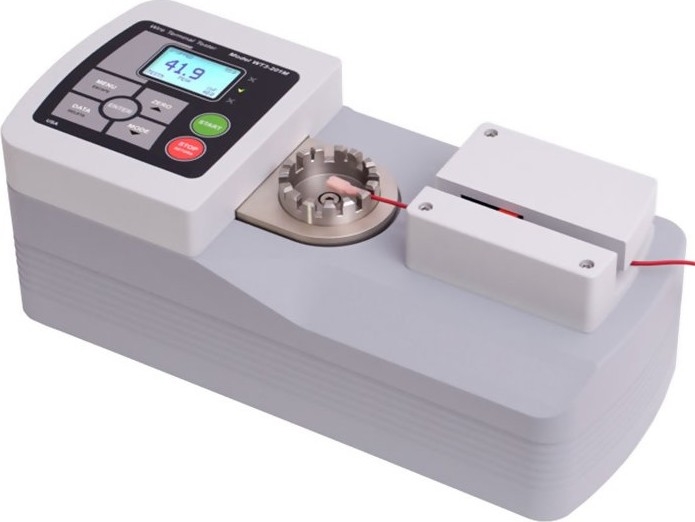

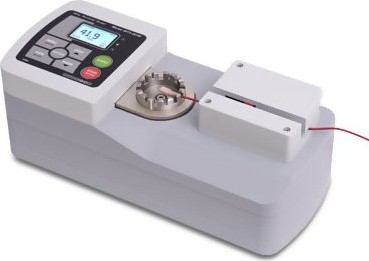

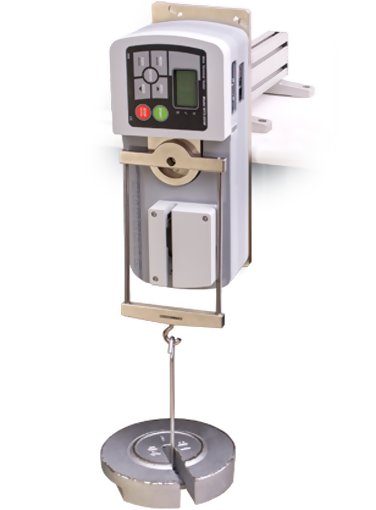

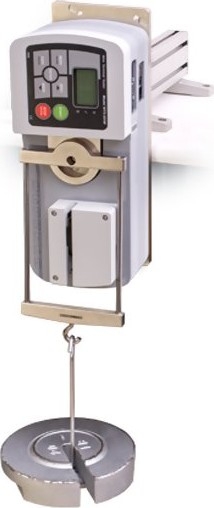

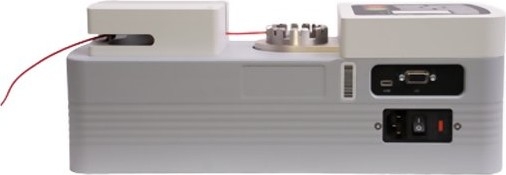

Mark-10 WT3-201M Motorized Wire Crimp Pull Tester

---

Motorized Wire Crimp Pull Tester, 200 lb / 100 kg Capacity

---

For both destructive and non-destructive testing on crimped terminals

---

Made in the USA

---

3 Year Warranty

---

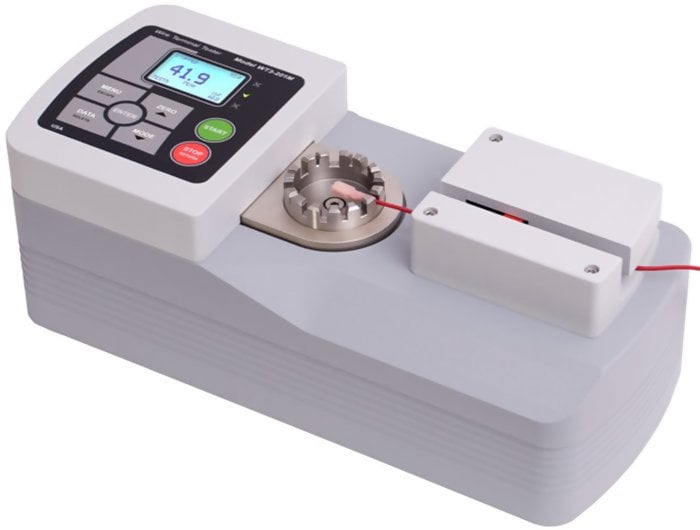

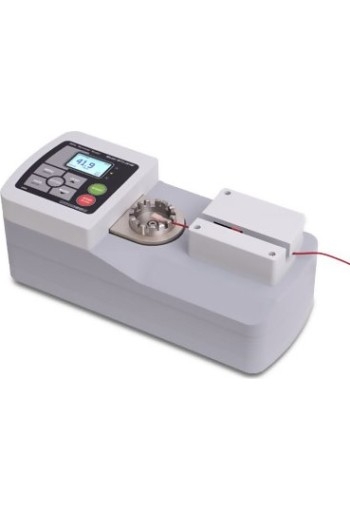

The Mark-10 WT3-201M motorized wire pull tester measures pull-off forces of up to 200 lb / 100 kg on crimped terminals. The WT3-200M tests according to UL, ISO, ASTM, SAE, MIL, and other testing standards. The WT3-200M can perform destructive or optionally Non-destructive testing, such as pulling to a load or maintaining a load for a specified period of time, as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples.

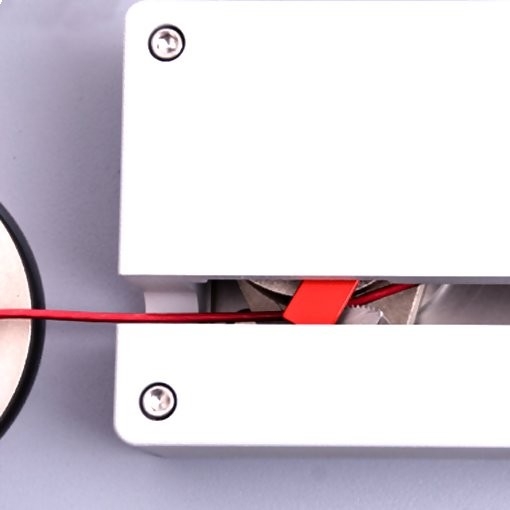

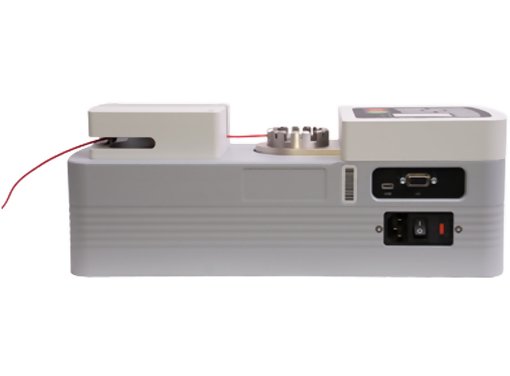

The tester accommodates wire sizes up to AWG 3 (0.25 in [6.3 mm] OD), or custom sizes via the available machinable blank fixture. Auto-start automatically begins the test when the wire sample has been loaded. When the sample breaks, the tester can auto-reverse, output the peak force, store the peak force, and zero the display automatically, thereby increasing testing throughput. Further testing efficiency is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required.

On-board data storage and statistical calculations is provided for up to 2,000 readings, with available date and time stamp for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

The WT3-201M includes MESURLite data acquisition software. MESURLite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

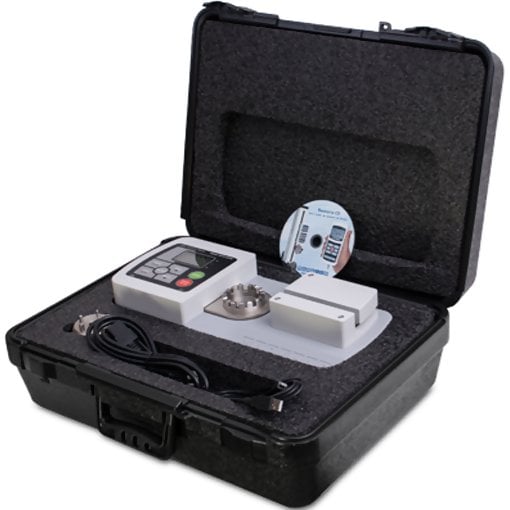

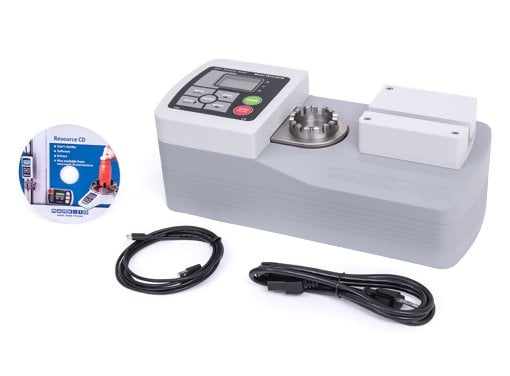

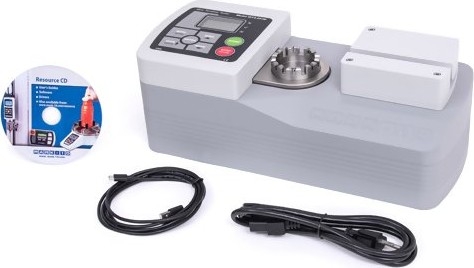

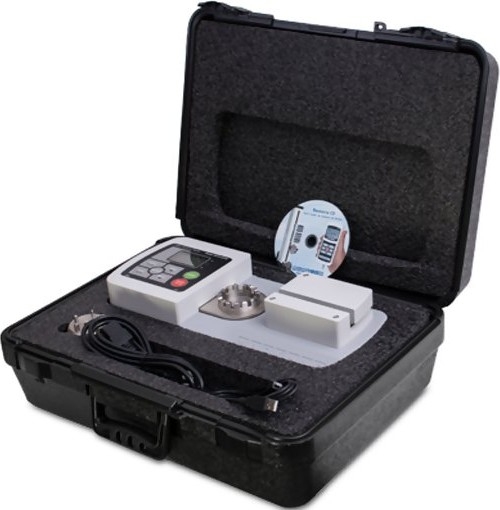

Kit Contents

Mark-10 WT3-201M Motorized Wire Crimp Pull Tester USB cable Power cord Resource CD Certificate of calibration without data

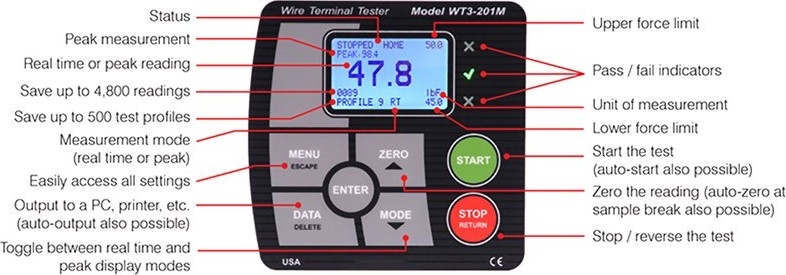

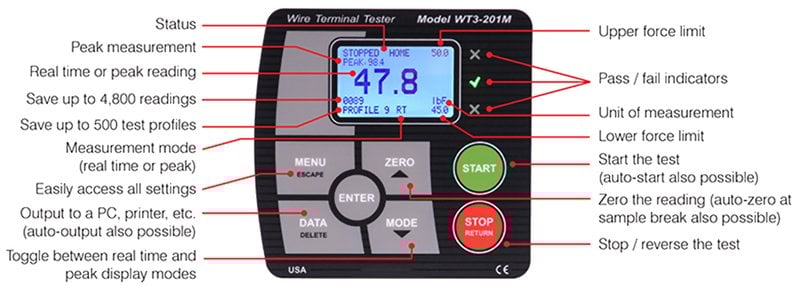

Features

• 3 Year Warranty
• Measures real-time and peak force values
• Selectable test speed, w/high speed approach and reverse

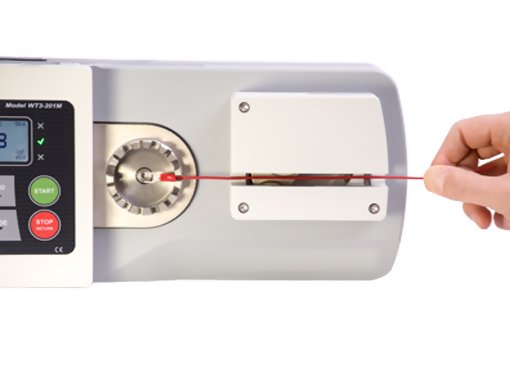

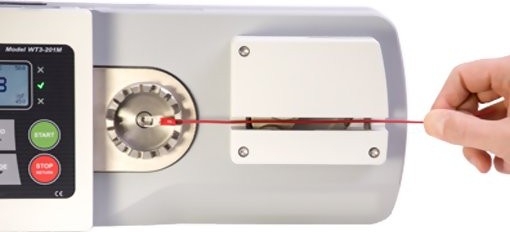

• Auto-start upon sample insertion
• Auto-reverse at sample break or load

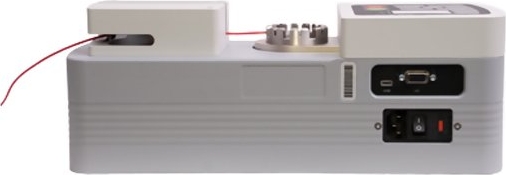

• USB, RS-232, Mitutoyo (Digimatic), and analog outputs
• Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes

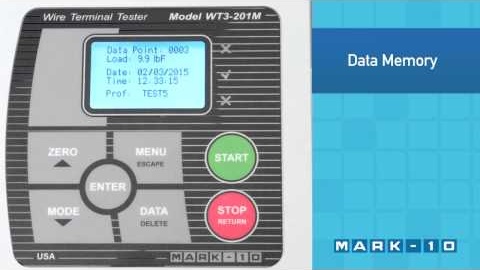

• 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
• Password protection prevents unauthorized changes

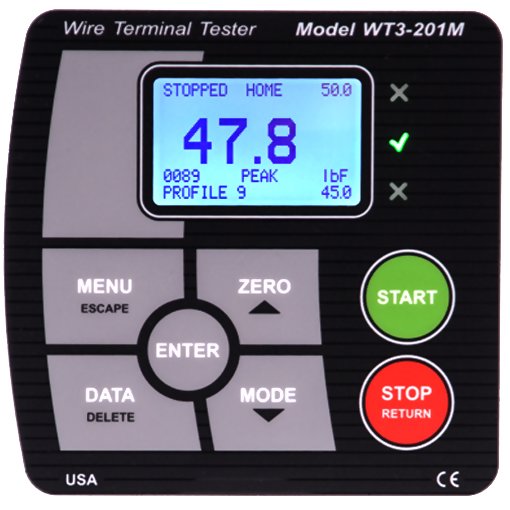

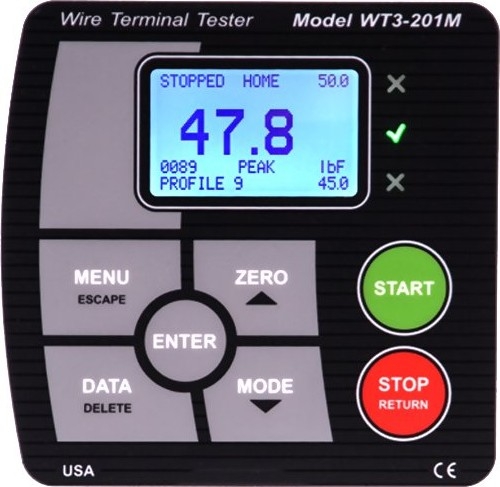

• Pass / fail indicators, audio alerts, and outputs

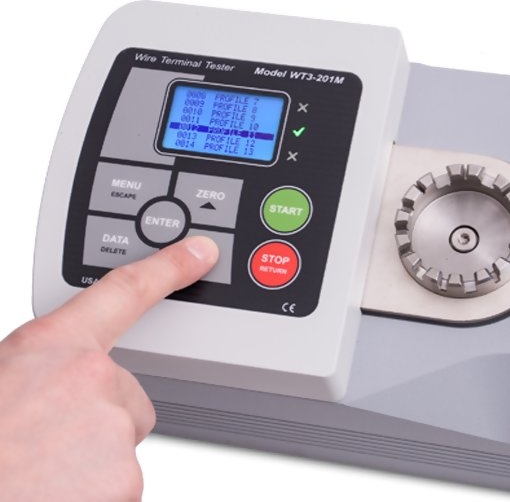

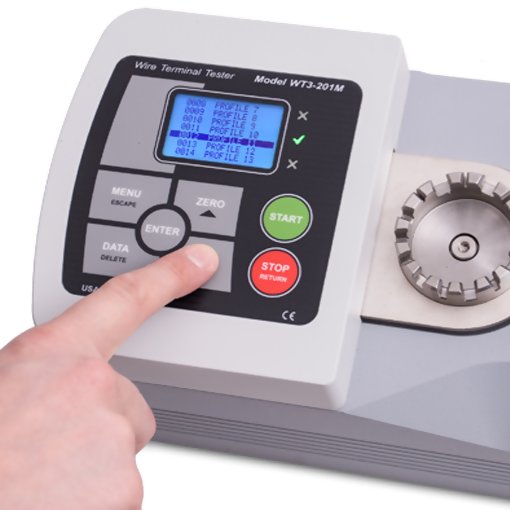

• Save and recall up to 500 profiles for various test requirements (optional function)
• Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
• Date / time stamp for all saved data (optional function)

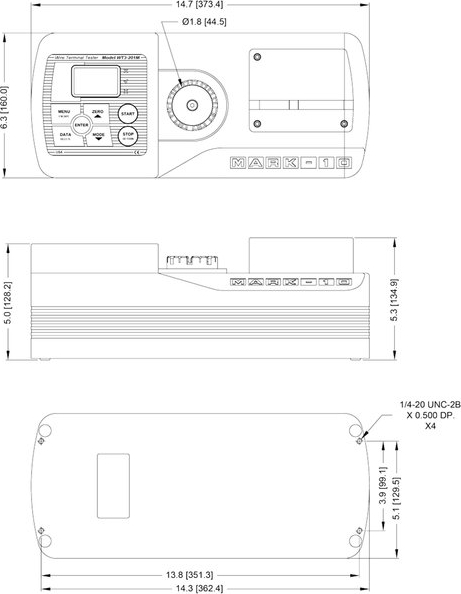

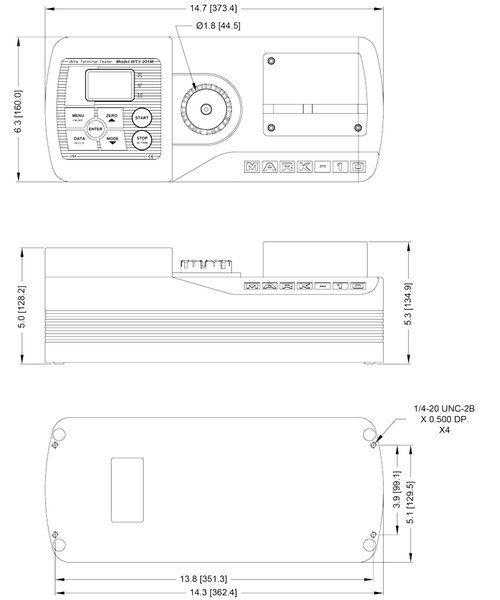

Specifications

Capacity x Resolution	200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN
Accuracy	±0.2% of full scale
Wire gauge range	AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm)]
Minimum Sample length	6.5 in [165 mm], excluding termination
Max. elongation	Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min] Approach/reverse speed: 13.0 - 96.0 in/min [325 - 2,400 mm/min]
Speed setting accuracy	±0.2%
Speed variation with load	±0% [Stepper motor driven]
Power	Universal input 80-240 VAC, 50/60 Hz
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling rate	7,000 Hz
Outputs	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC at capacity, ±0.25% of full scale. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	26.5 lb [12.0 kg]
Included items	Power cord, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration.
Environmental requirements	40 - 100°F, max. 96% humidity, non-condensating
Warranty	3 years
