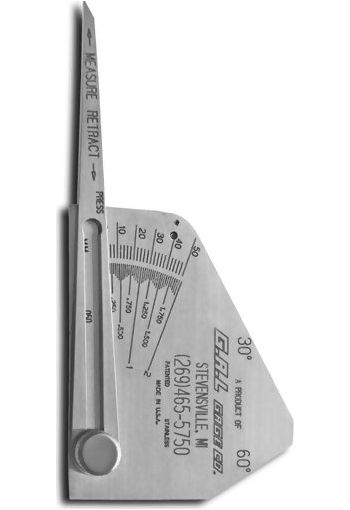

G.A.L. Gage Co. Cat # 9c Skew-T Fillet Weld Gauge with Calculator GAL-9c
Checking Angle of Vertical Member
Measurement Scale: Inch or Metric
Warranty: One Year
G.A.L. Gage Skew-T Fillet Weld Gauge
A handy compilation of mathematical relationships between leg length, throats, skew angles and inspection dimensions. A must for designers and inspectors. The perfect companion to the G.A.L. Skew-T Fillet Weld Gauge, and included with your purchase
Features
- Checking Angle of Vertical Member
- Checking Weld Acute Side
- Checking Weld Obtuse Side
