Mark-10 G1058 Universal Cap Grip

---

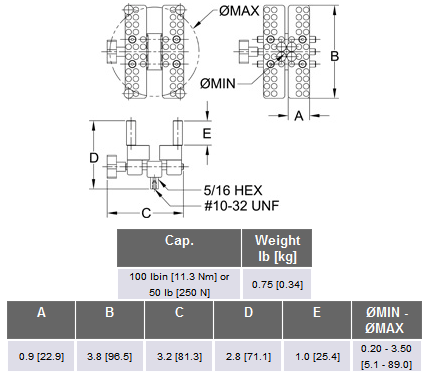

The Mark-10 G1058 Universal Cap Grip is designed to effectively secure samples for torque and pull tests. Typical applications include bottle cap torque testing, lid pull-off testing, and other tests. A matrix of threaded holes allows the serrated steel posts to be placed in positions specific to the test sample, with a broad diameter range of 0.2 - 3.5 in (5.1 - 89.0 mm).

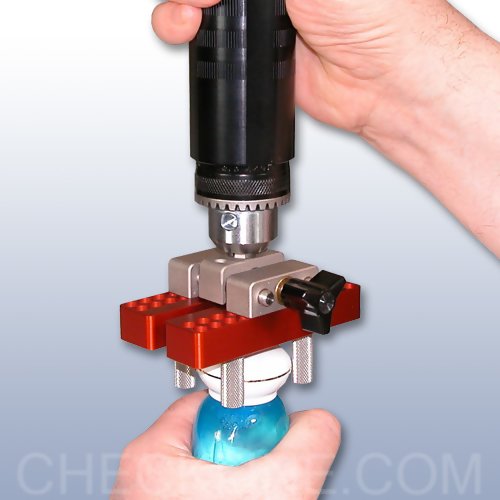

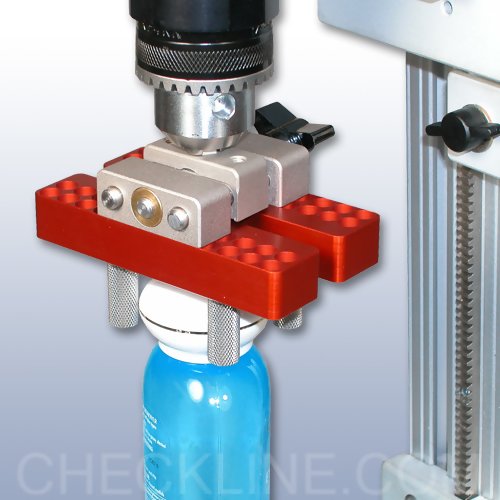

For torque applications, the Mark-10 G1058 Universal Cap Grip can be used either manually with an STJ torque sensor or MGT torque gauge, or in test stand controlled applications. A typical torque test stand-based application will also typically require our G1023 bottle grip. For force applications, the grip can be mounted to a force gauge or test stand.

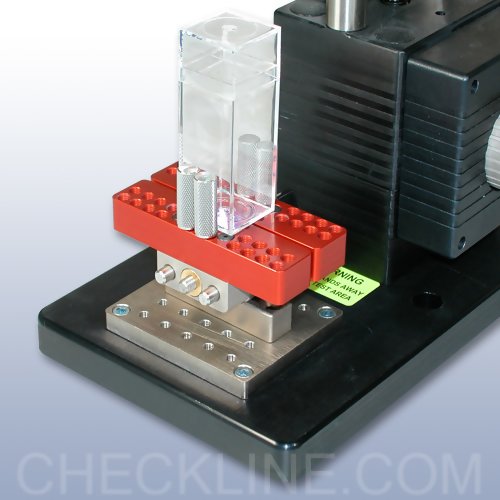

The grip has a hex tail with internal thread to permit use in a chuck or for mounting to a force gauge or force test stand. An optional adapter is available to more securely mount the G1058 grip to the base of a force test stand.
